Engine Control Module Power Source Circuit: Celica

For engine control module power source circuit inspection, see Fig 1-Fig 4 .

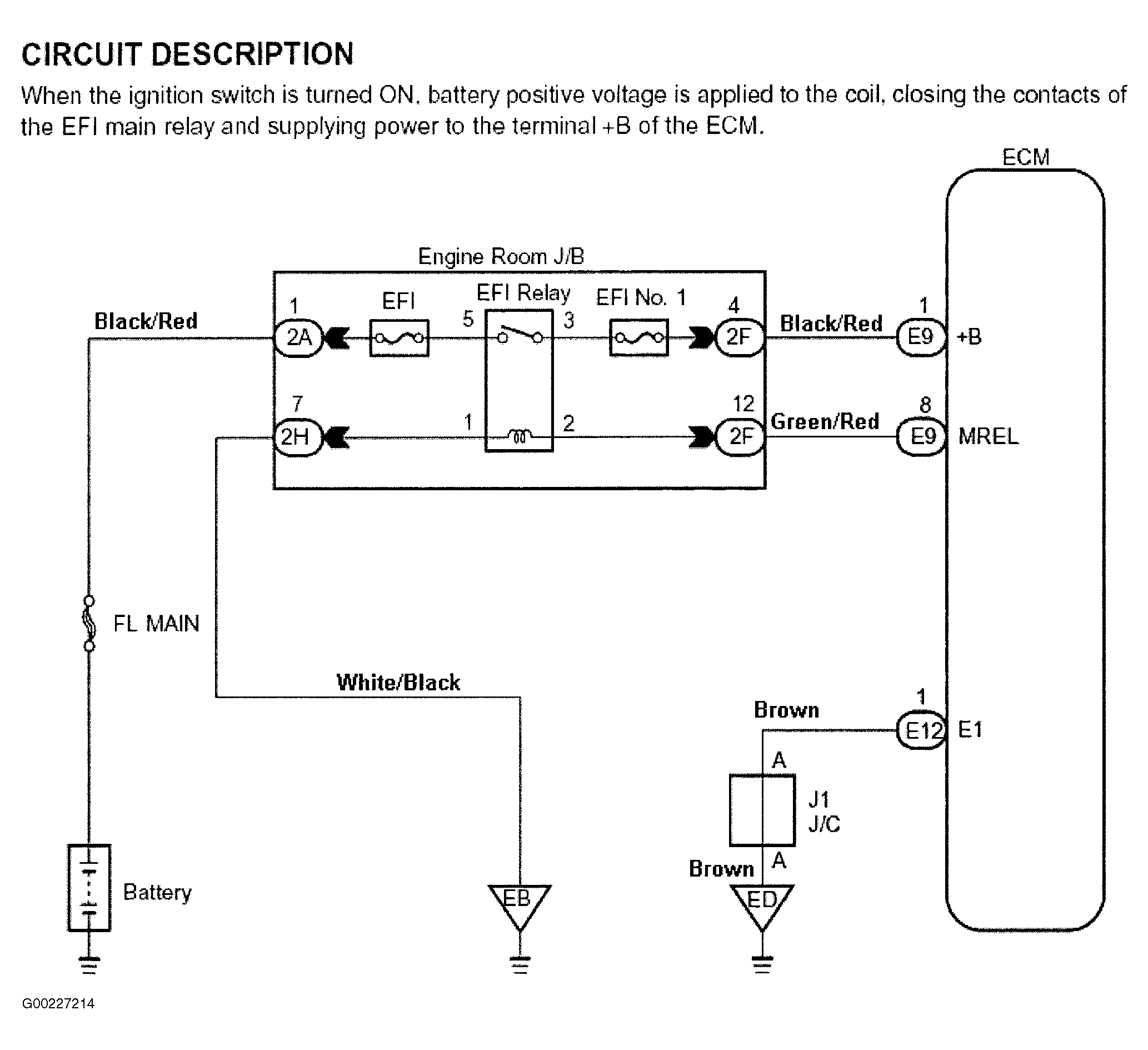

Fig 1: Engine Control Module Power Source Circuit Description & Diagram (Celica)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

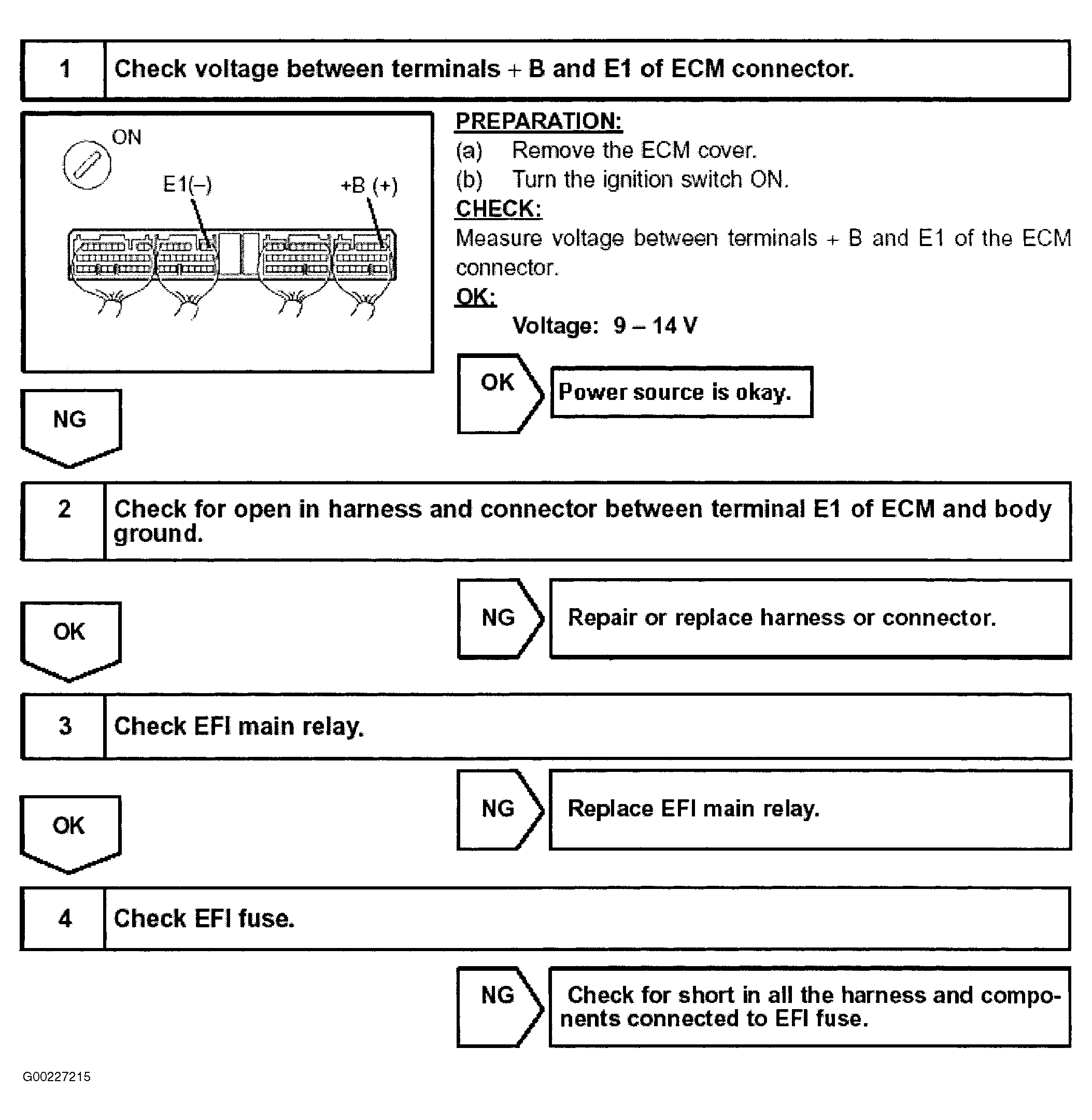

Fig 2: Engine Control Module Power Source Circuit Inspection - Steps 1-4 (Celica)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

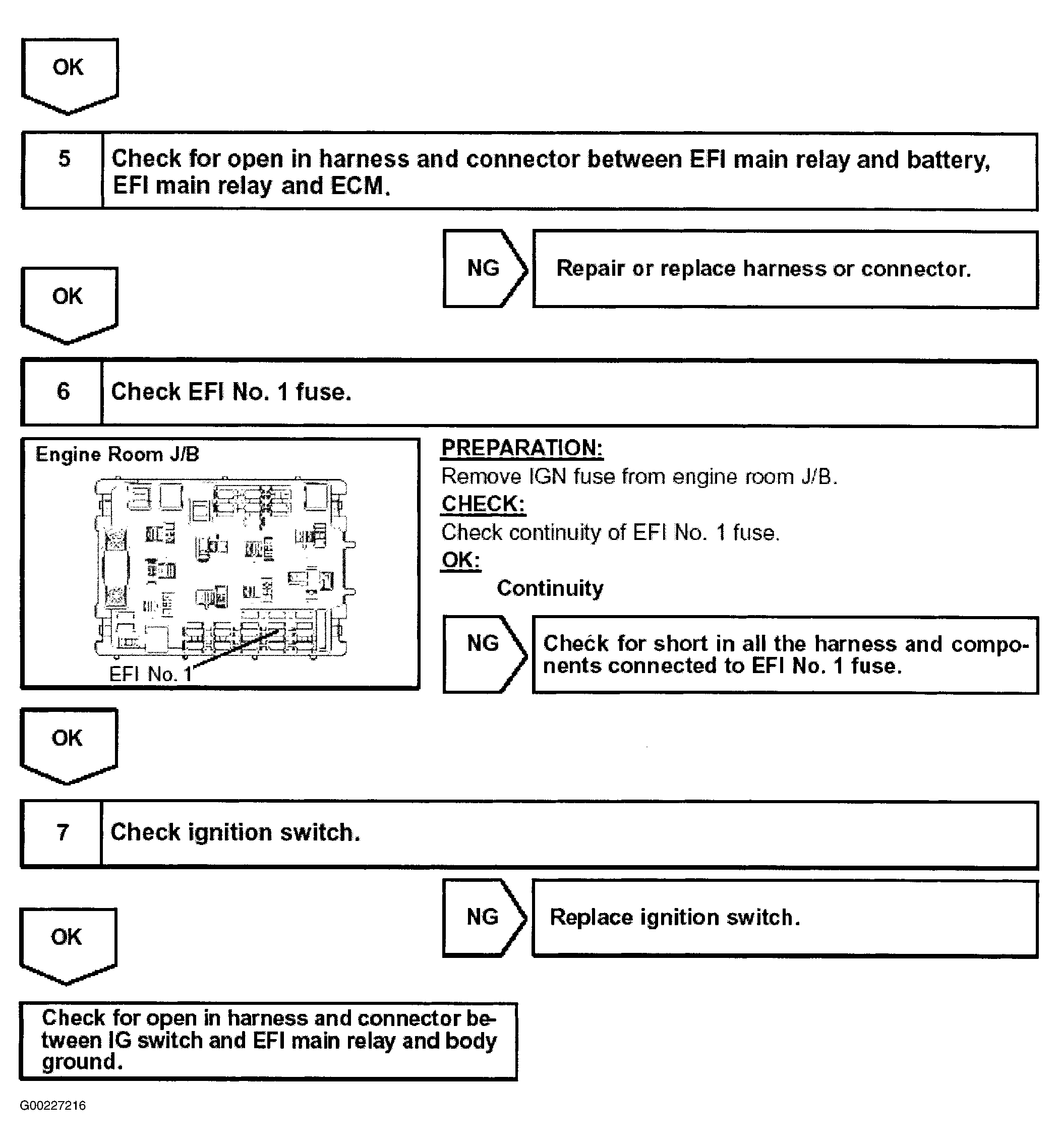

Fig 3: Engine Control Module Power Source Circuit Inspection - Steps 5-7 (Celica)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

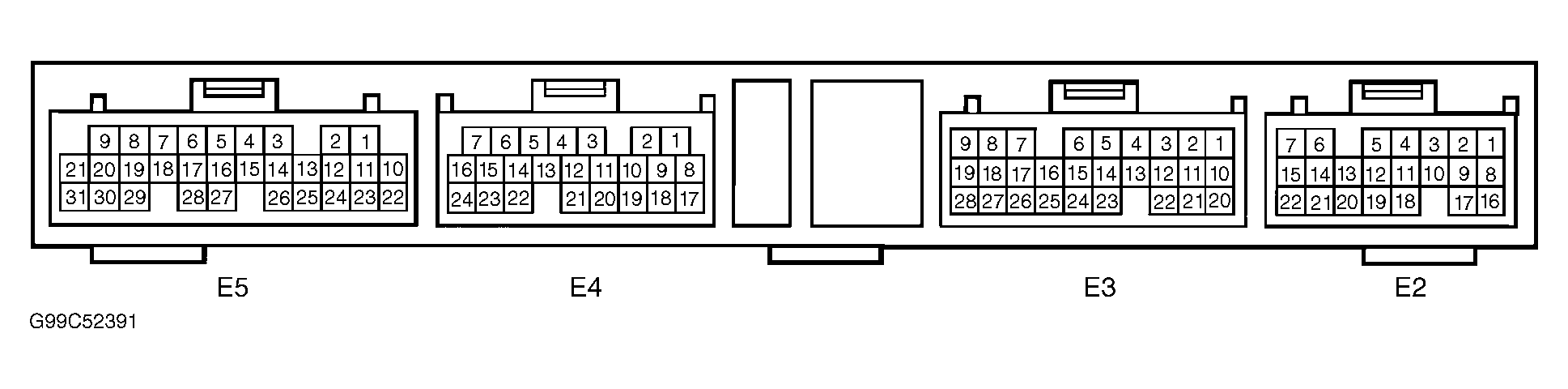

Fig 4: Identifying Engine Control Module Electrical Connector Terminals (Celica)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
