Passive Arming On/Off Selection, Entry Delay Time Selection
Passive Arming On/Off Selection, Entry Delay Time Selection

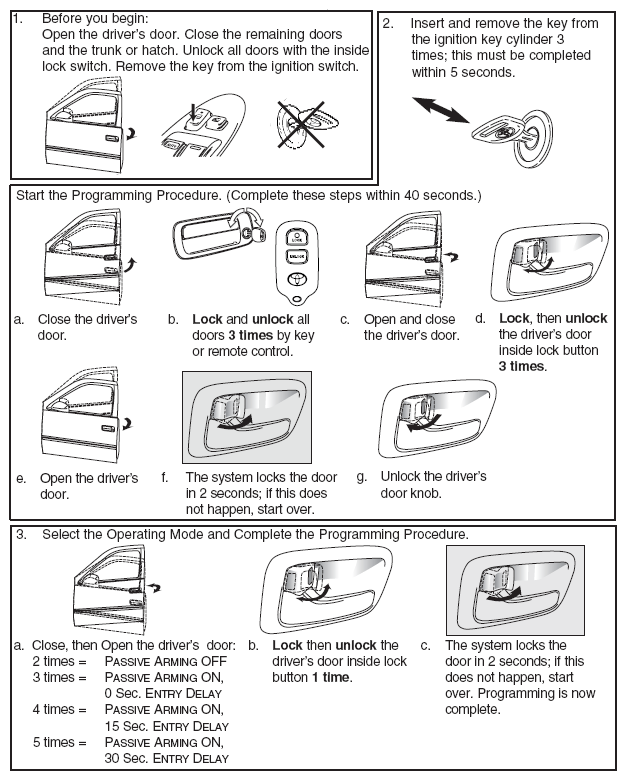

Fig 1: Identifying Programming Procedure
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
