Windshield Glass: Components

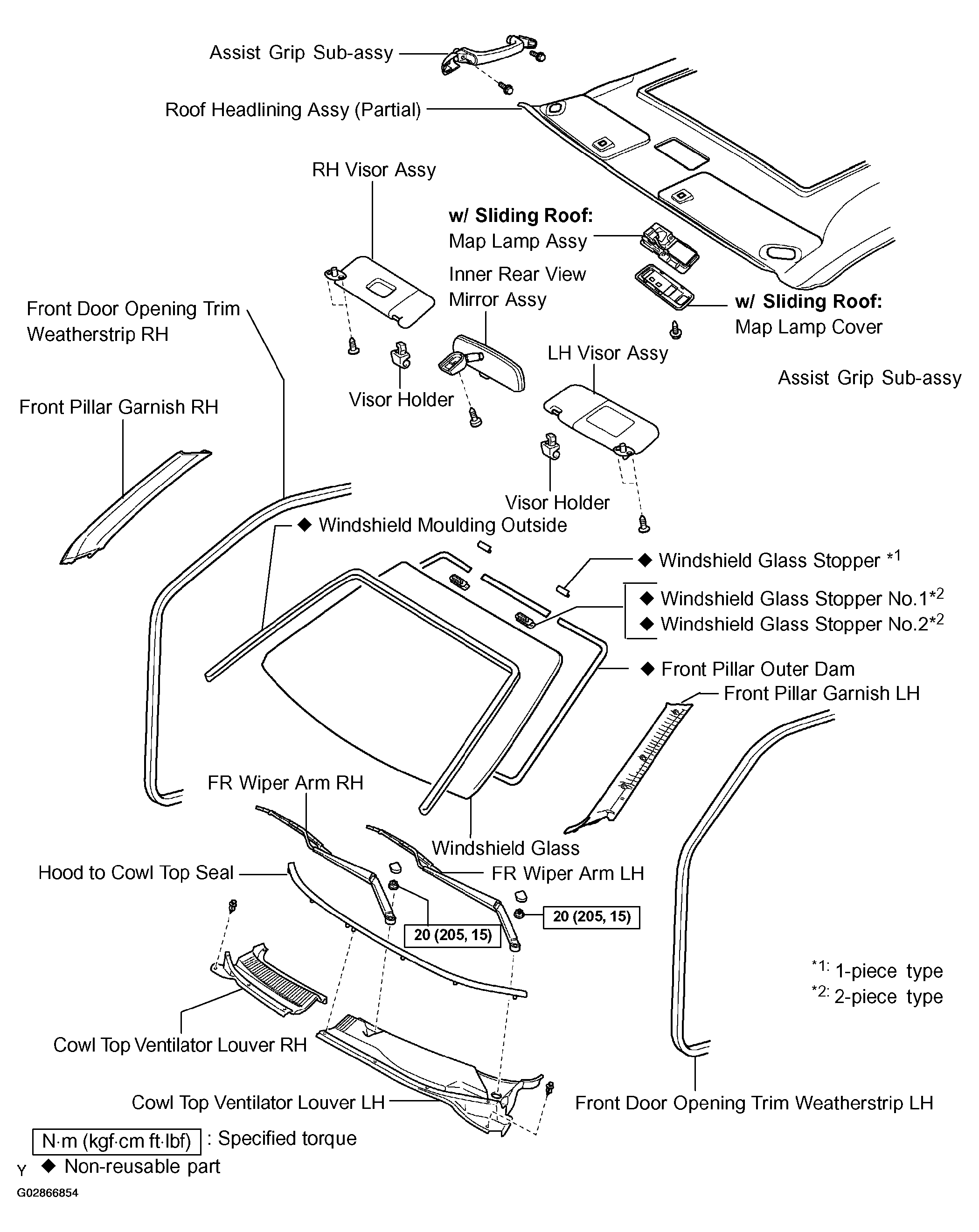

Fig 1: Identifying Windshield Glass Components

G02866854

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
