Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Engine Compartment (Except XRS)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

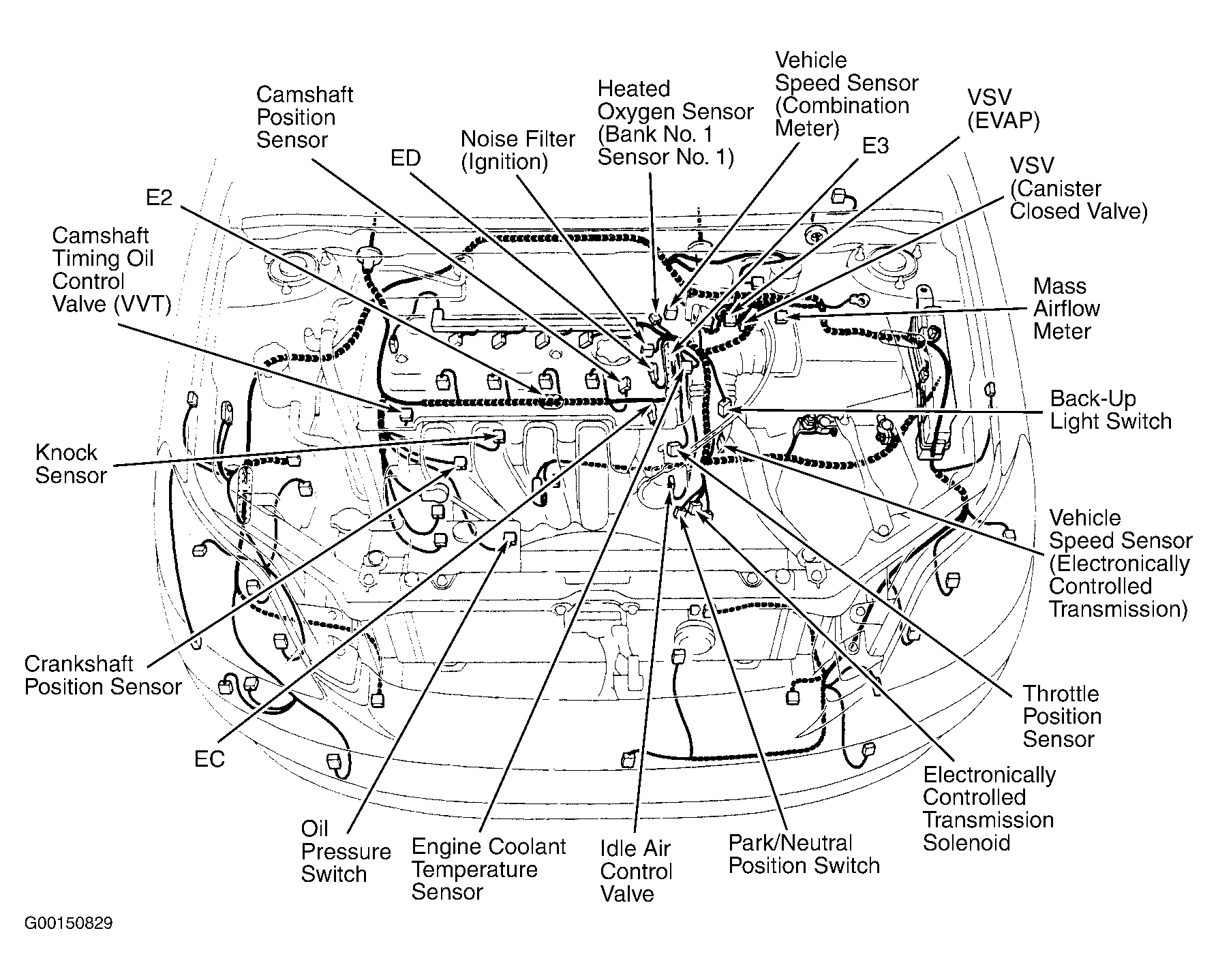

Fig 2: Engine Compartment (XRS)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

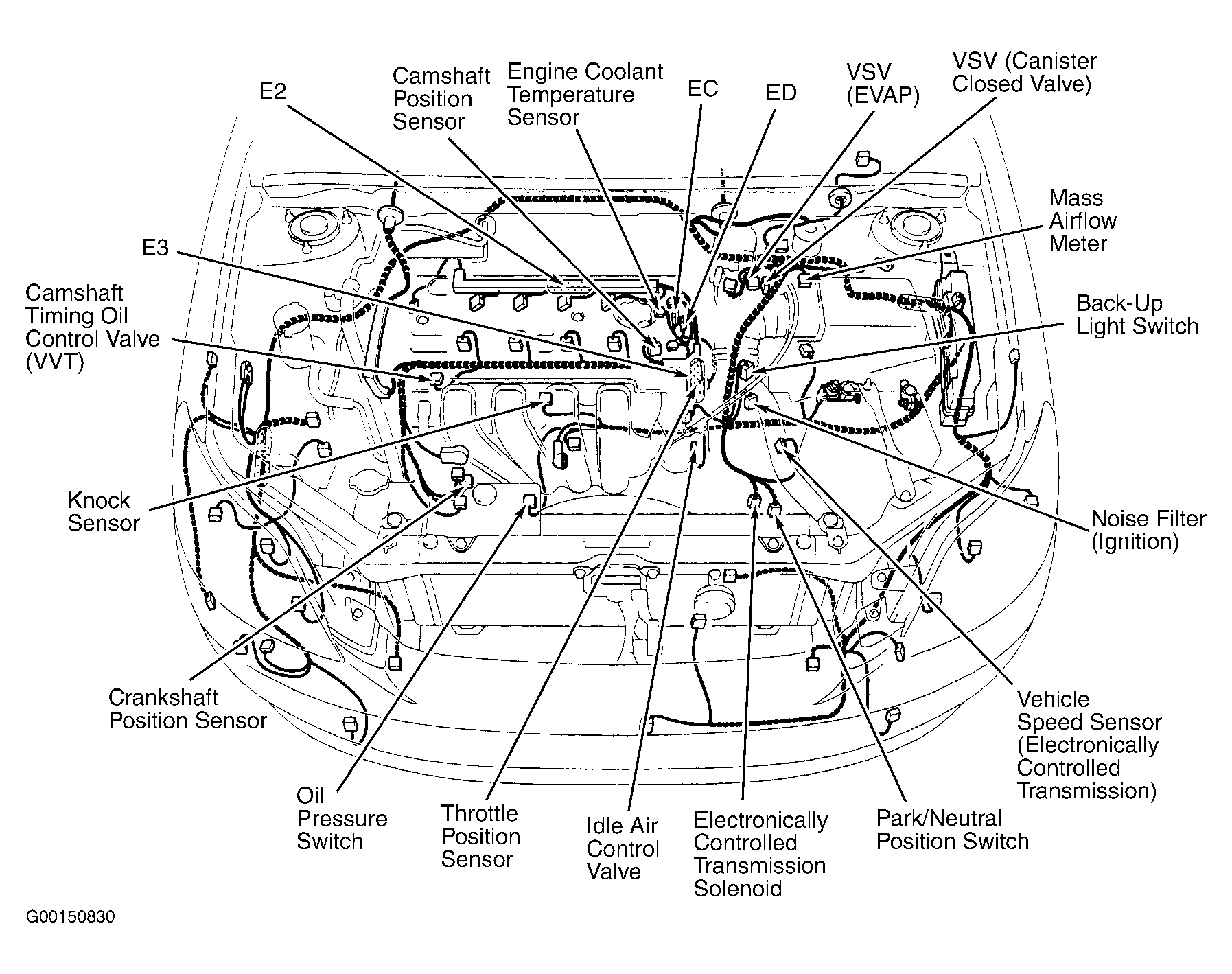

Fig 3: Engine Compartment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

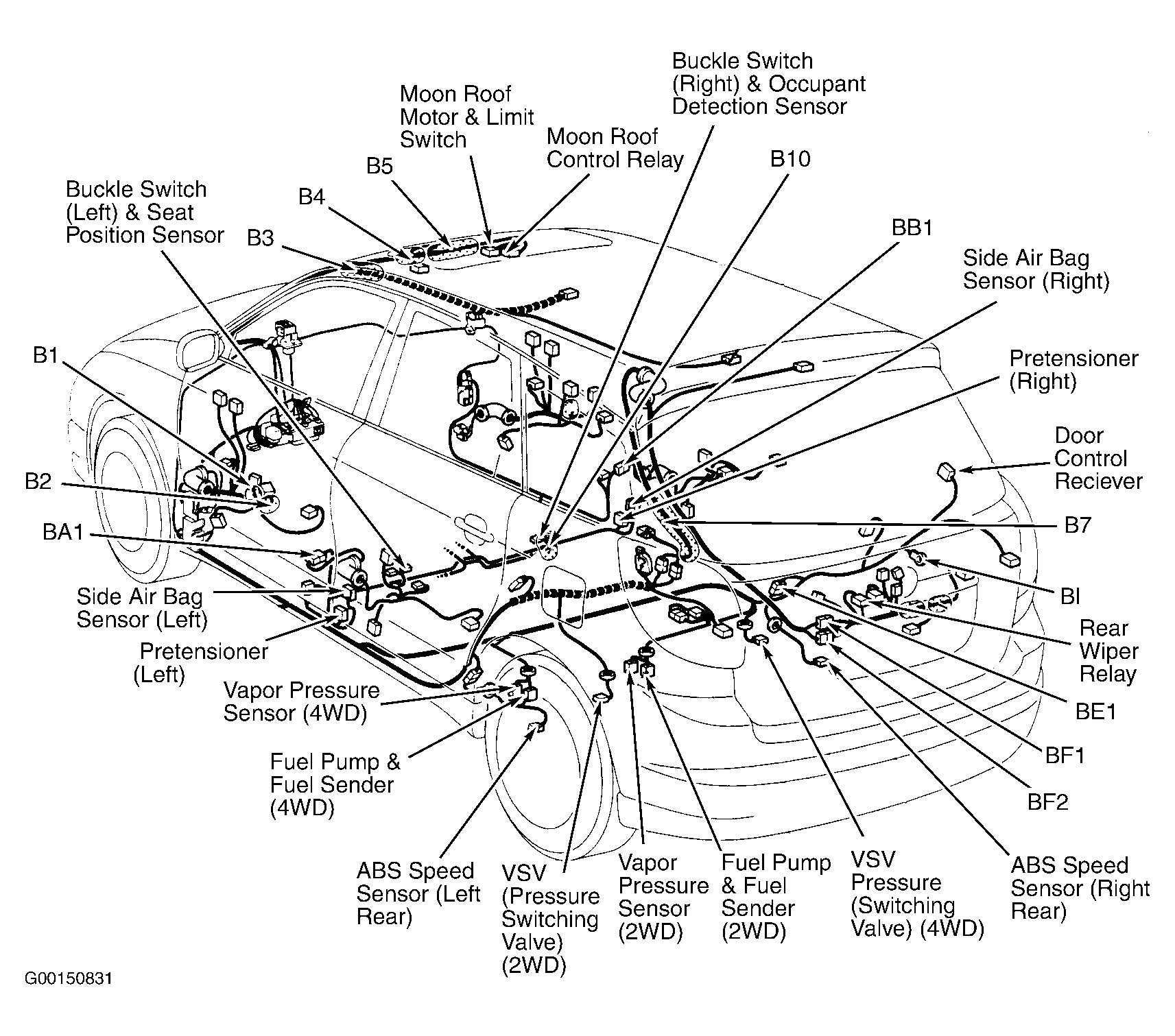

Fig 4: Left Side Of Vehicle

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

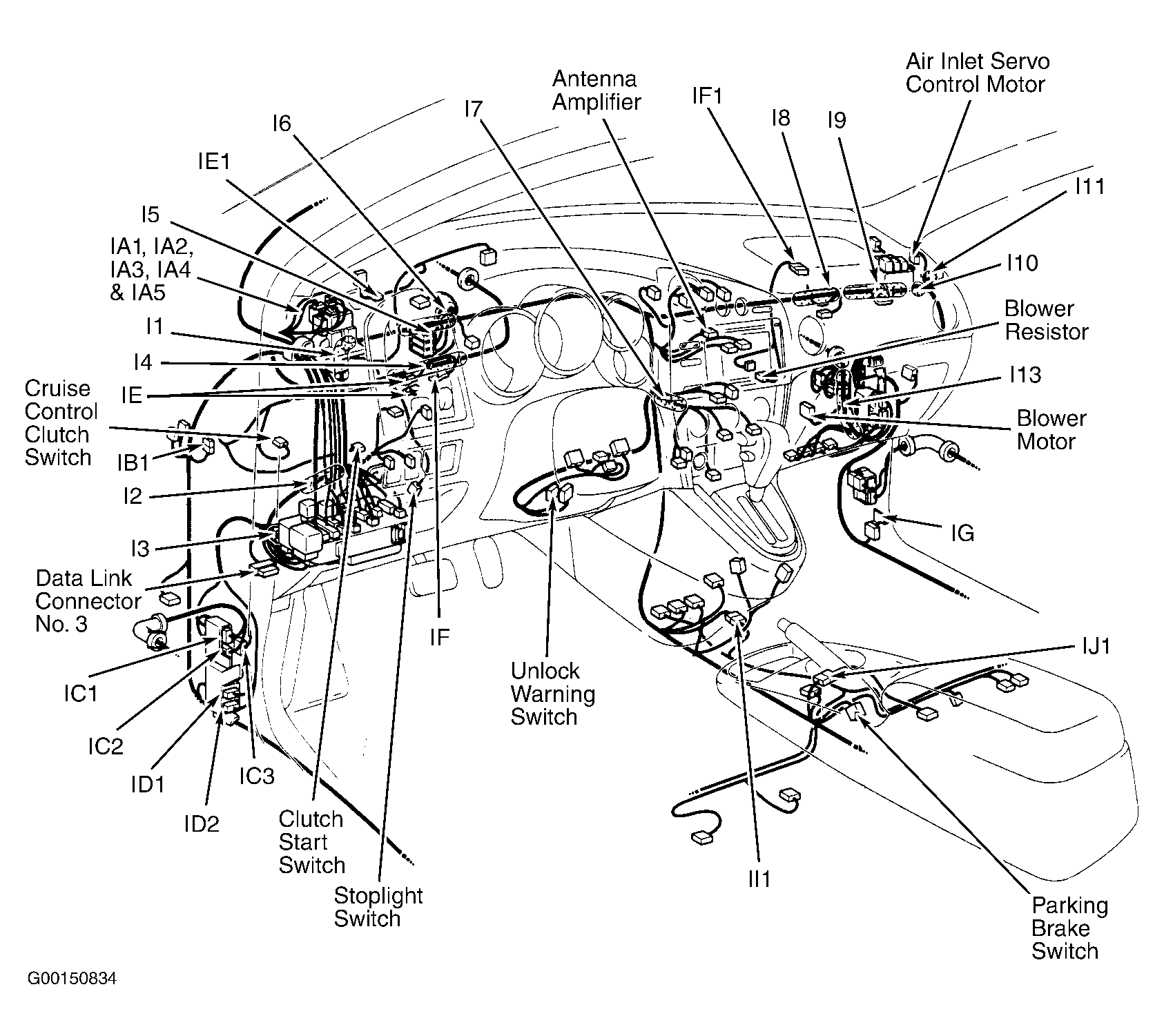

Fig 5: Dash

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Dash

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
