WARNING: This page is about a different car, the 2002 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

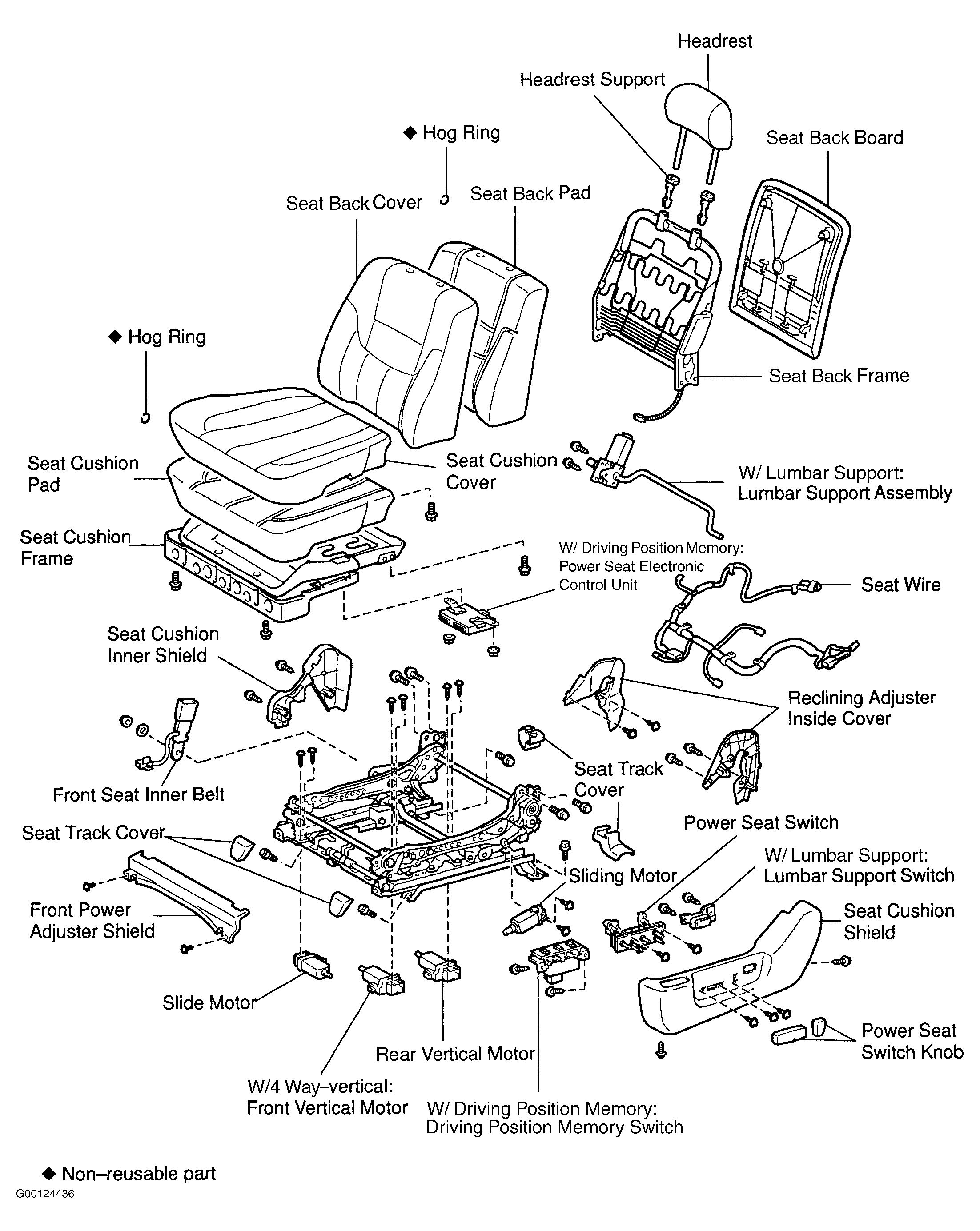

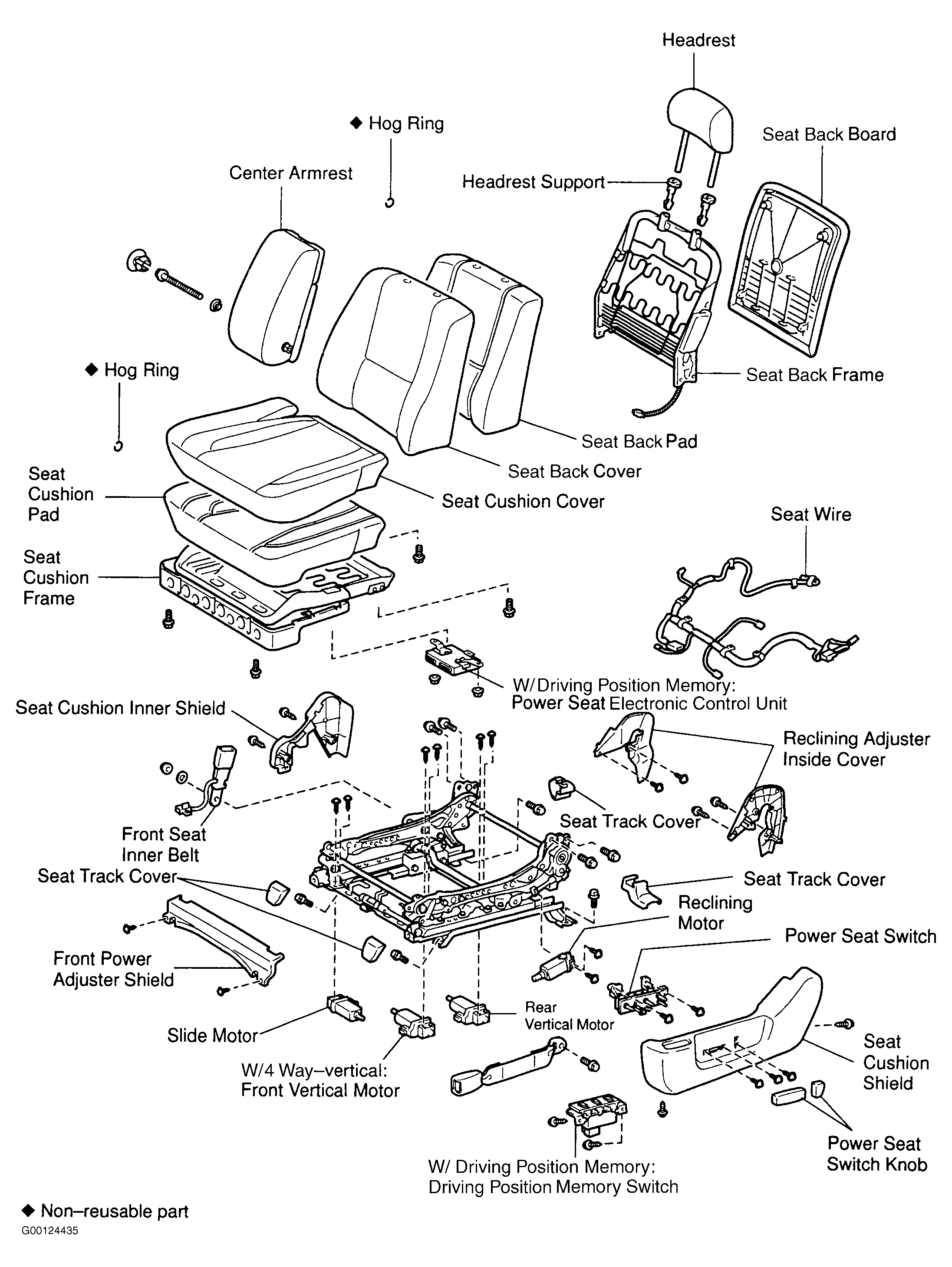

For exploded view of bench seat, see Figure. For exploded view of bucket seat, see Figure.
