Section 355 (Passenger Door Control System)
›
Problem Symptoms Table
Problem Symptoms Table
WARNING:
This page is about a different car, the 2003 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
POWER WINDOW CONTROL SYSTEM

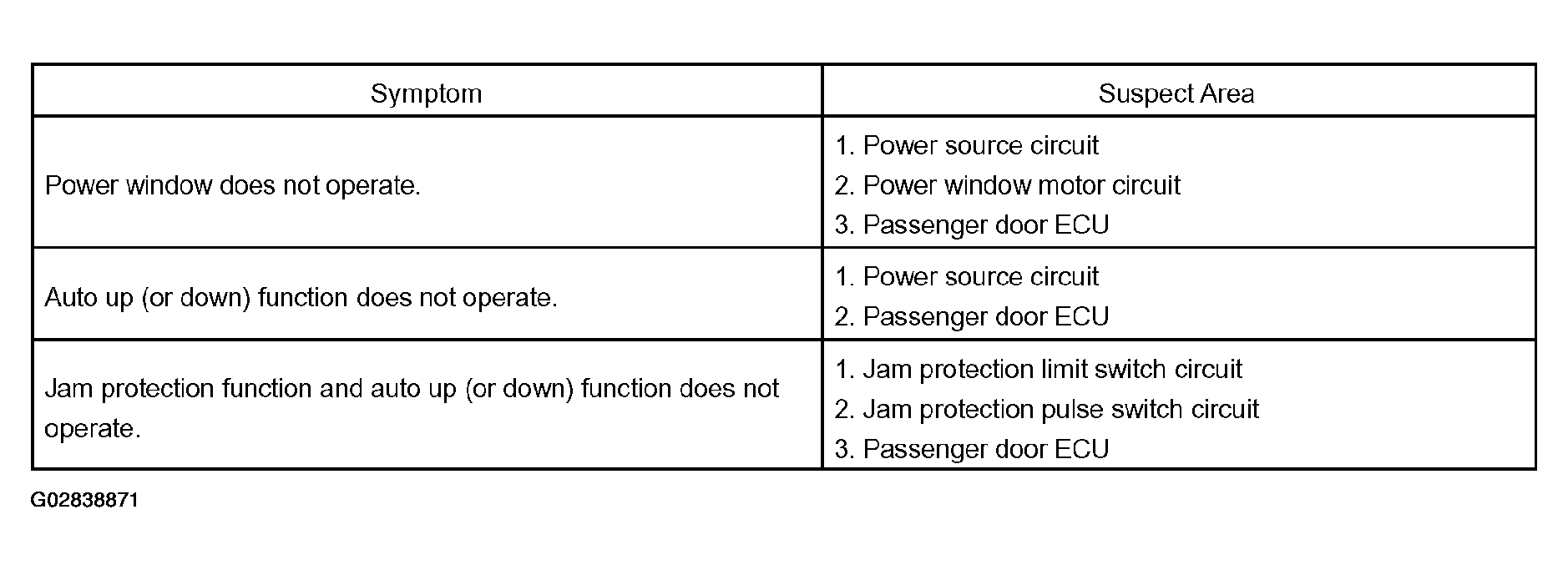

Fig 1: Power Window Control System Problem Symptoms Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
OTHERS

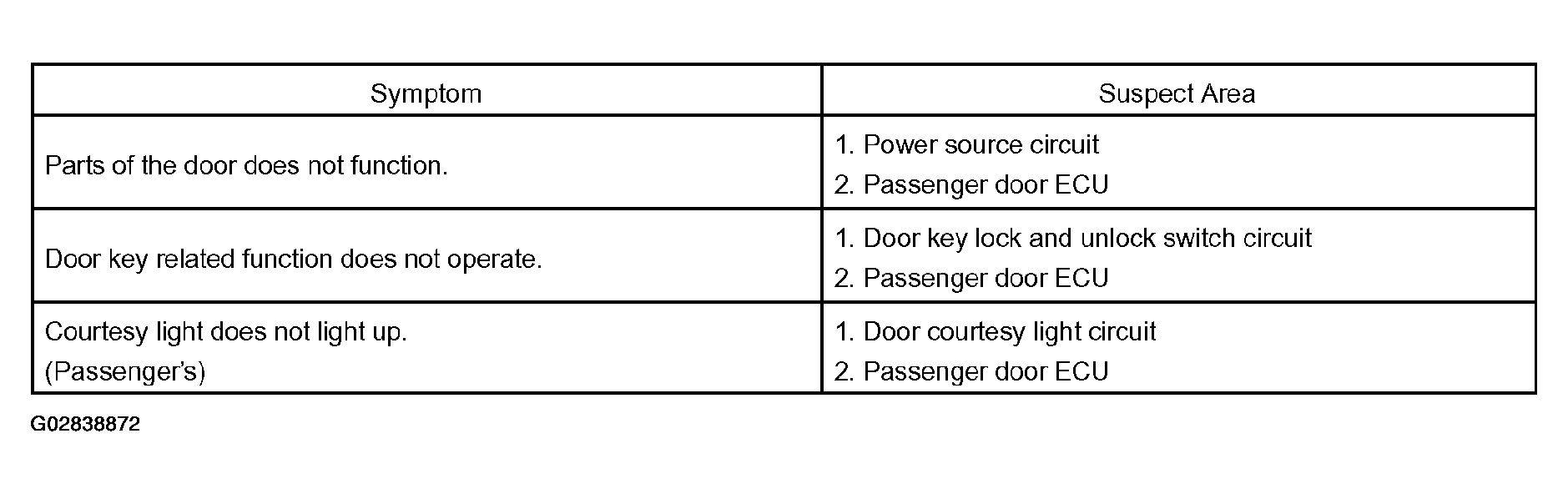

Fig 2: Others Problem Symptoms Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
