Terminals Of Ecu

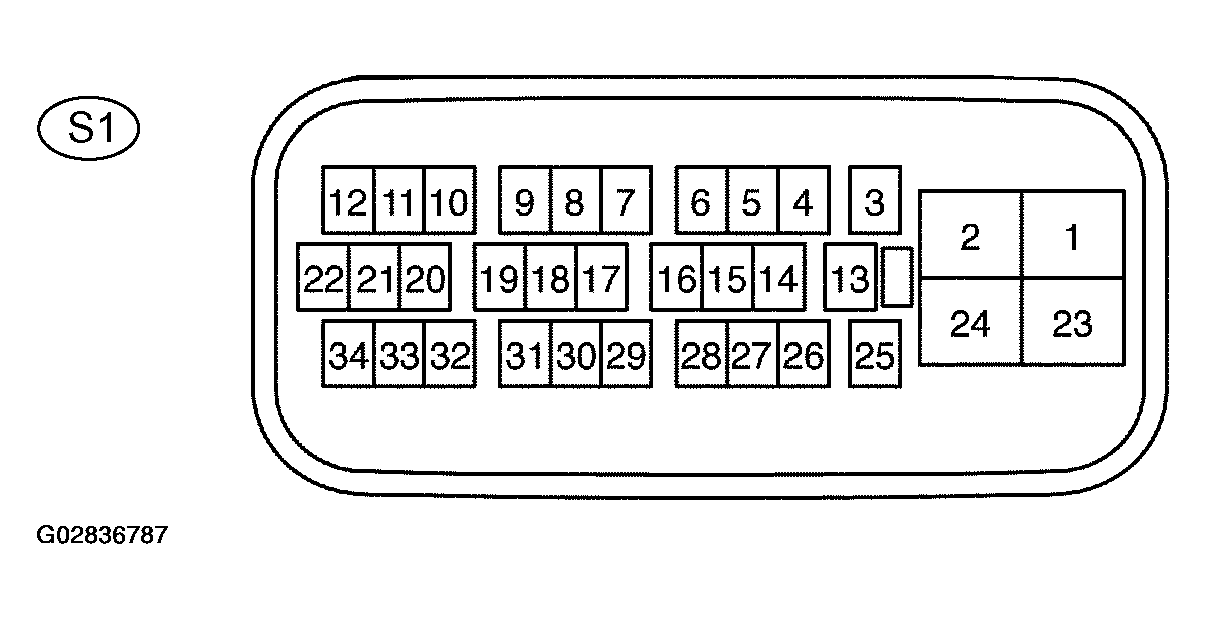

Fig 1: Identifying Terminal Of ECU
G02836787Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

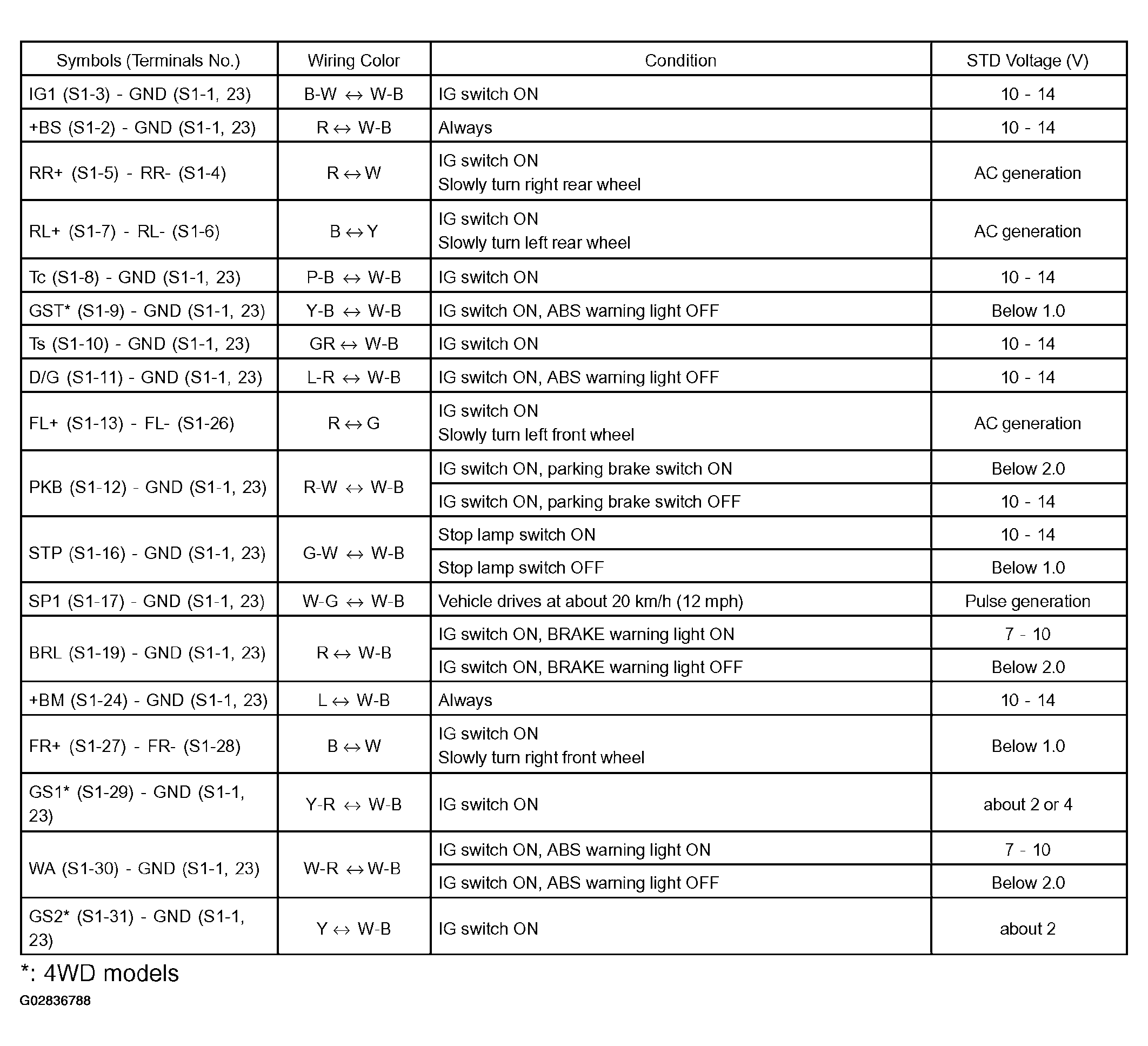

Fig 2: Wiring Color Condition Table
G02836788Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
