Engine Controls - System & Component Testing - 4-Cylinder
›
Idle Control Systems
›
Idle Air Control Valve
›
Camry Solara
Camry Solara
For Idle Air Control (IAC) system testing procedures, see
Fig 1
-
Fig 2
.

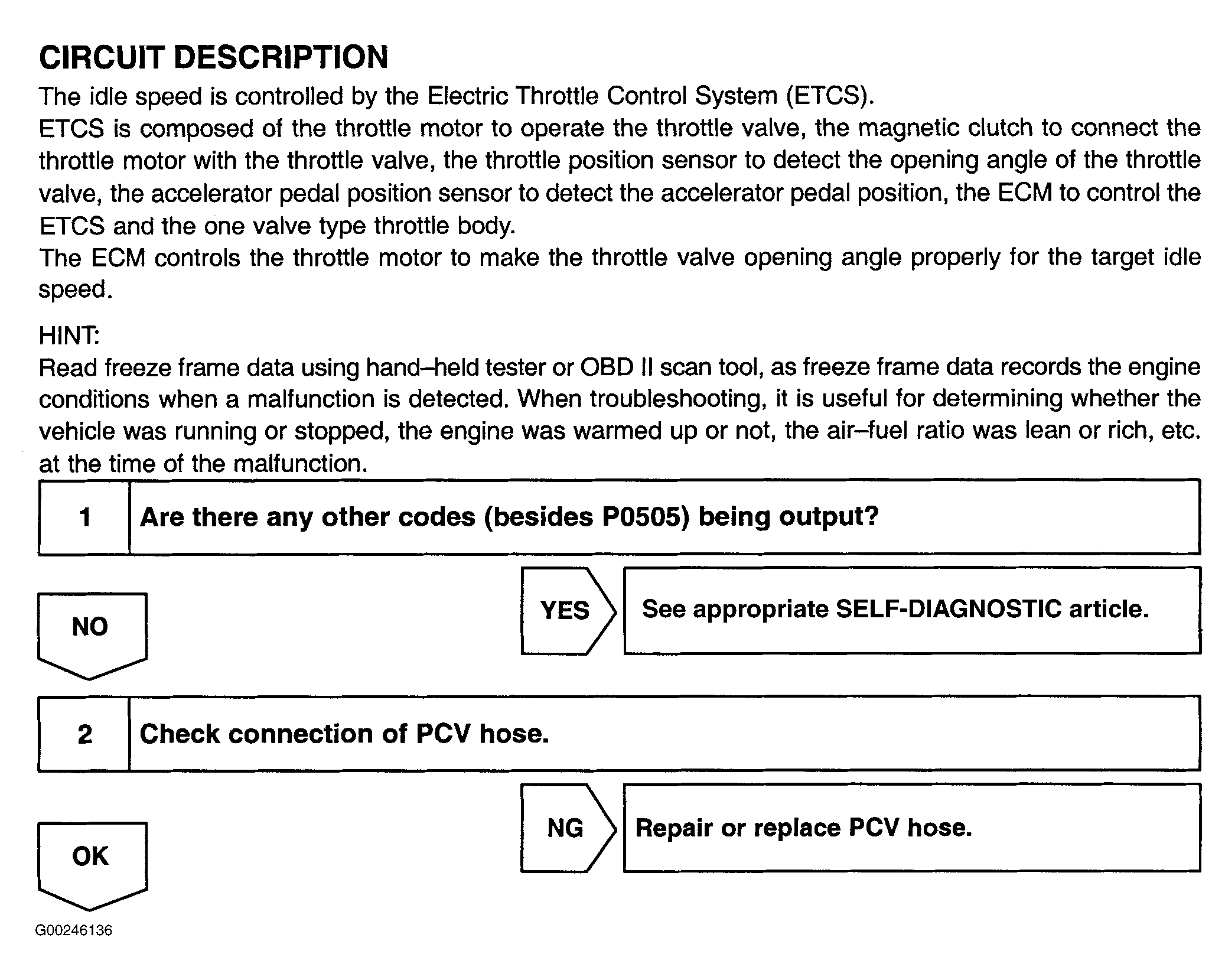

Fig 1: Testing Idle Air Control System - Circuit Description & Steps 1-2 (Camry Solara)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

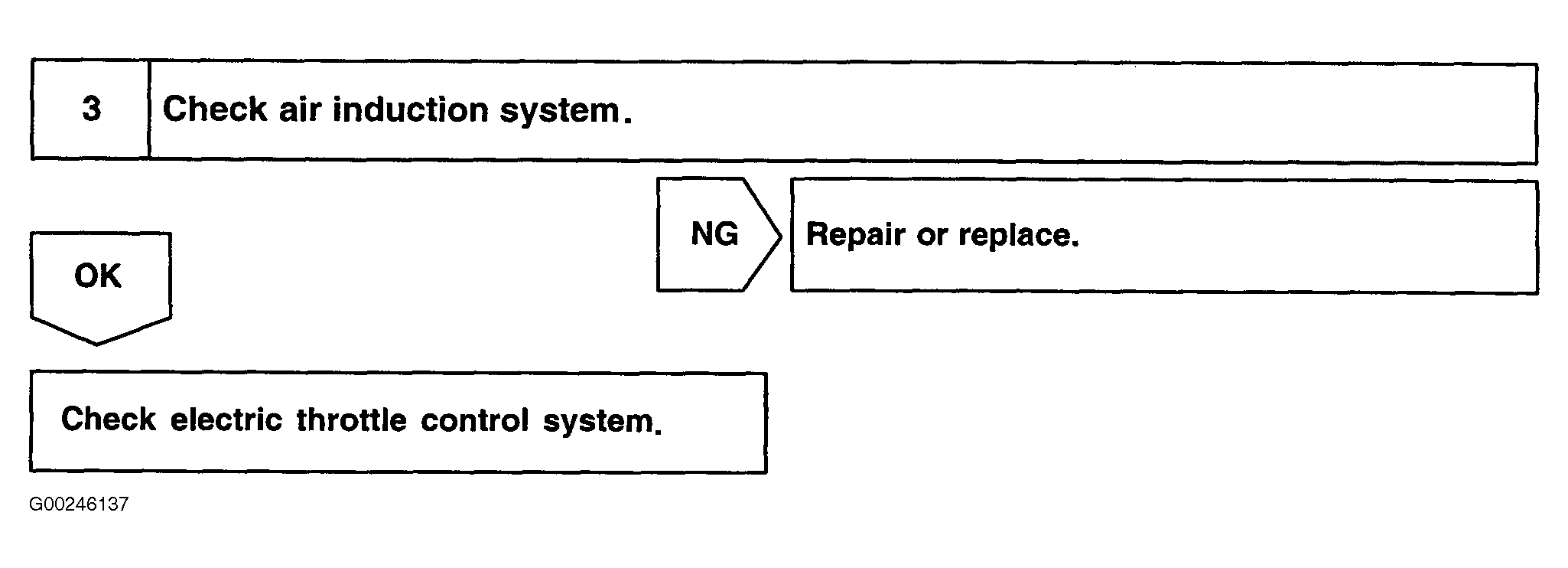

Fig 2: Testing Idle Air Control System - Step 3 (Camry Solara)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
