Parts Location

WARNING: This page is about a different car, the 2003 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

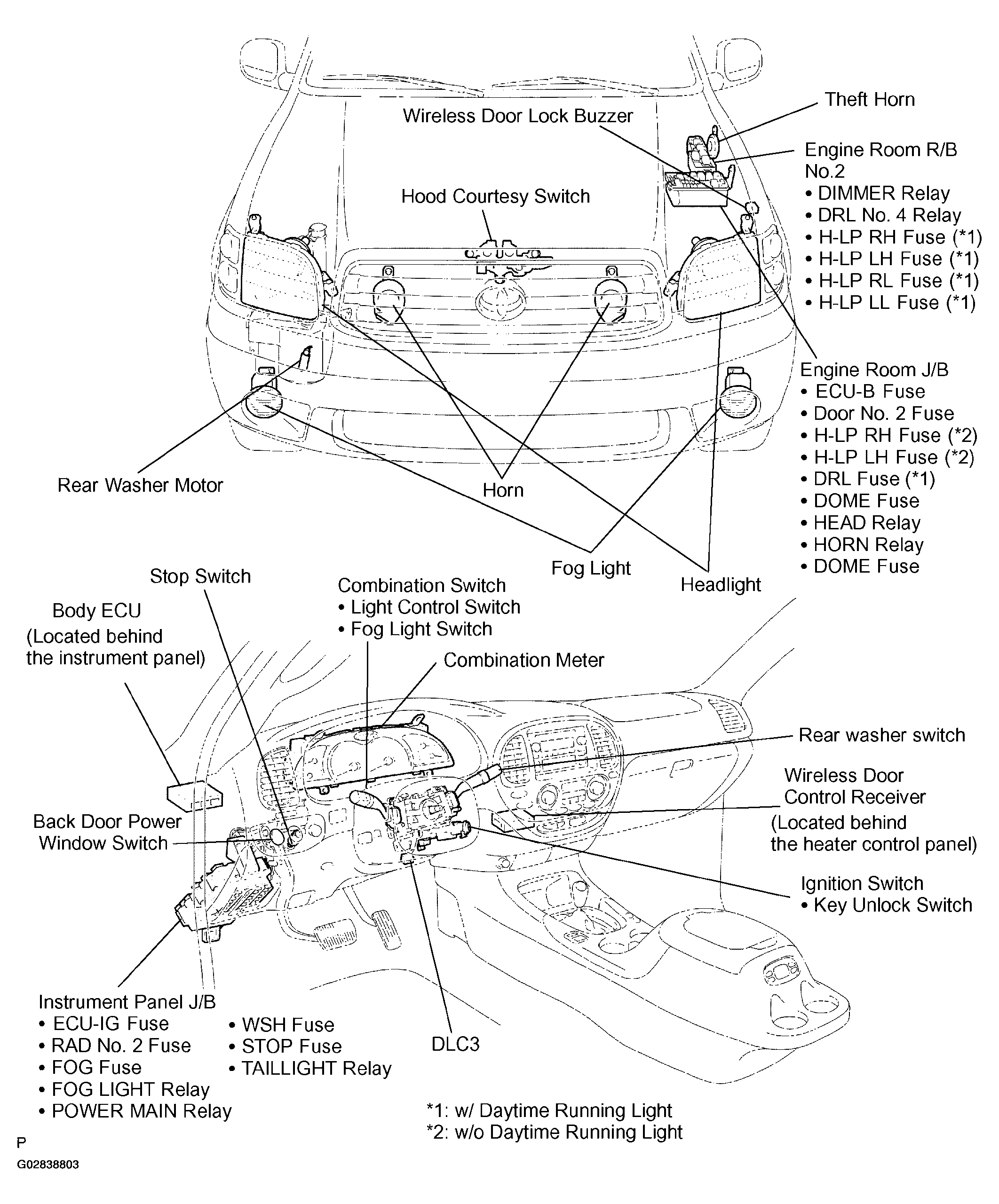

Fig 1: Identifying Body Control System Parts Location (1 Of 2)
G02838803Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

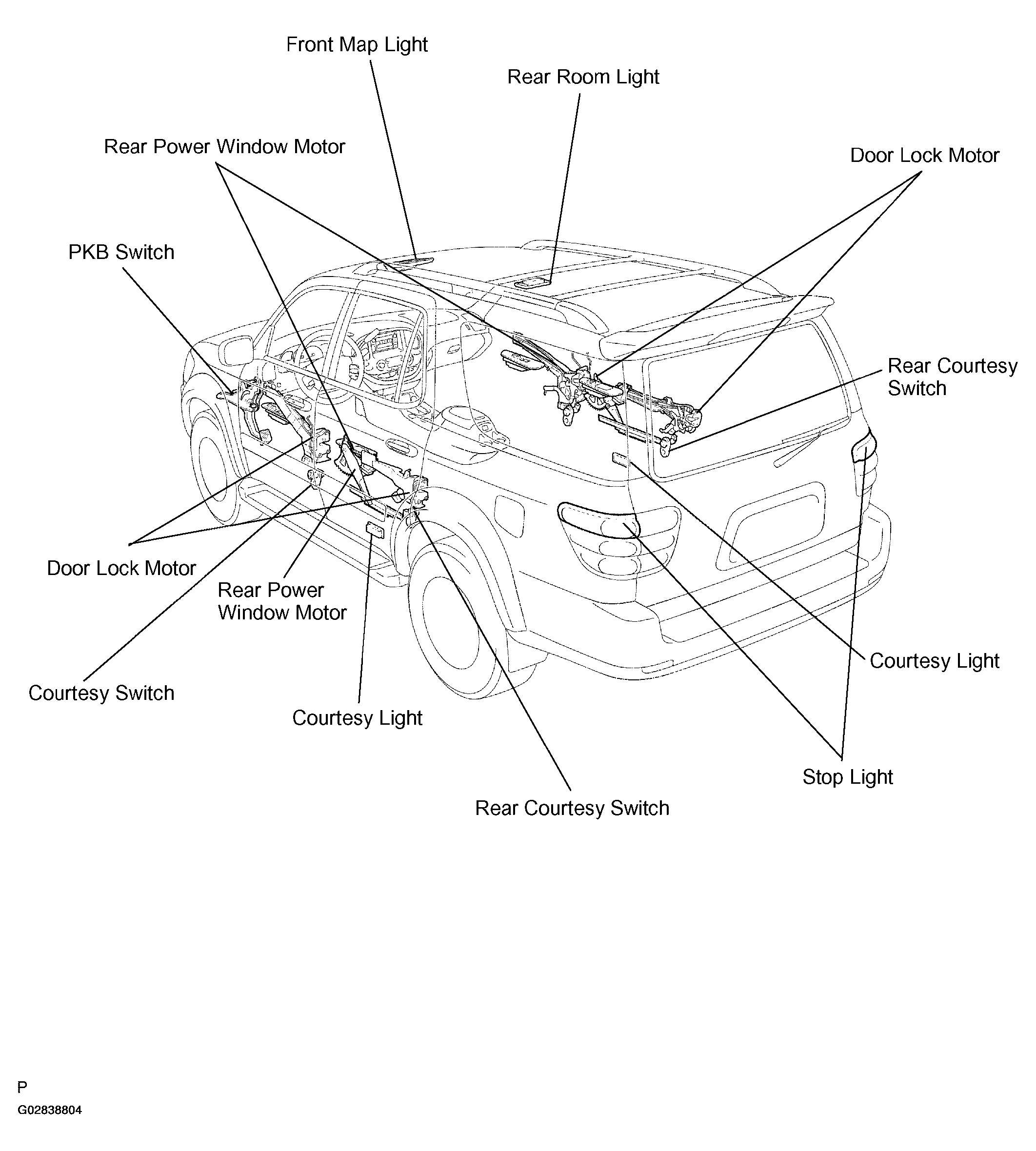

Fig 2: Identifying Body Control System Parts Location (2 Of 2)
G02838804Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
