Section 372 (Body Control Systems - Troubleshooting)
›
Problem Symptoms Table
›
Back-Up Light System
Back-Up Light System
WARNING:
This page is about a different car, the 2003 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

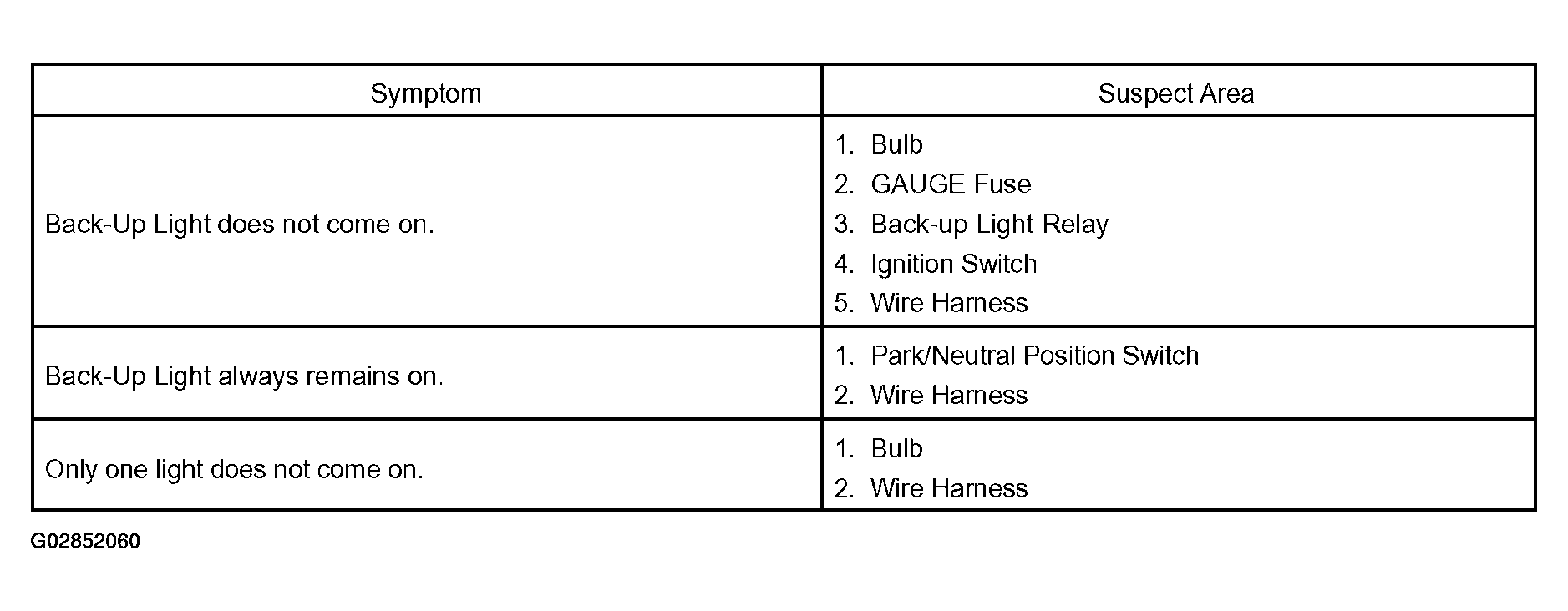

Fig 1: Problem Symptoms Chart - Back-Up Light System
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
