Manual Transaxle ASSY (C60): Components

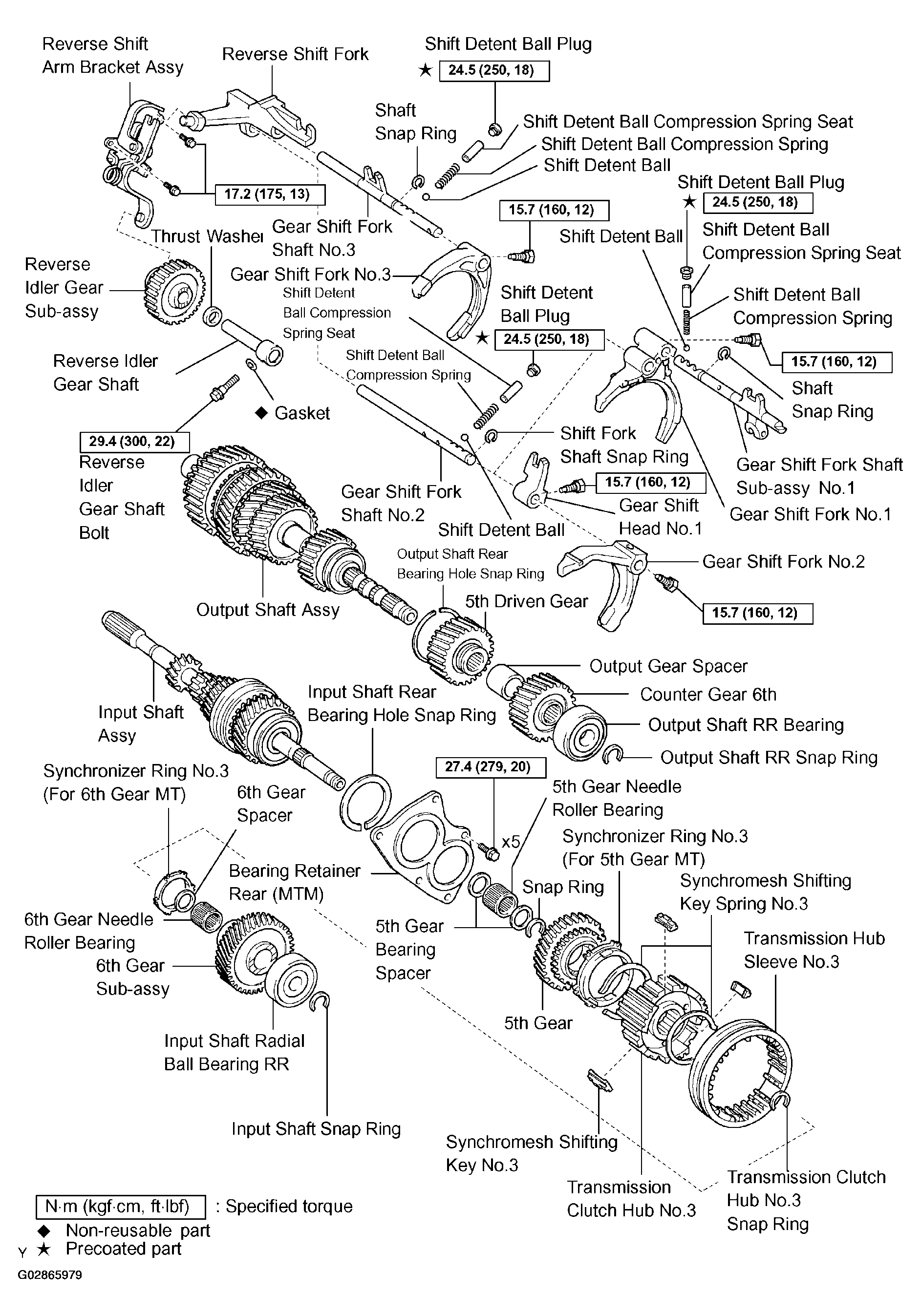

Fig 1: Exploded View Of Manual Transaxle Assembly Components - C60 (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

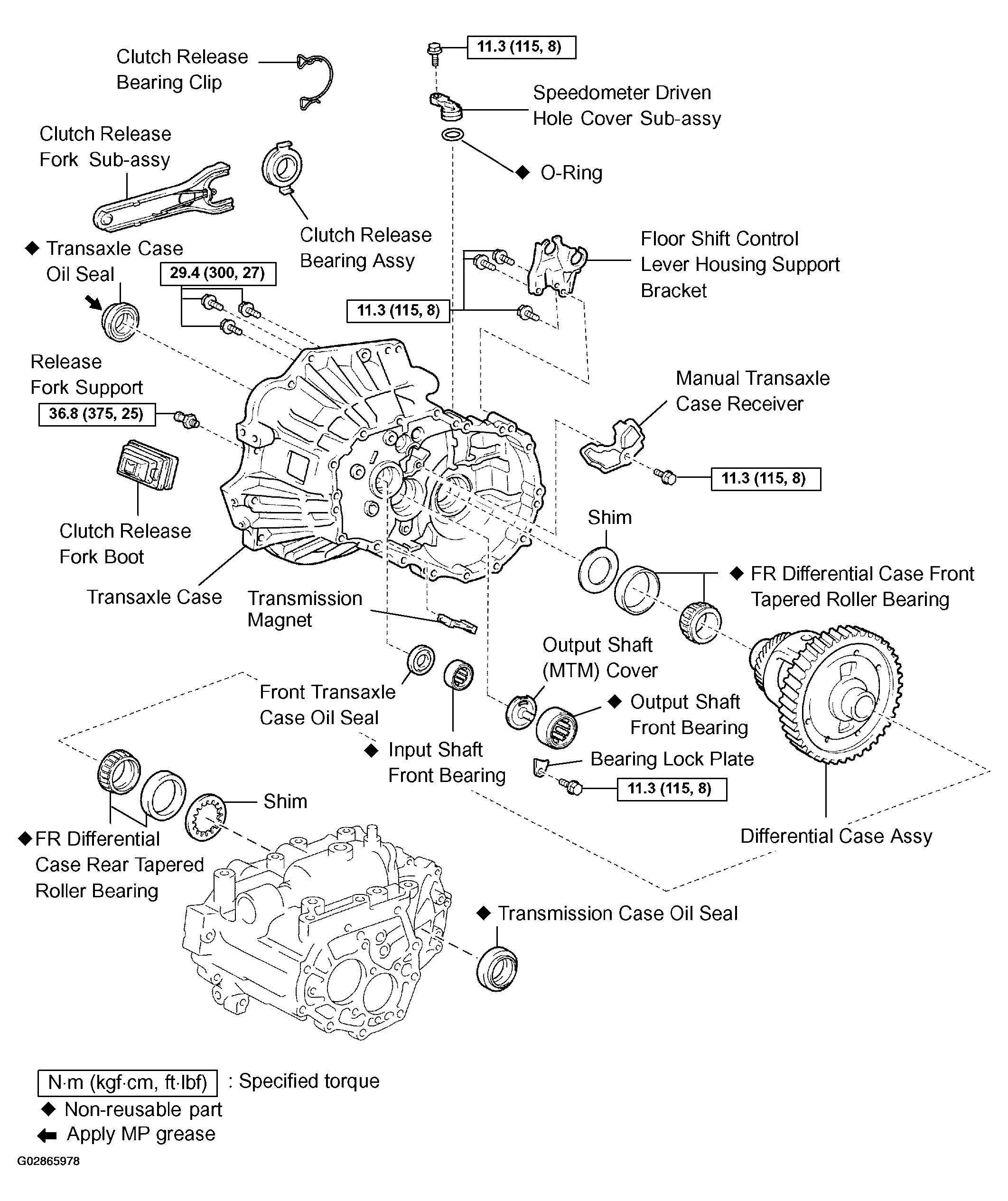

Fig 2: Exploded View Of Manual Transaxle Assembly Components - C60 (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

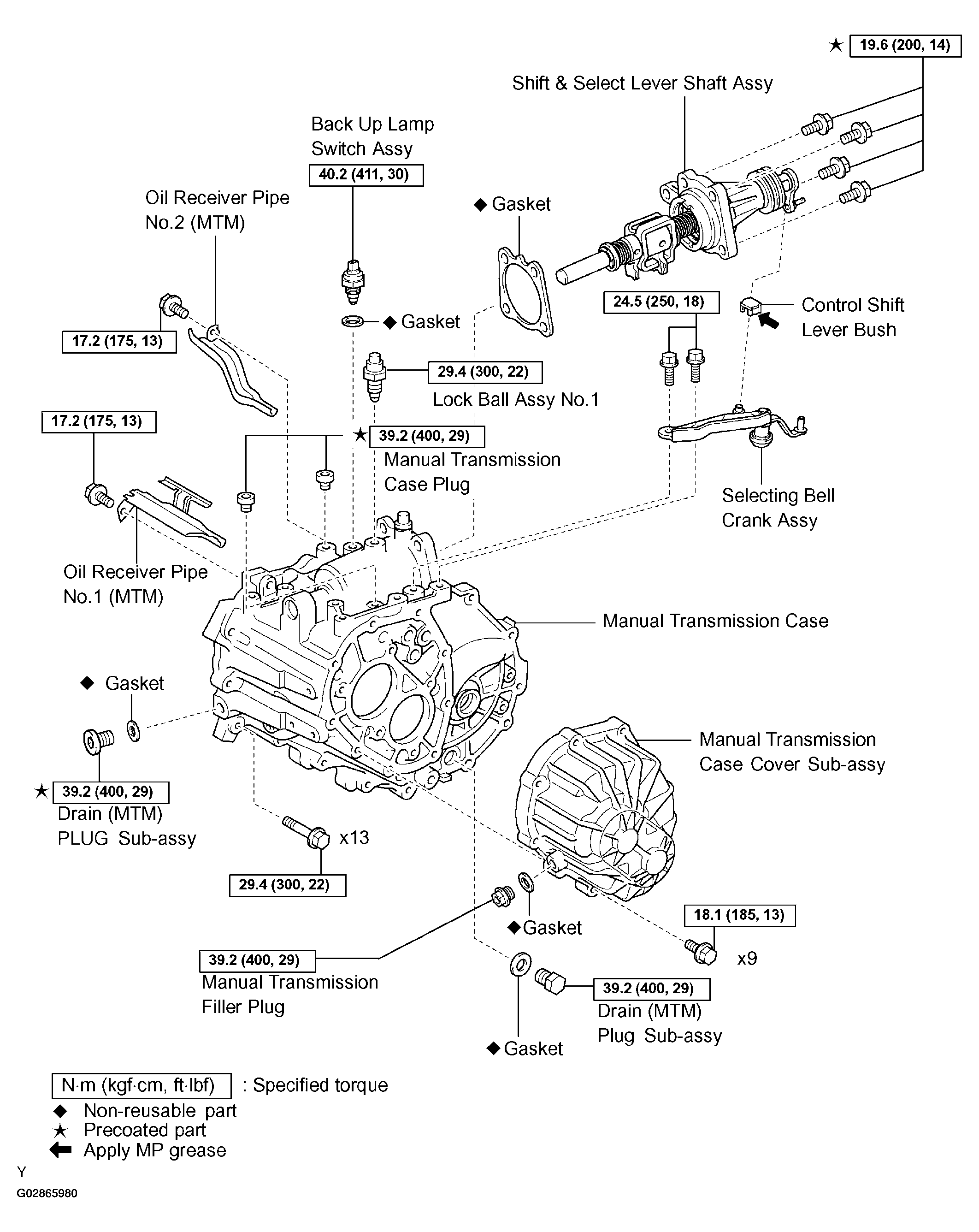

Fig 3: Exploded View Of Manual Transaxle Assembly Components - C60 (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
