Manual Transaxle ASSY (MTM): Components

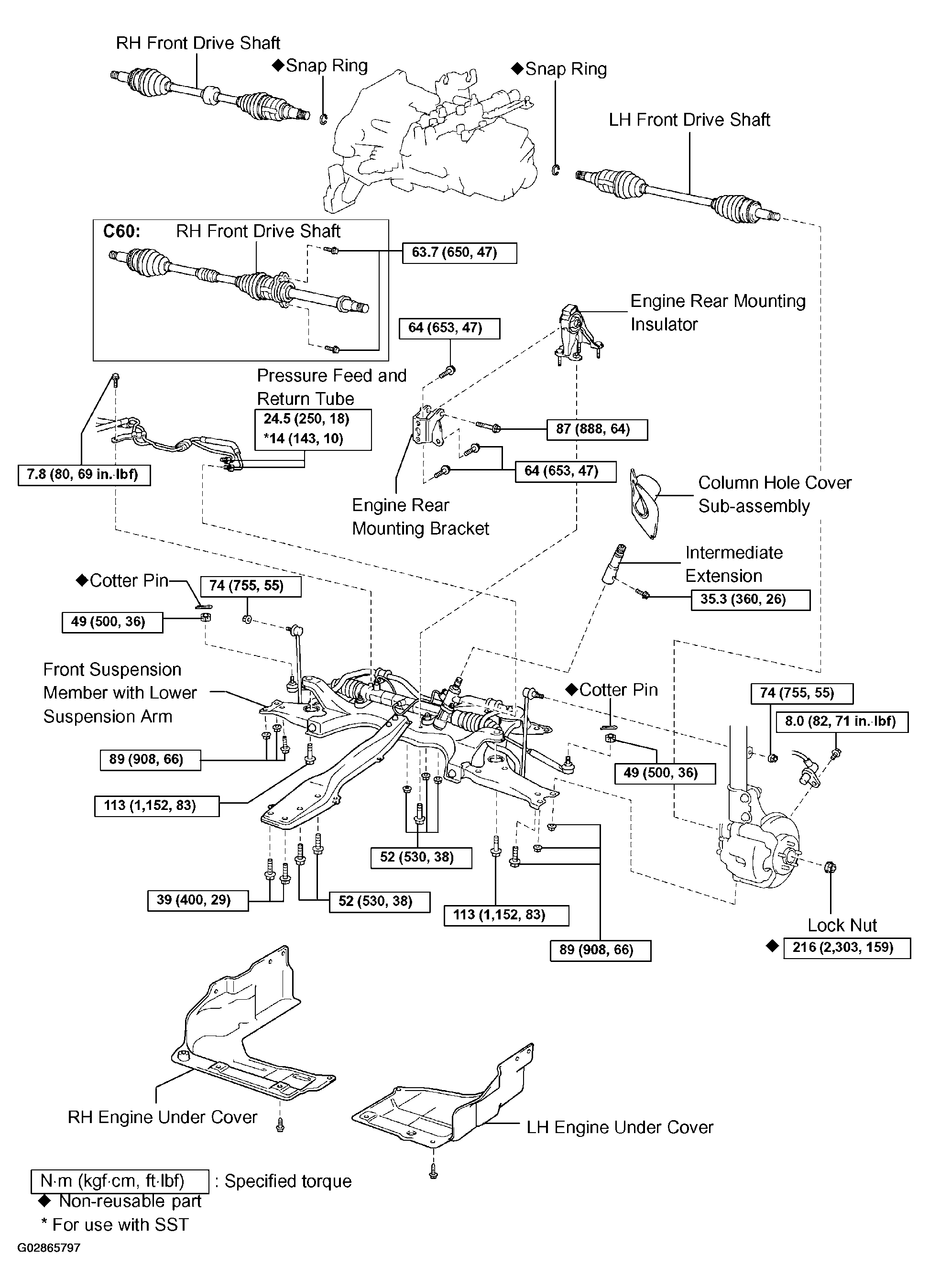

Fig 1: Identifying Components Of Manual Transaxle Assy (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

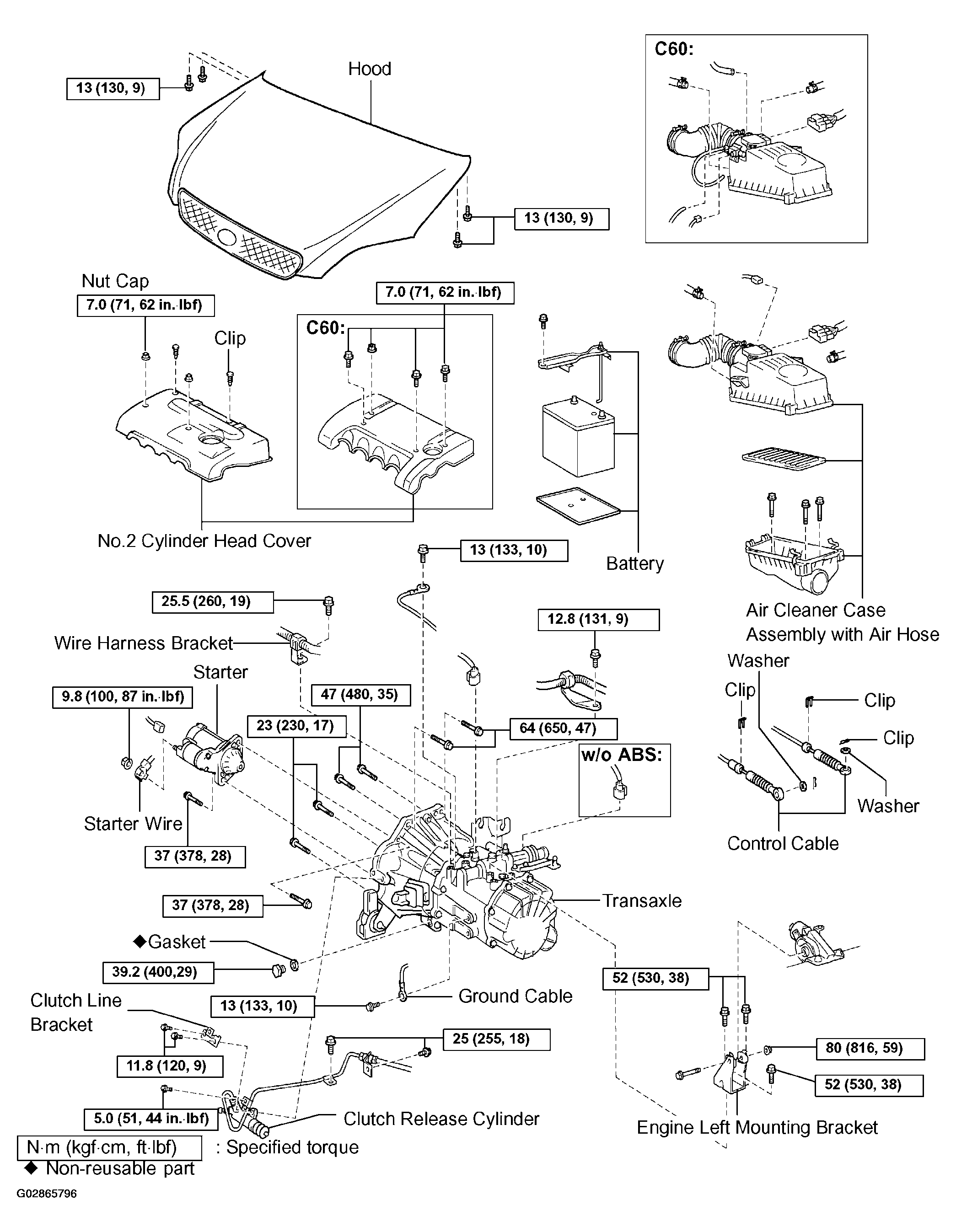

Fig 2: Identifying Components Of Manual Transaxle Assy (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
