Vehicle Intrusion Protection System - Diagnostics
›
Location
Vehicle Intrusion Protection System - Diagnostics: Location

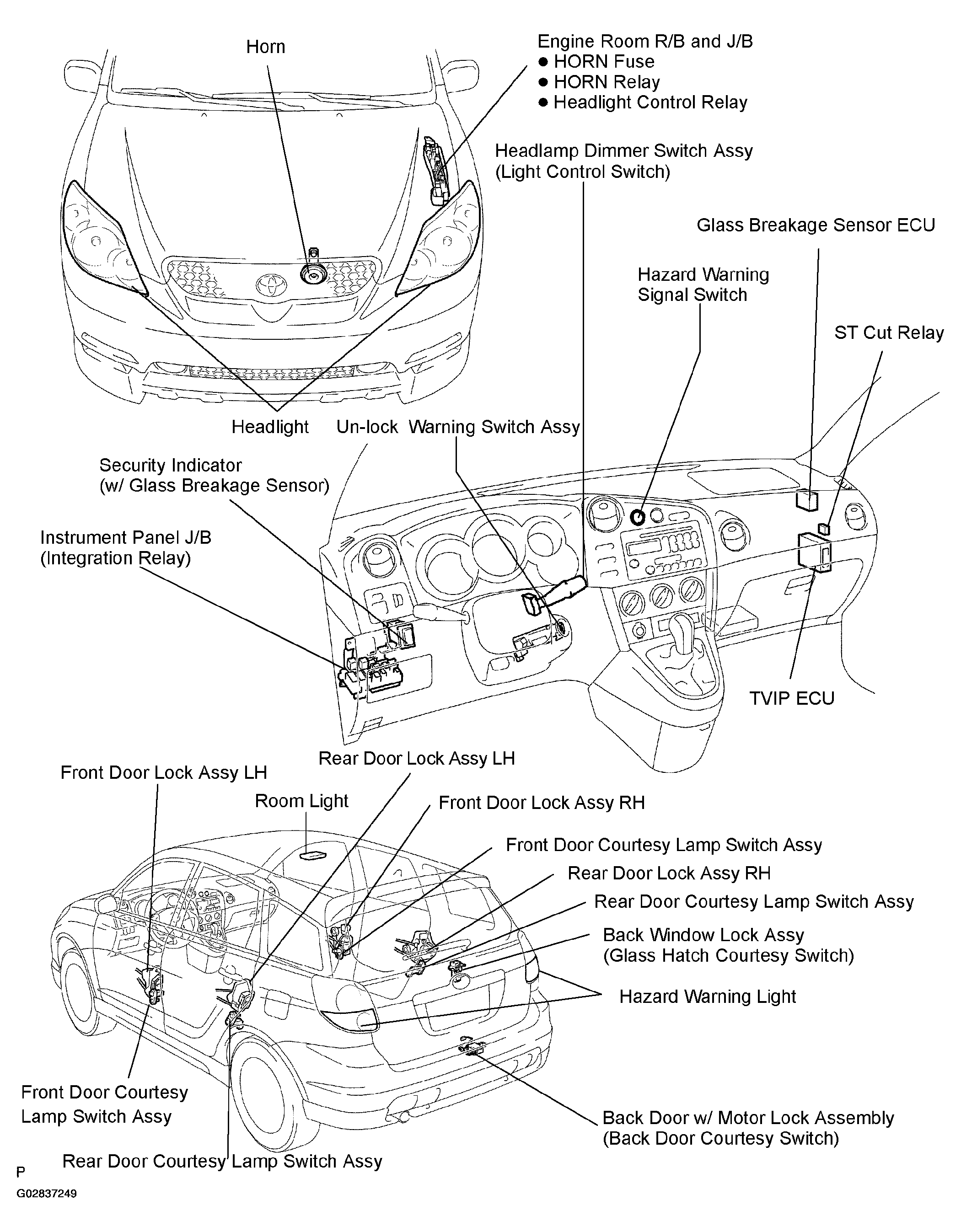

Fig 1: Identifying Toyota Vehicle Intrusion Protection System Components Location
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
