Throttle Position Sensor: CELICA

For inspection of Throttle Position (TP) sensor, see Fig 1-Fig 10 .

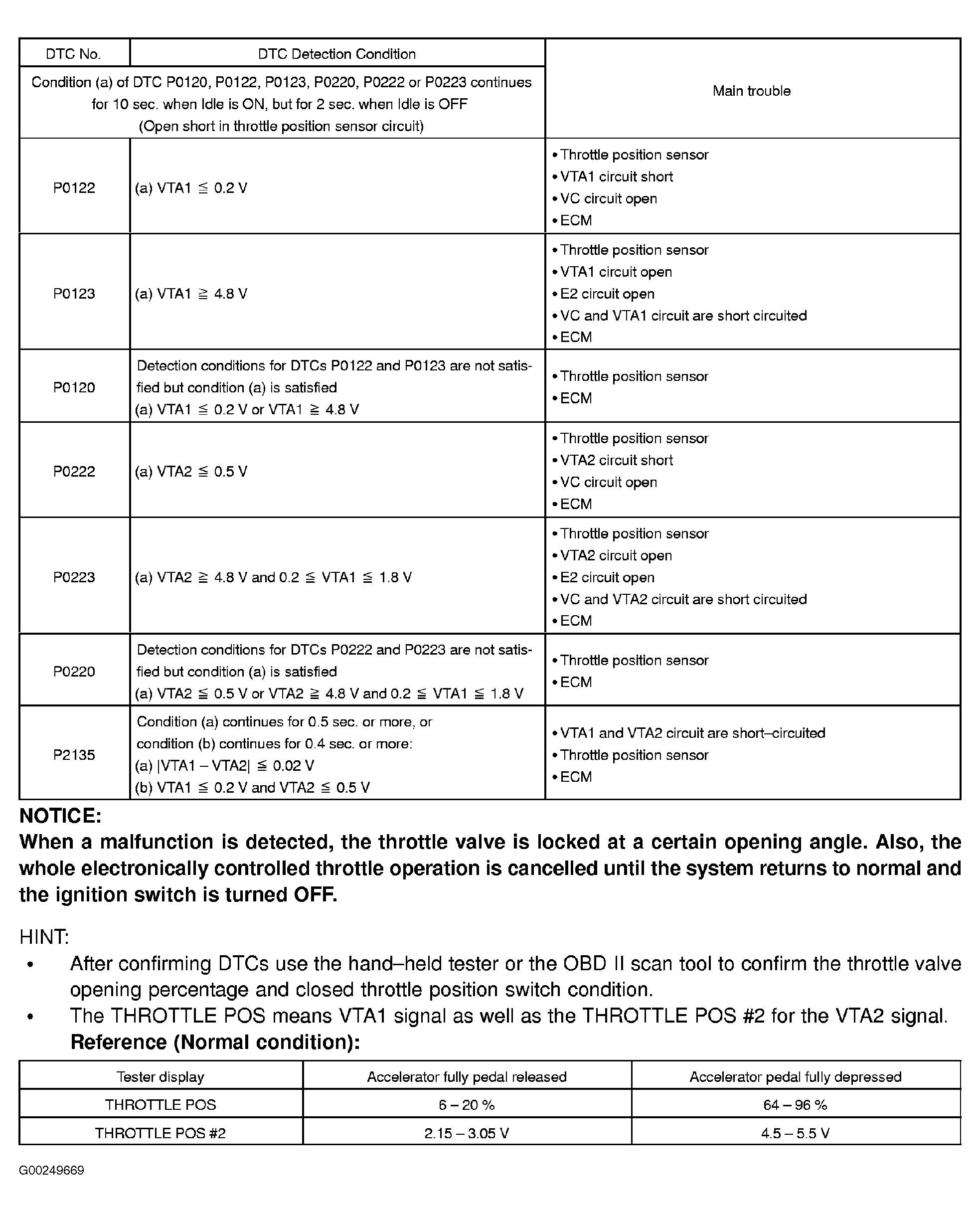

Fig 1: Identifying Throttle Position Sensor Terminals (Celica)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

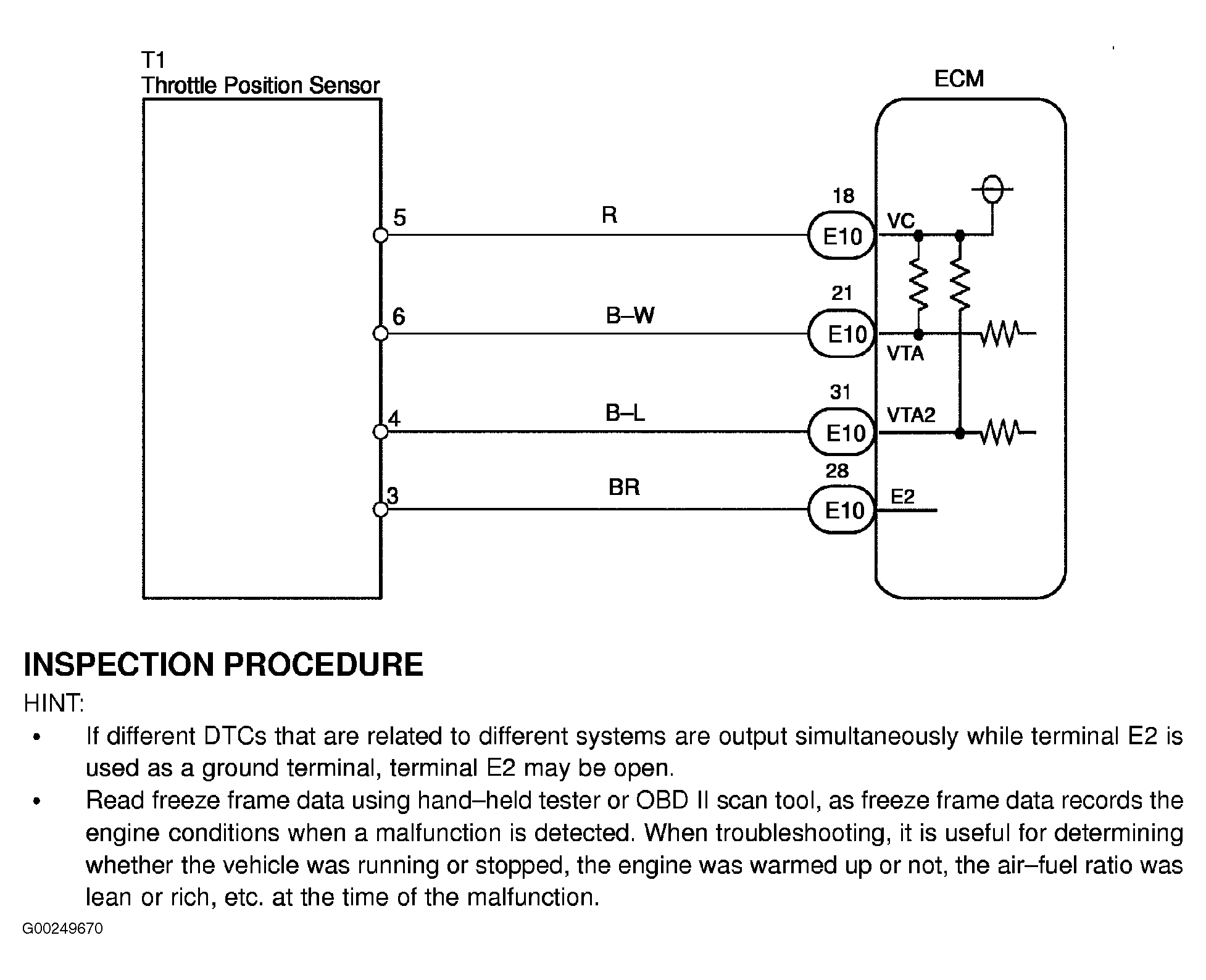

Fig 2: Inspecting Throttle Position Sensor (Celica 1 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

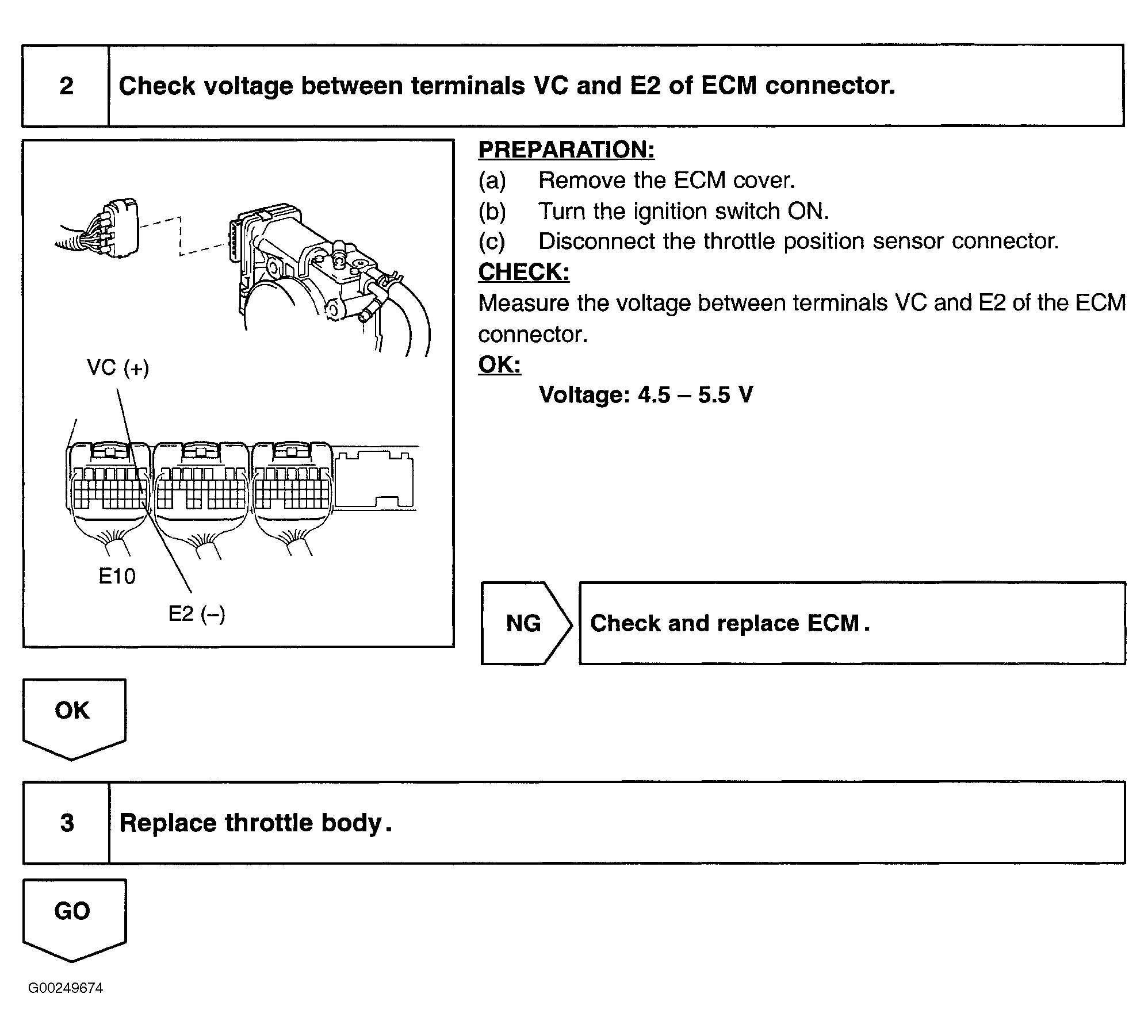

Fig 3: Inspecting Throttle Position Sensor (Celica 2 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

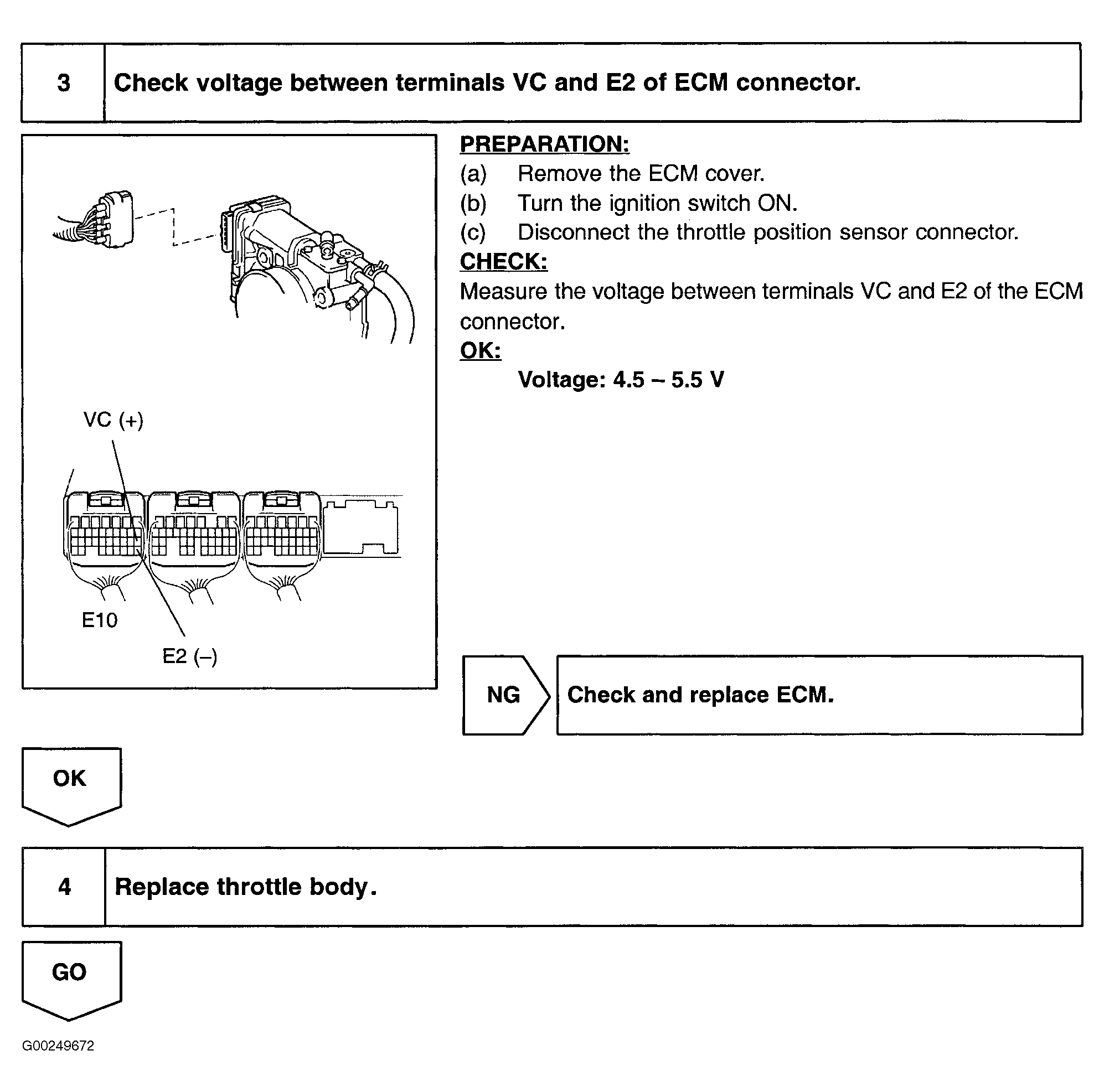

Fig 4: Inspecting Throttle Position Sensor (Celica 3 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

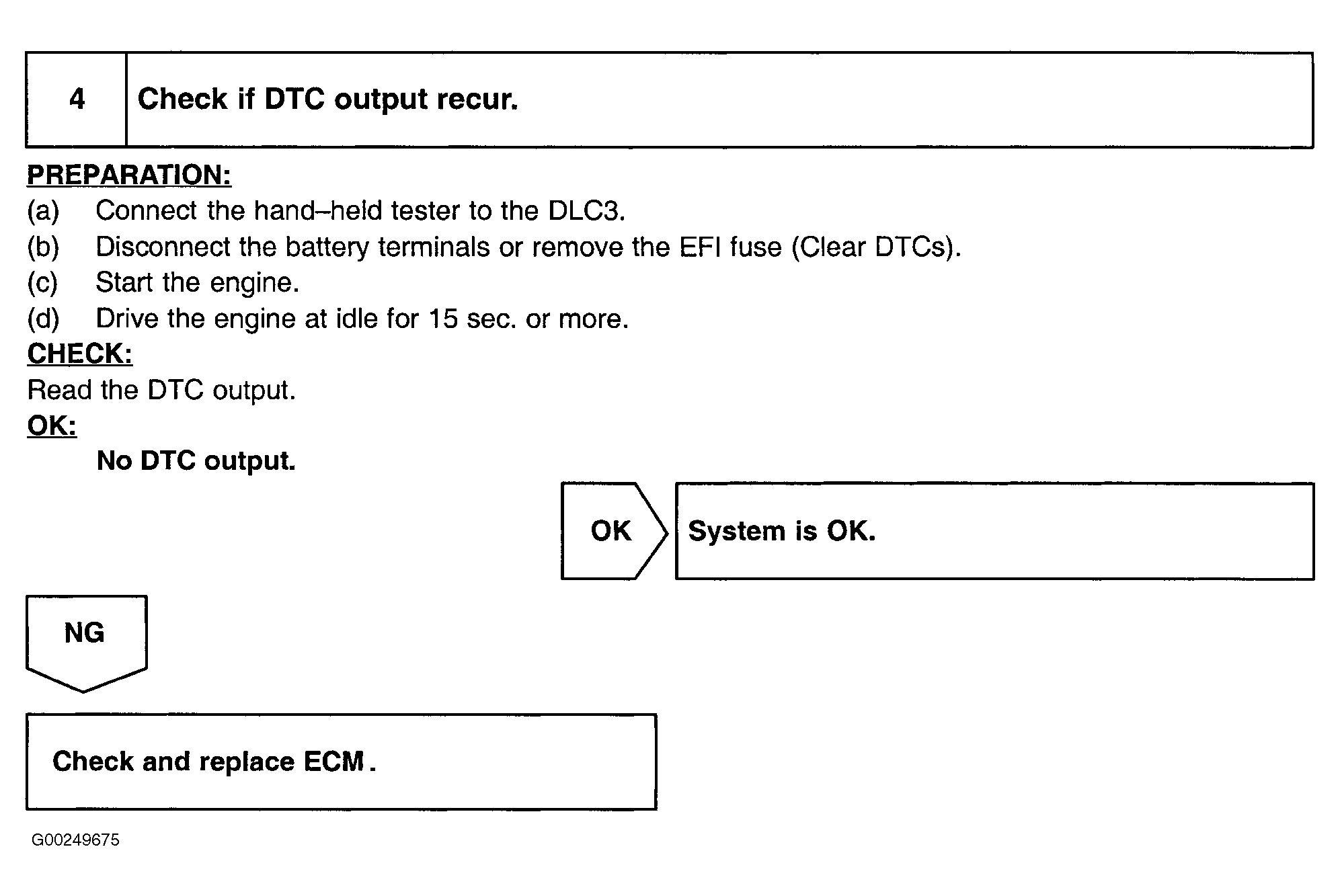

Fig 5: Inspecting Throttle Position Sensor (Celica 4 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

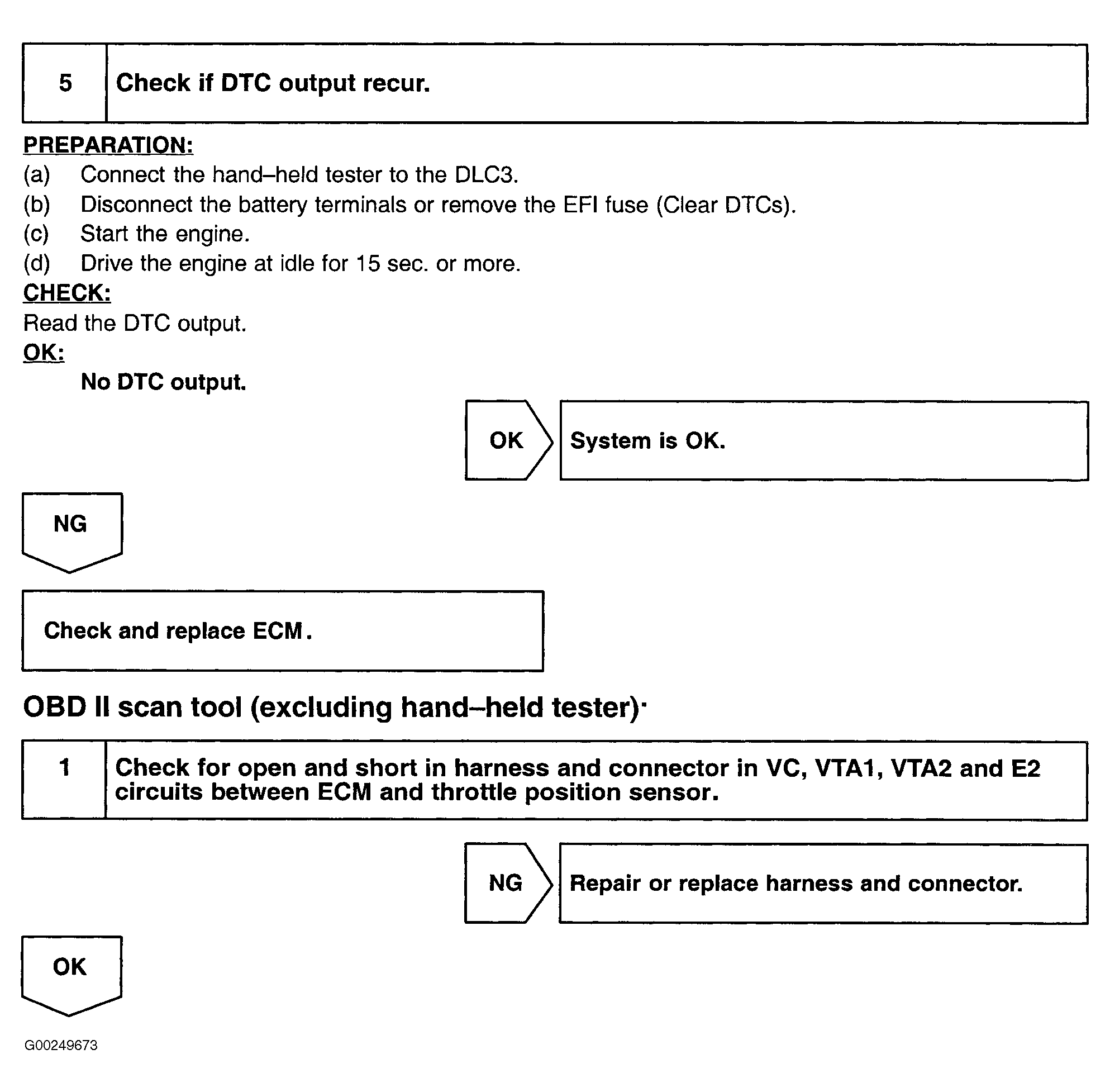

Fig 6: Inspecting Throttle Position Sensor (Celica 5 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

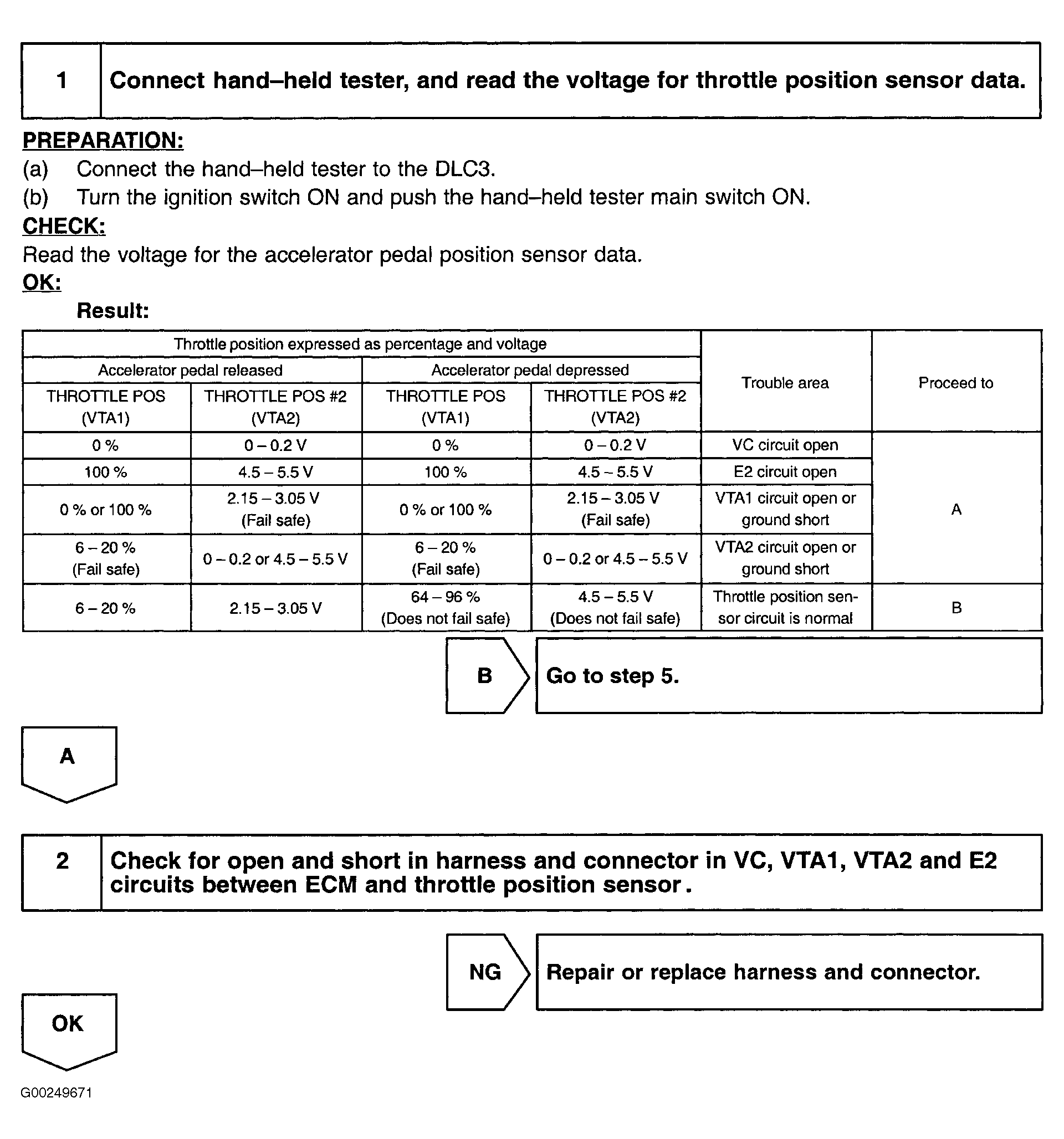

Fig 7: Inspecting Throttle Position Sensor (Celica 6 Of 9)

Fig 8: Inspecting Throttle Position Sensor (Celica 7 Of 9)

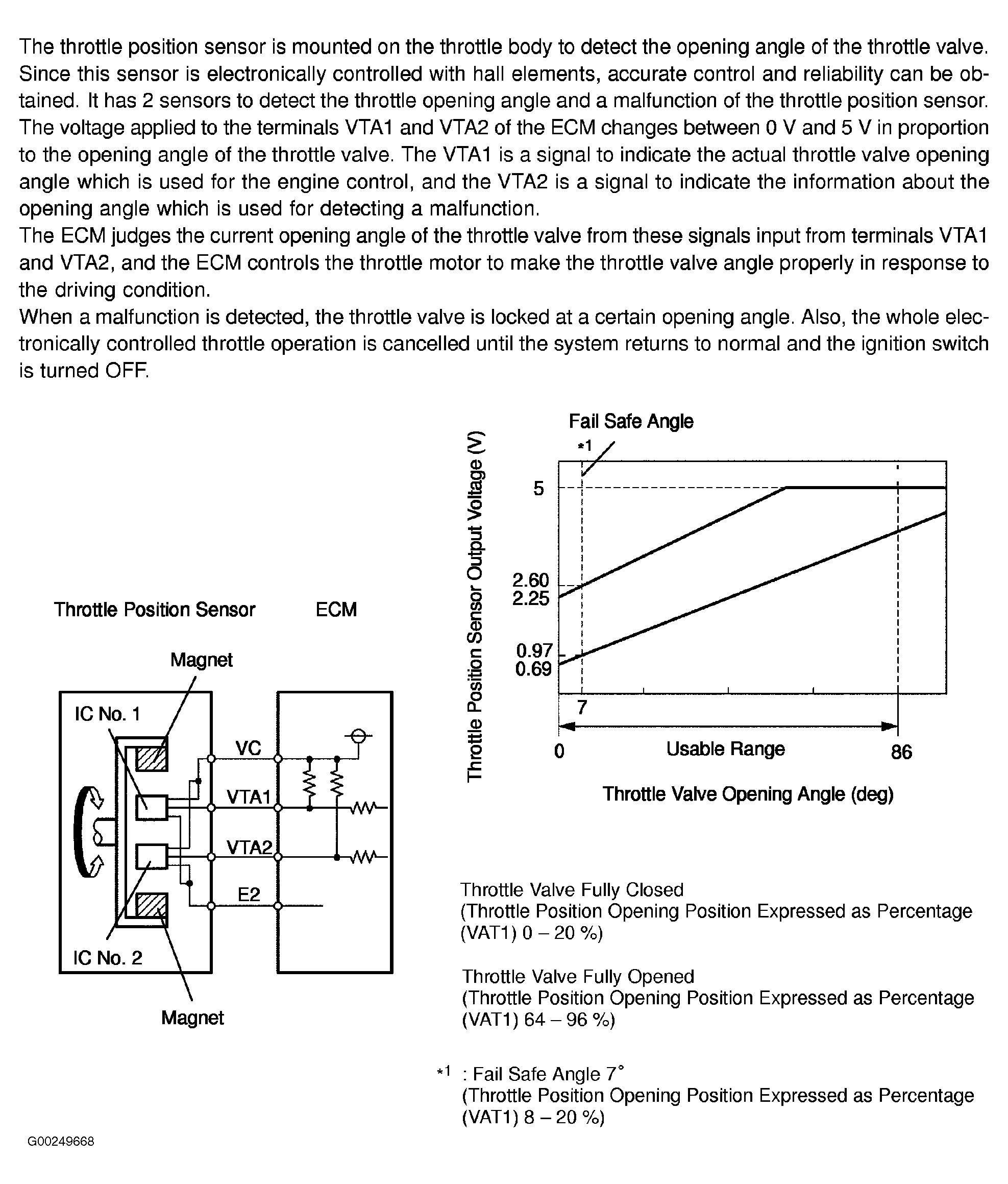

Fig 9: Inspecting Throttle Position Sensor (Celica 8 Of 9)

Fig 10: Inspecting Throttle Position Sensor (Celica 9 Of 9)
