Vehicle Intrusion Protection System - Diagnostics
›
Key Unlock Warning Switch Circuit
›
Wiring Diagram
Key Unlock Warning Switch Circuit: Wiring Diagram

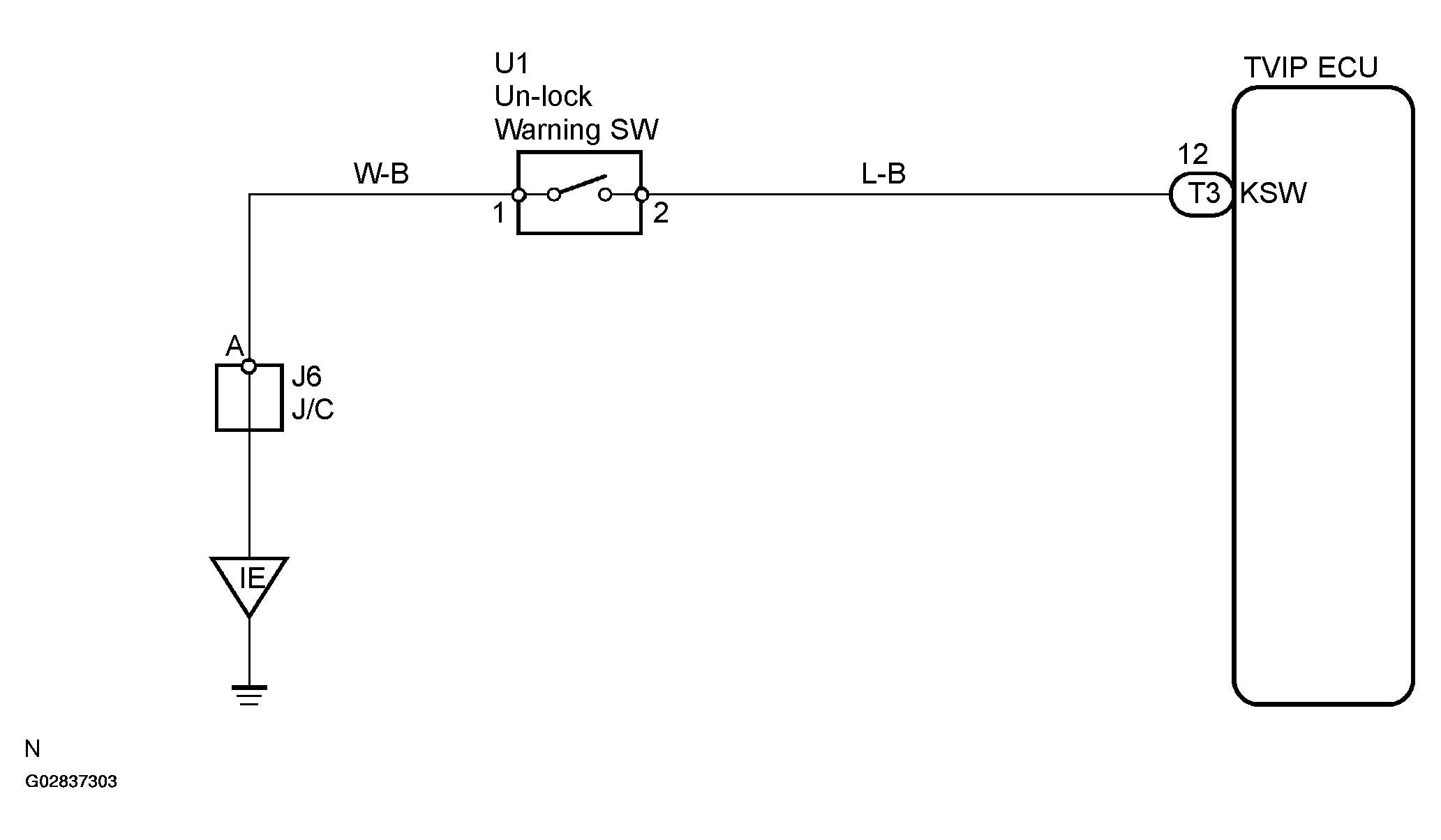

Fig 1: Wiring Diagram - Key Unlock Warning Switch Circuit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
