Vehicle Intrusion Protection System - Diagnostics
›
Light Control Switch Circuit
›
Wiring Diagram
Light Control Switch Circuit: Wiring Diagram

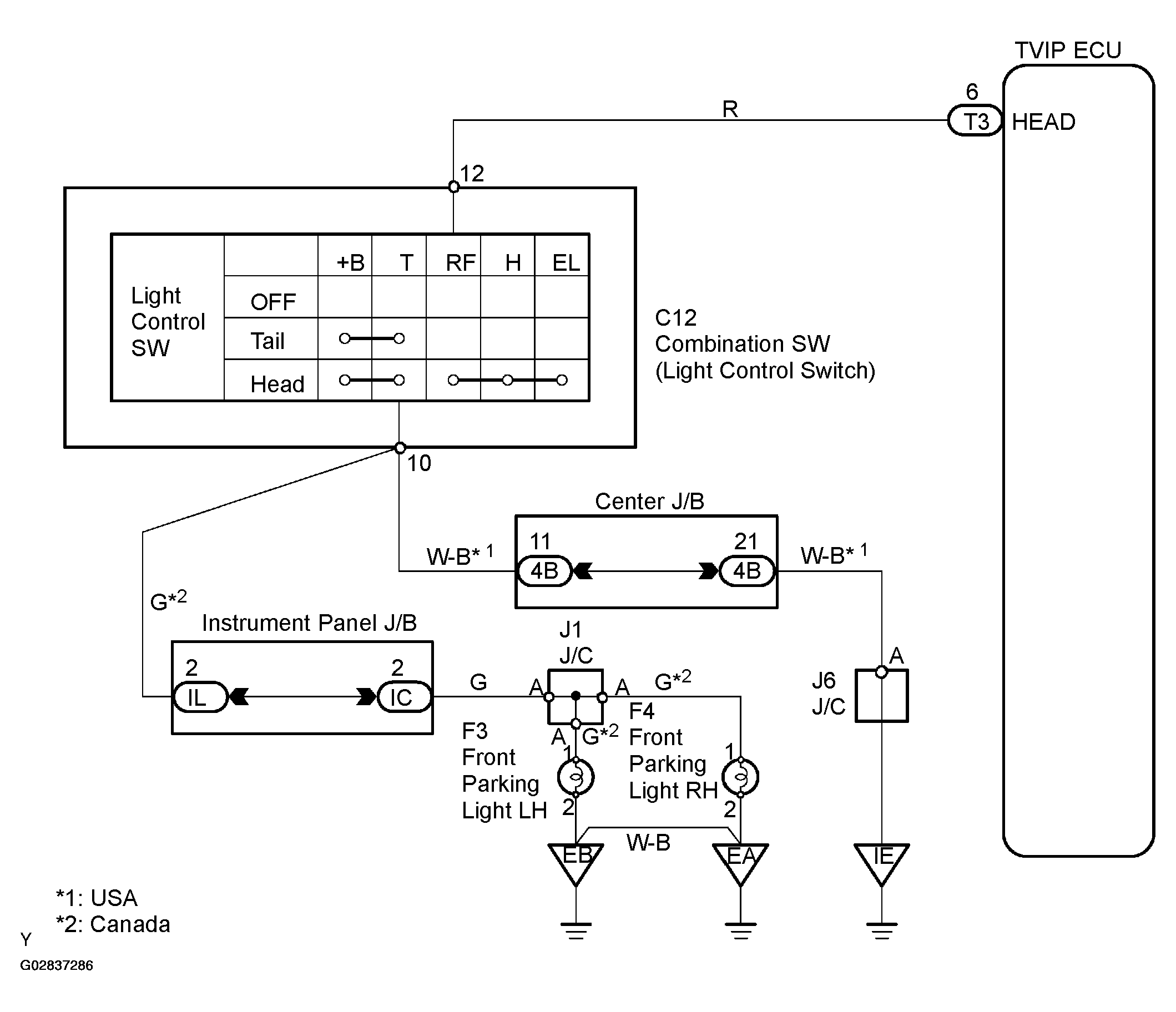

Fig 1: Wiring Diagram - Light Control Switch Circuit
