Problem Symptoms Table

Fig 1: Problem Symptoms Table - Power Window Control System

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

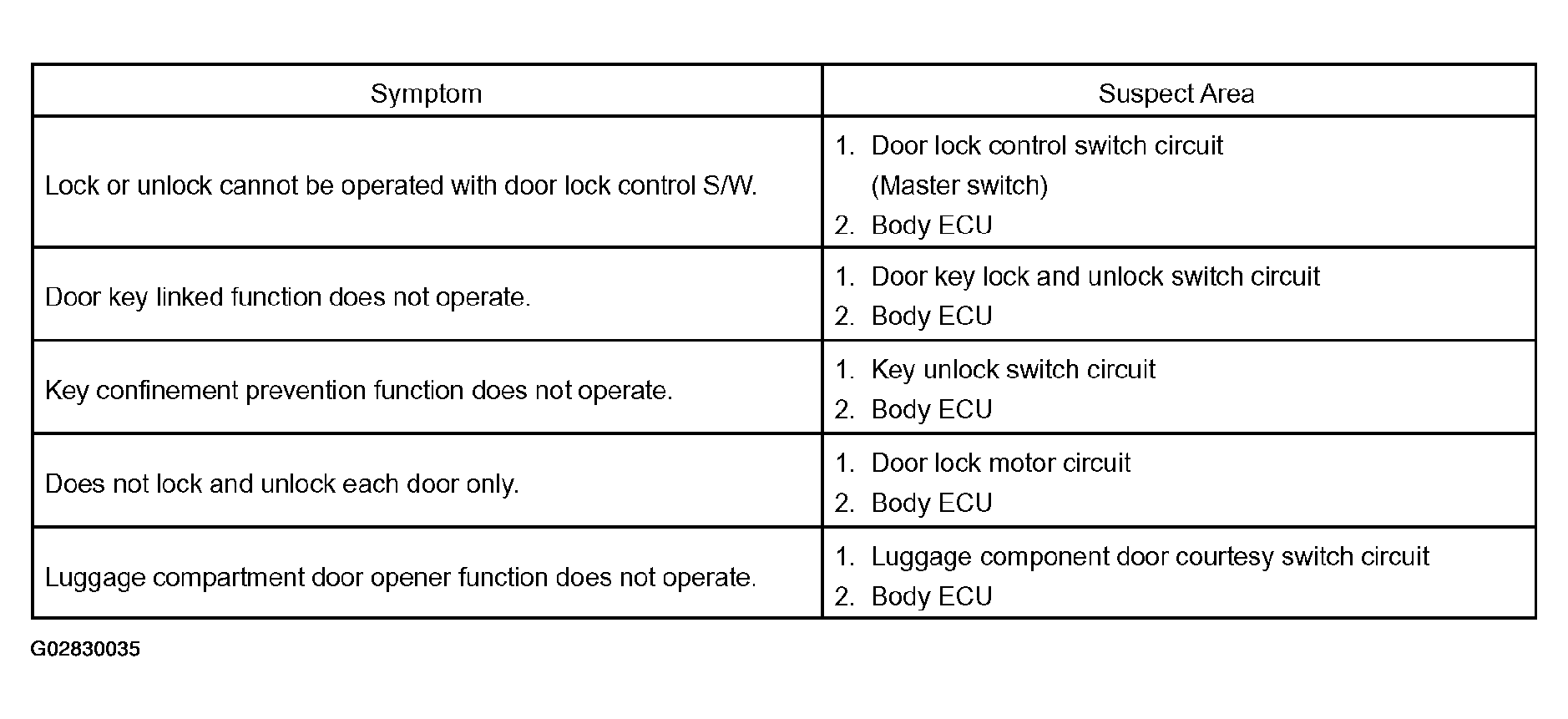

Fig 2: Problem Symptoms Table - Door Lock Control

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

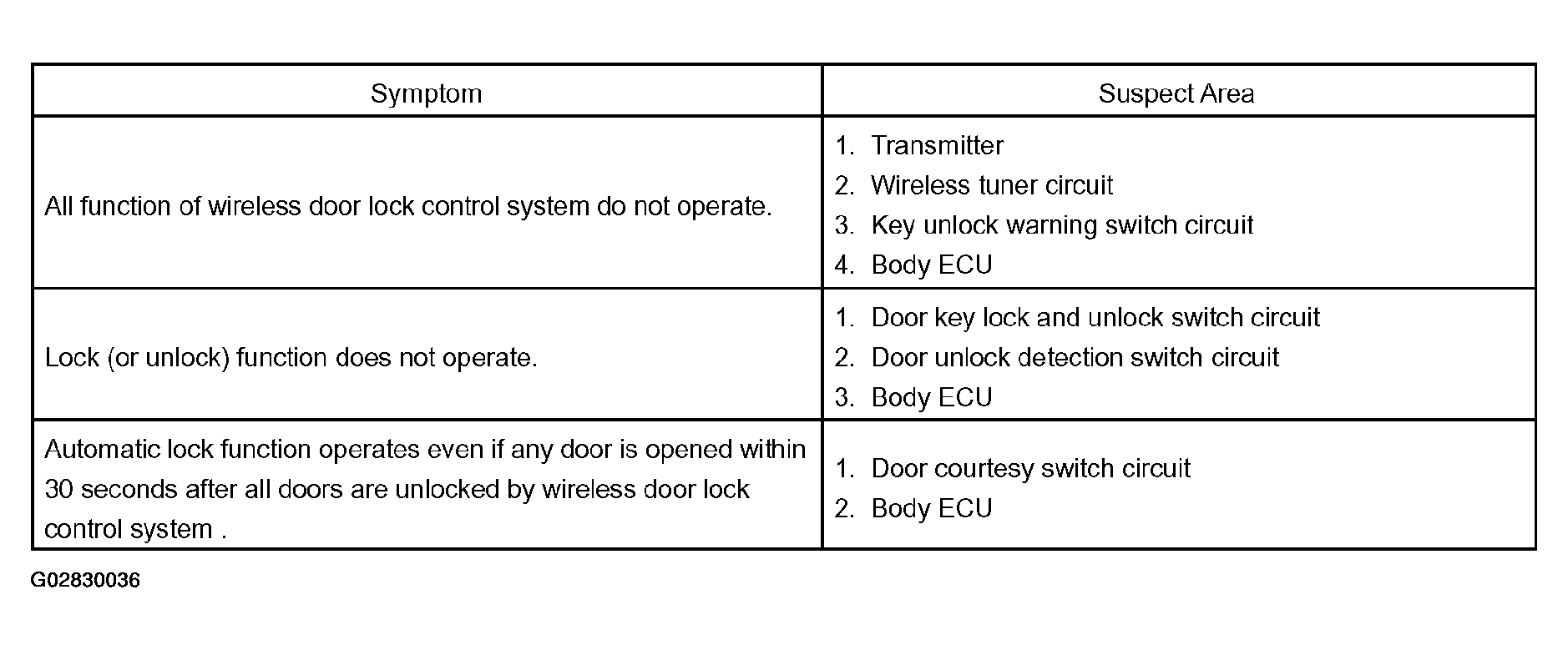

Fig 3: Problem Symptoms Table - Wireless Door Lock Control

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Problem Symptoms Table - Illuminated Entry

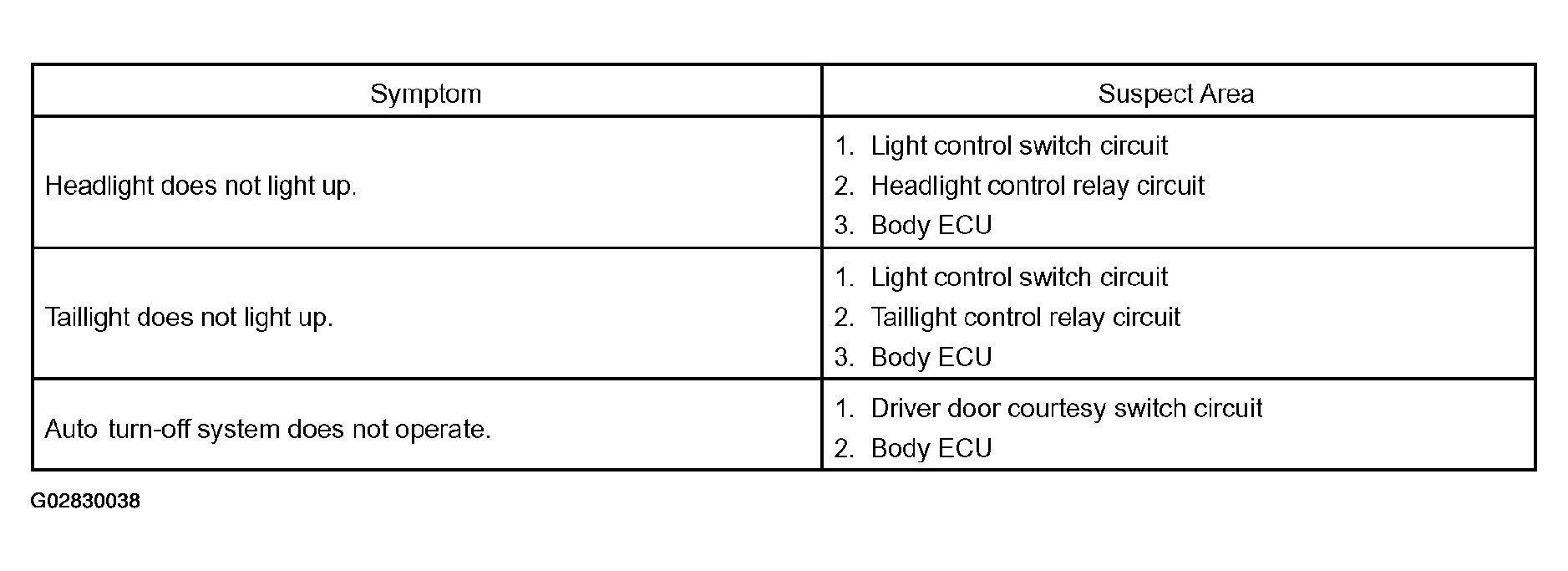

Fig 5: Problem Symptoms Table - Headlight And Taillight System

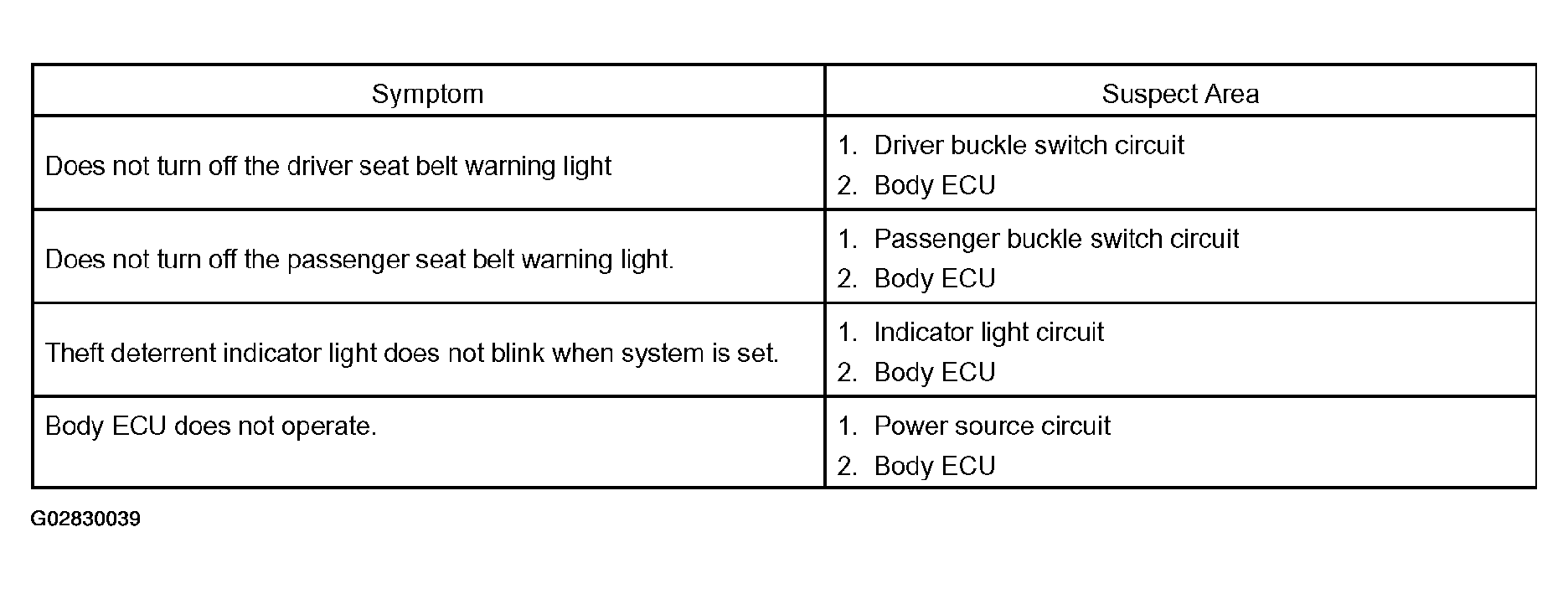

Fig 6: Problem Symptoms Table - Others
