Front Bumper: Components

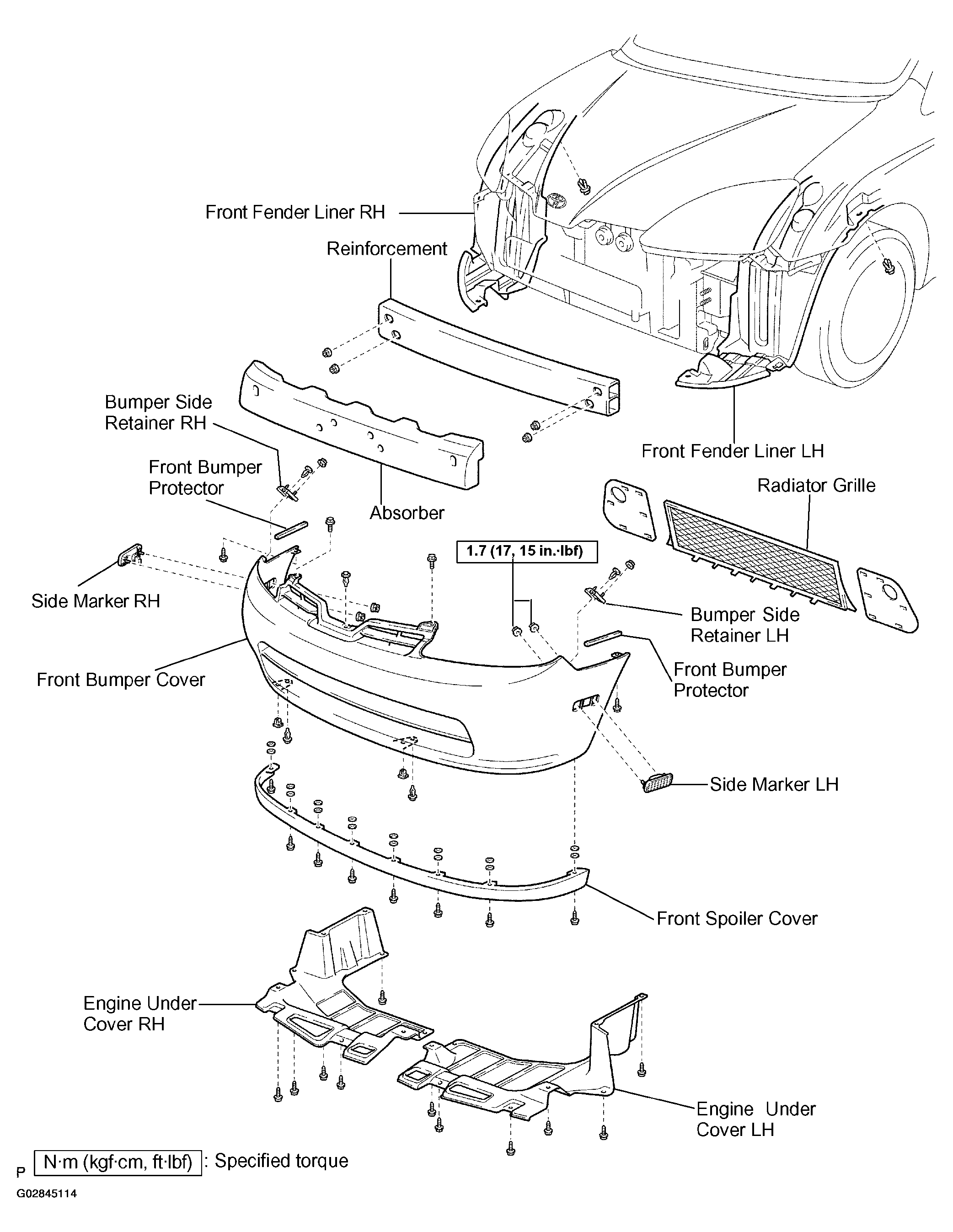

Fig 1: Identifying Components Of Front Bumper
G02845114Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
