Front Seat: Components

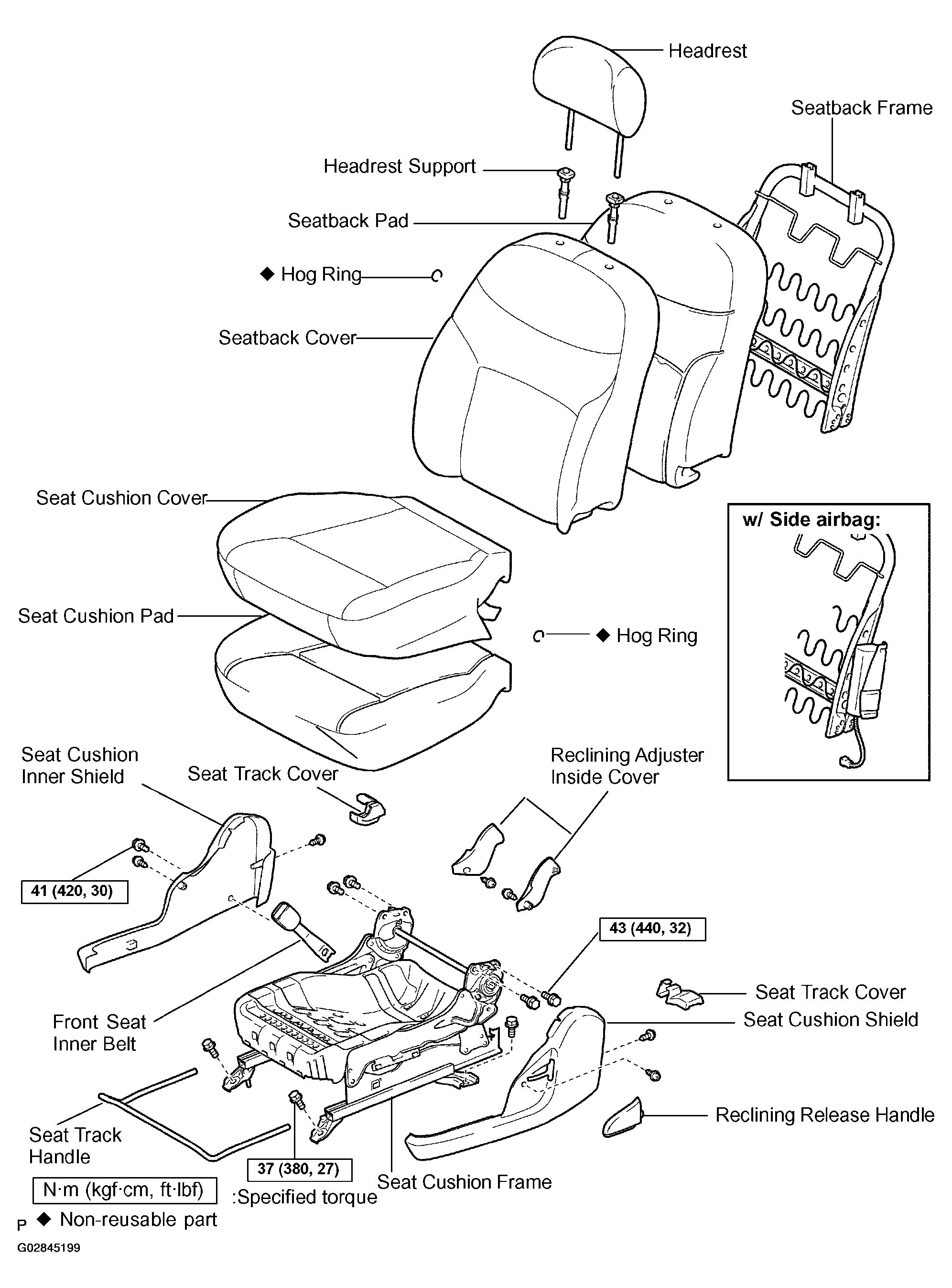

Fig 1: Identifying Front Seat Components
G02845199Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
