Front Seat: Disassembly

Remove the 2 screws and seat cushion shield as shown in Fig 1.

Fig 1: Removing Front Seat Cushion Shield

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the bolt and front seat inner belt.

Remove the 2 screws and seat cushion inner shield.

Remove the 4 bolts and seatback assembly.

Fig 2: Removing 4 Bolts And Seatback Assembly

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the clamp from wire harness of side airbag installed under the seat, then pull out the wire harness.

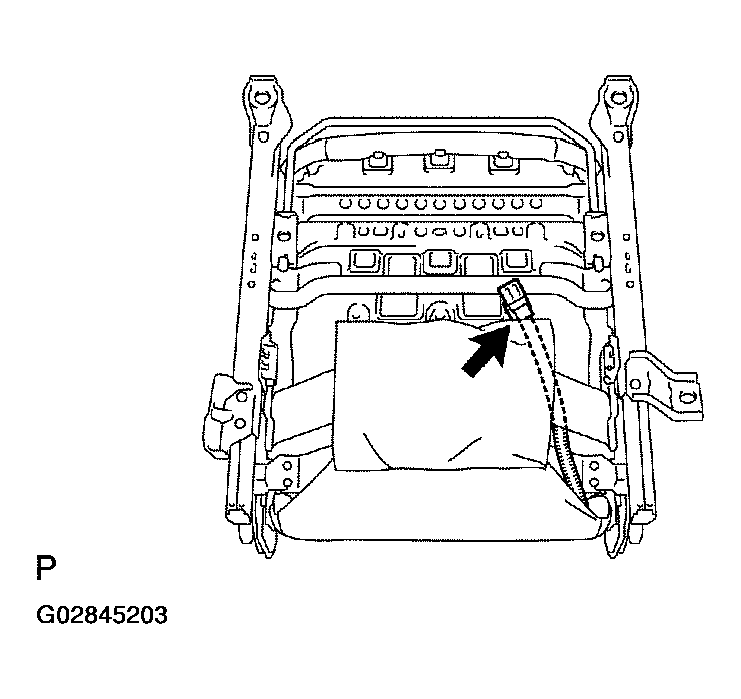

   Fig 3: Removing Seatback Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the side airbag connector from the under the seat.
3. Remove the 4 bolts and seatback assembly.

1. Remove the hog rings.

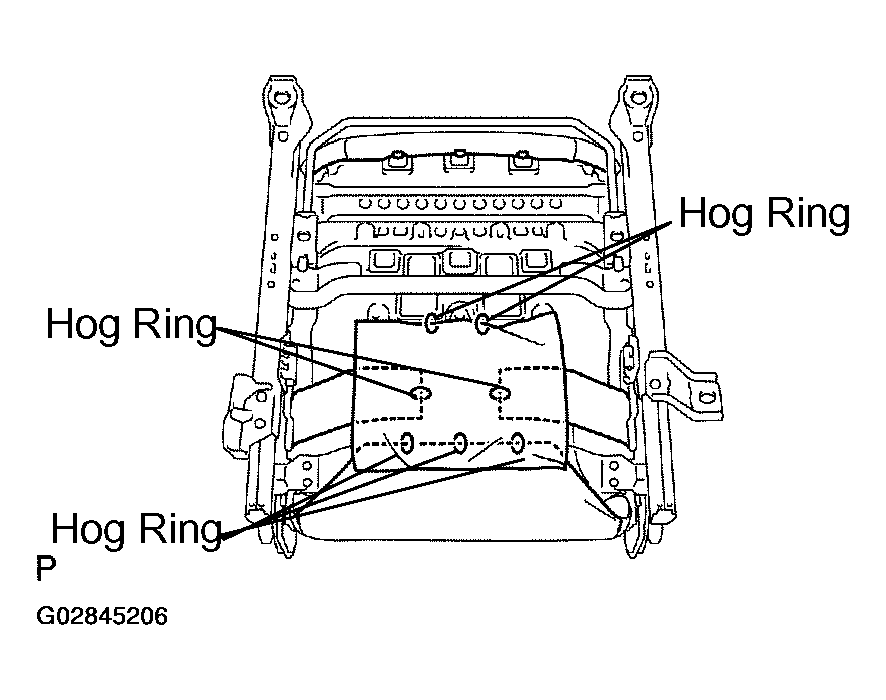

   Fig 4: Removing Seatback Cover

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the headrest supports.
3. Remove the seatback cover with pad from the seatback frame.
4. Remove the seatback cover from the seatback pad.

1. Remove the hog rings.
2. Remove seatback cover hook.
   Fig 5: Removing Seatback Cover From Seatback Pad

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the headrest supports.
4. Remove the seat back cover with pad from the seatback frame.
5. Remove the seatback cover from the seatback pad.

1. Remove the hog rings.

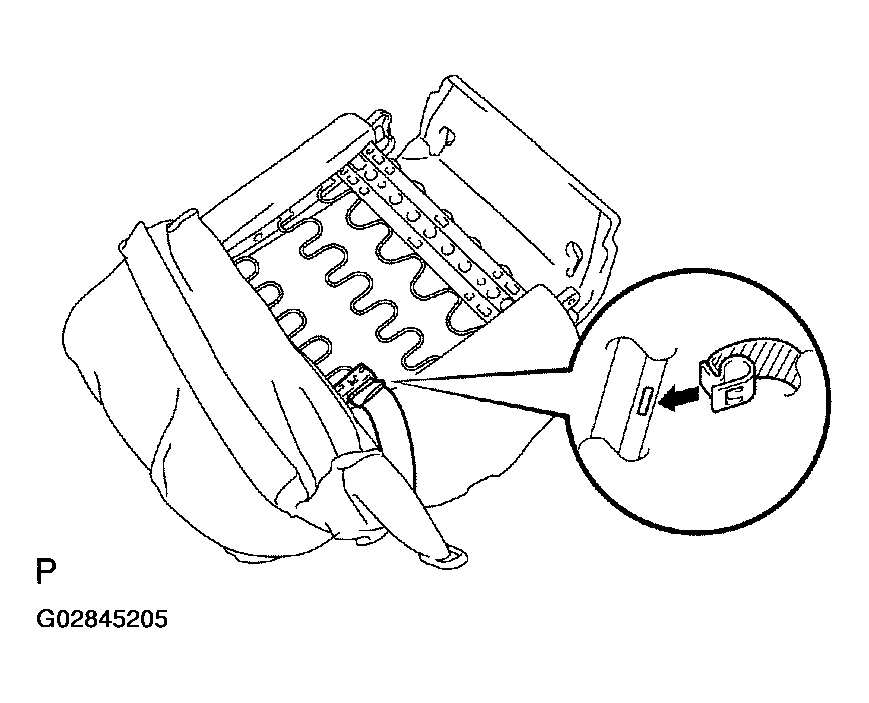

   Fig 6: Removing Seat Cushion Cover From Seat Cushion Pad

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disengage the seat cushion cover hooks and remove the seat cushion cover with pad from the seat cushion frame.

1. Remove the hog rings.
2. Remove the seat cushion cover from the seat cushion pad.

Remove the 2 screws and 2 reclining adjuster inside covers.

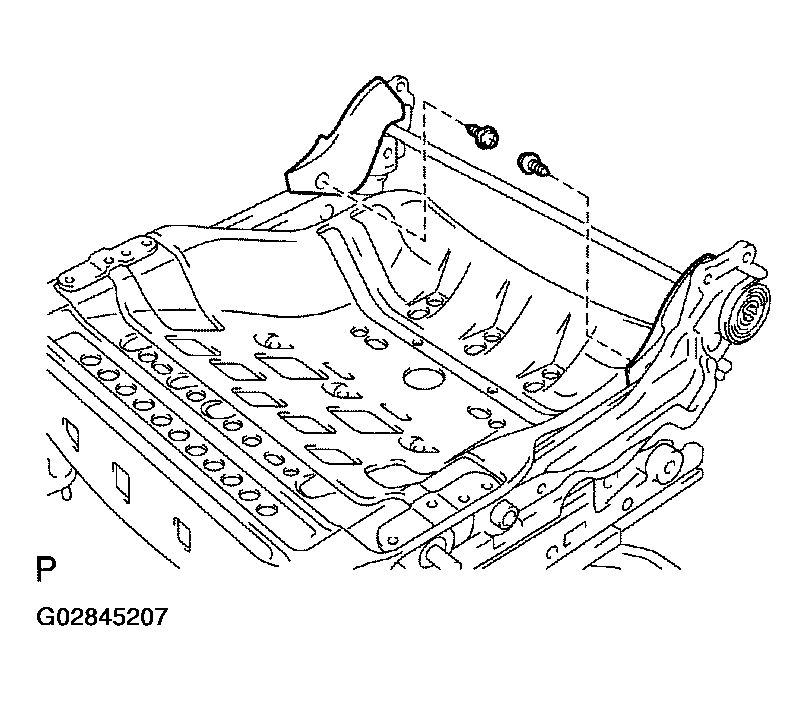

Fig 7: Removing Reclining Adjuster Inside Covers

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
