Front Seat: Reassembly

CAUTION: If the seatback frame with the side airbag assembly has been dropped, or there are cracks, dents or other defects in the case or connector of the side airbag assembly, replace the seatback frame with a new one.

INSTALL SET TRACK HANDLE
INSTALL RECLINING ADJUSTER INSIDE COVERS
Install the 2 screws and 2 reclining adjuster inside covers.

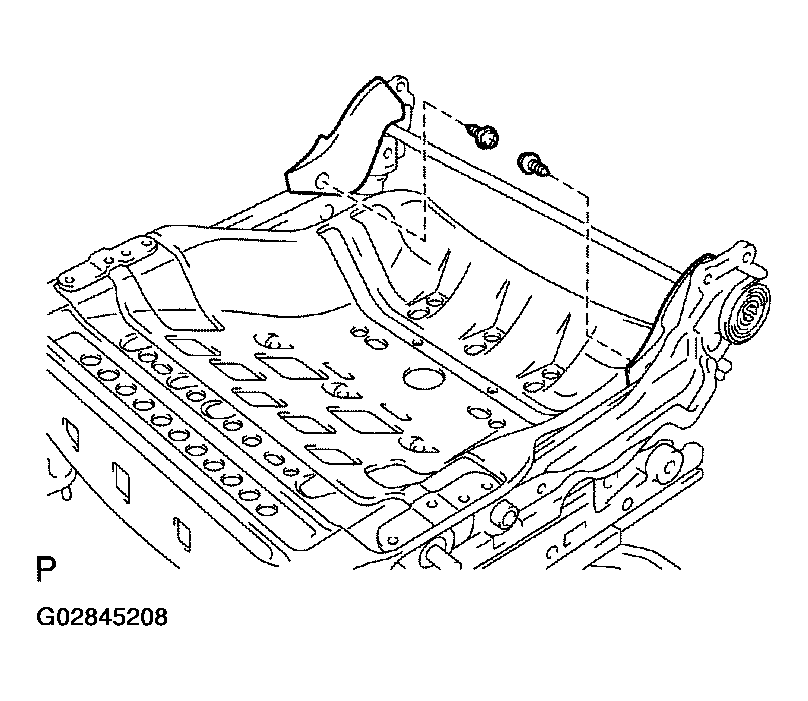

Fig 1: Installing Reclining Adjuster Inside Covers
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SEAT CUSHION COVER
Install the seat cushion cover with new hog rings to seat cushion pad.

NOTE:
When installing hog rings, take care to prevent wrinkles as little as possible.
INSTALL SEAT CUSHION COVER WITH PAD
Install the seat cushion cover with pad to the seat cushion frame with new hog rings.

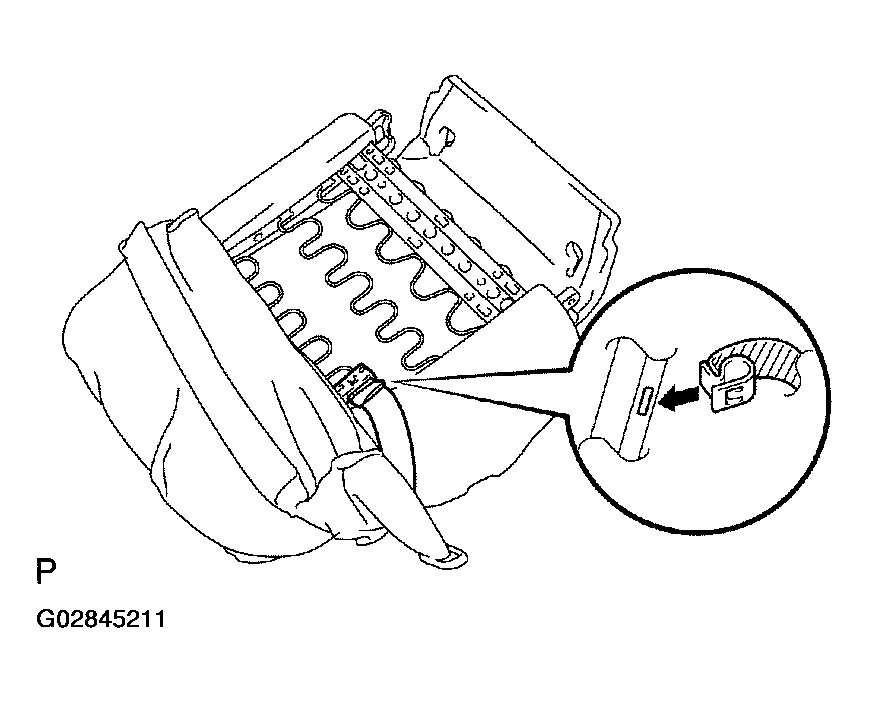

Fig 2: Installing Seat Cushion Cover With Pad To Seat Cushion Frame
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:
When installing hog rings, take care to prevent wrinkles as little as possible.
w/o Side airbag: INSTALL SEATBACK COVER
1. Install the seatback cover with new hog rings to the seatback pad.

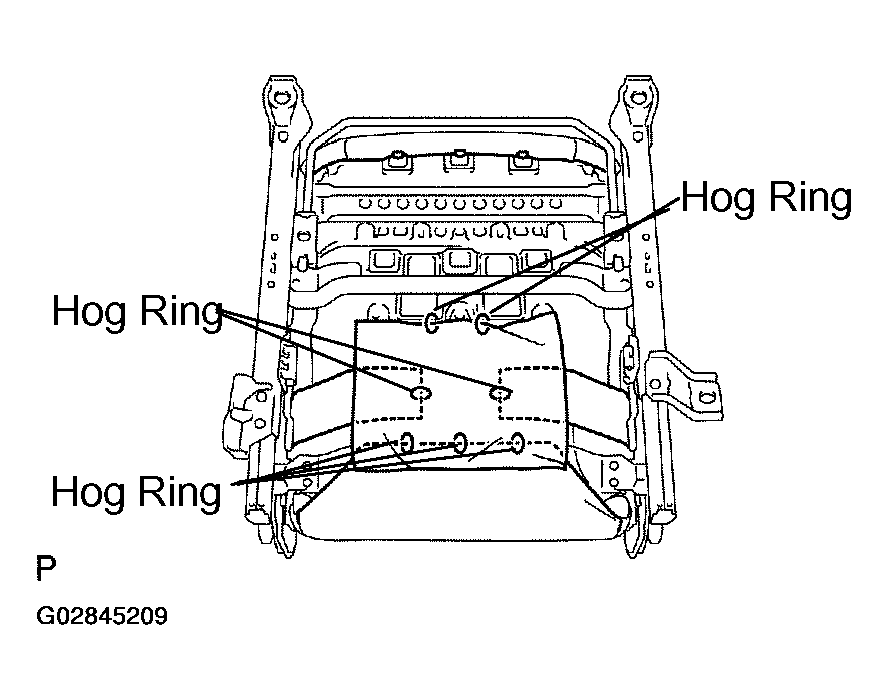

  Fig 3: Installing Seatback Cover To Seatback Pad
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the seatback cover with pad to the seatback frame with new hog ring.
3. Install the headrest supports.
w/Side airbag: INSTALL SEATBACK COVER
1. Install the seatback cover with new hog rings to the seatback pad.

  Fig 4: Installing Seatback Cover With Pad To Seatback Frame
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the seatback cover with pad to the seatback frame with new hog rings.
3. Install the seatback cover hook.
  CAUTION: Take care to hung the hook securely. Otherwise the seat cover slides, it might cause incorrect deploying.
4. Install the headrest supports.
w/o Side airbag: INSTALL SEATBACK ASSEMBLY
Install seatback assembly with 4 bolts.

Fig 5: Installing Seatback Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torque: 43 N.m (440 kgf.cm, 32 ft.lbf)
w/ Side airbag: INSTALL SEATBACK ASSEMBLY
1. Install the 4 bolts and seatback assembly.
2. Install the side airbag connector from the under the seat.
3. Install the clamp from wire harness of side airbag removed under the seat.

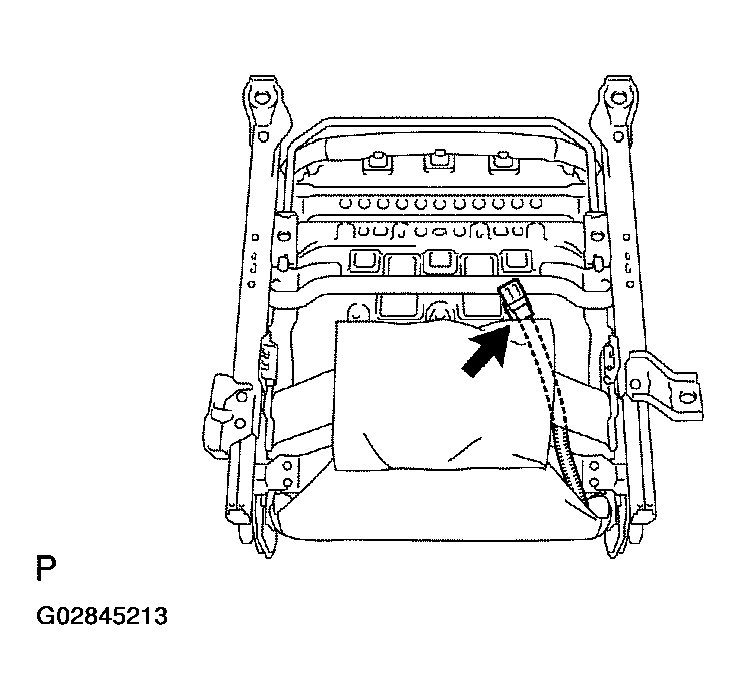

  Fig 6: Installing Clamp On Side Airbag Wire Harness
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SEAT CUSHION INNER SHIELD
INSTALL FRONT SEAT INNER BELT
Install the front seat inner belt with the bolt.

Torque: 41 N.m (420 kgf.cm, 30 ft.lbf)
INSTALL SEAT CUSHION SHIELD
Install the 2 screws and seat cushion shield as shown in Fig 7.

Fig 7: Installing 2 Screws And Seat Cushion Shield
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:
Install the seat cushion shield in order A, B as shown in Fig 7.
INSTALL RECLINING RELEASE HANDLE
INSTALL HEADREST
