HV Battery Control System - Diagnostics
›
Diagnostic Trouble Code Chart
Diagnostic Trouble Code Chart

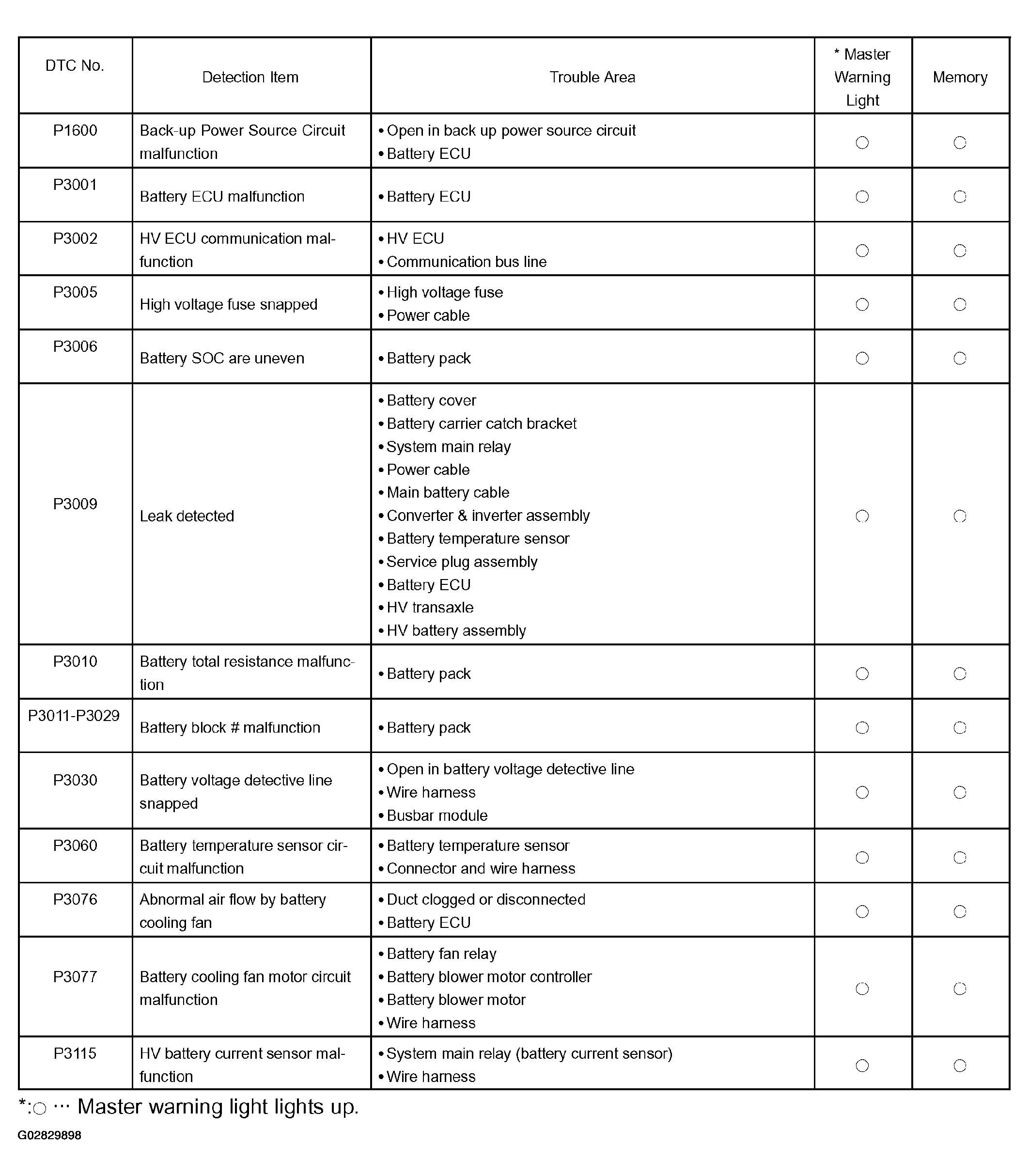

Fig 1: Diagnostic Trouble Code Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
