Terminals Of Ecu

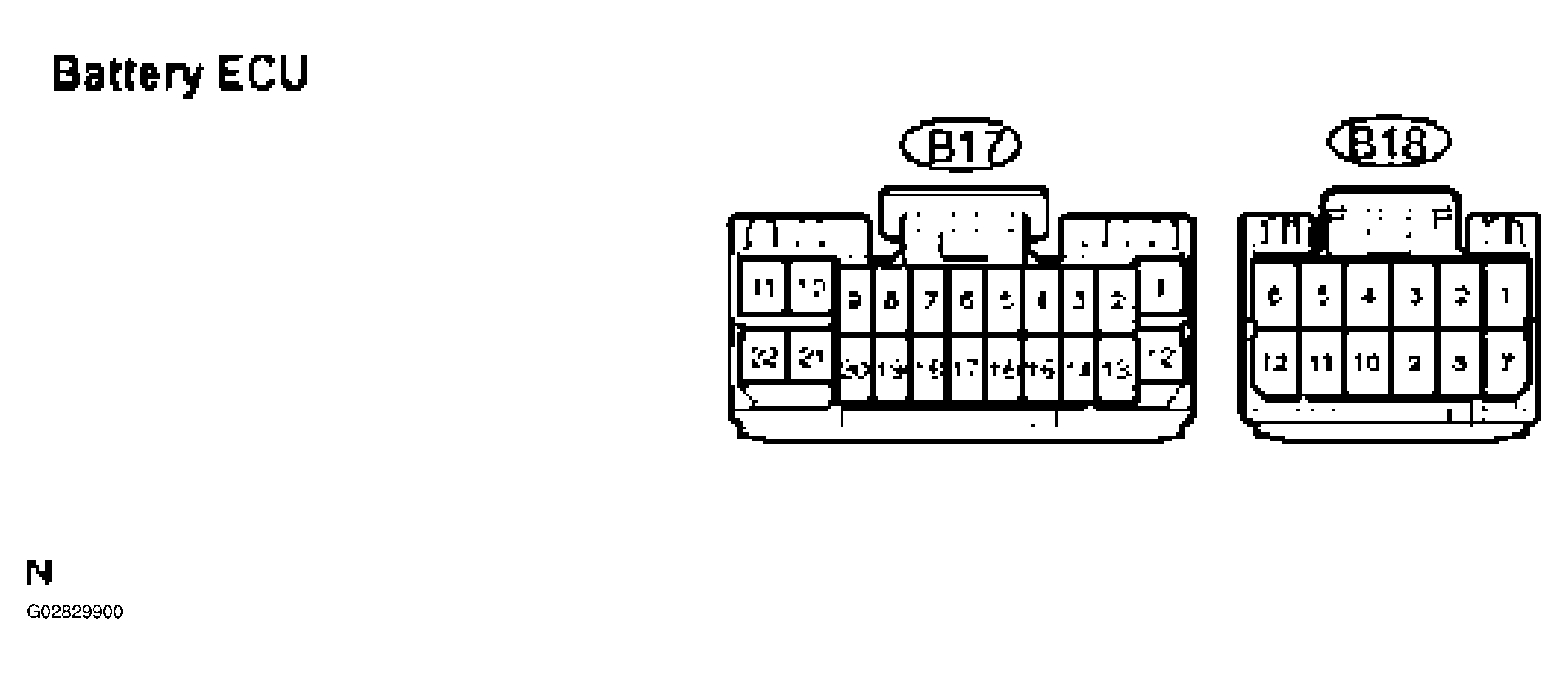

Fig 1: Identifying Battery ECU Terminals
G02829900Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

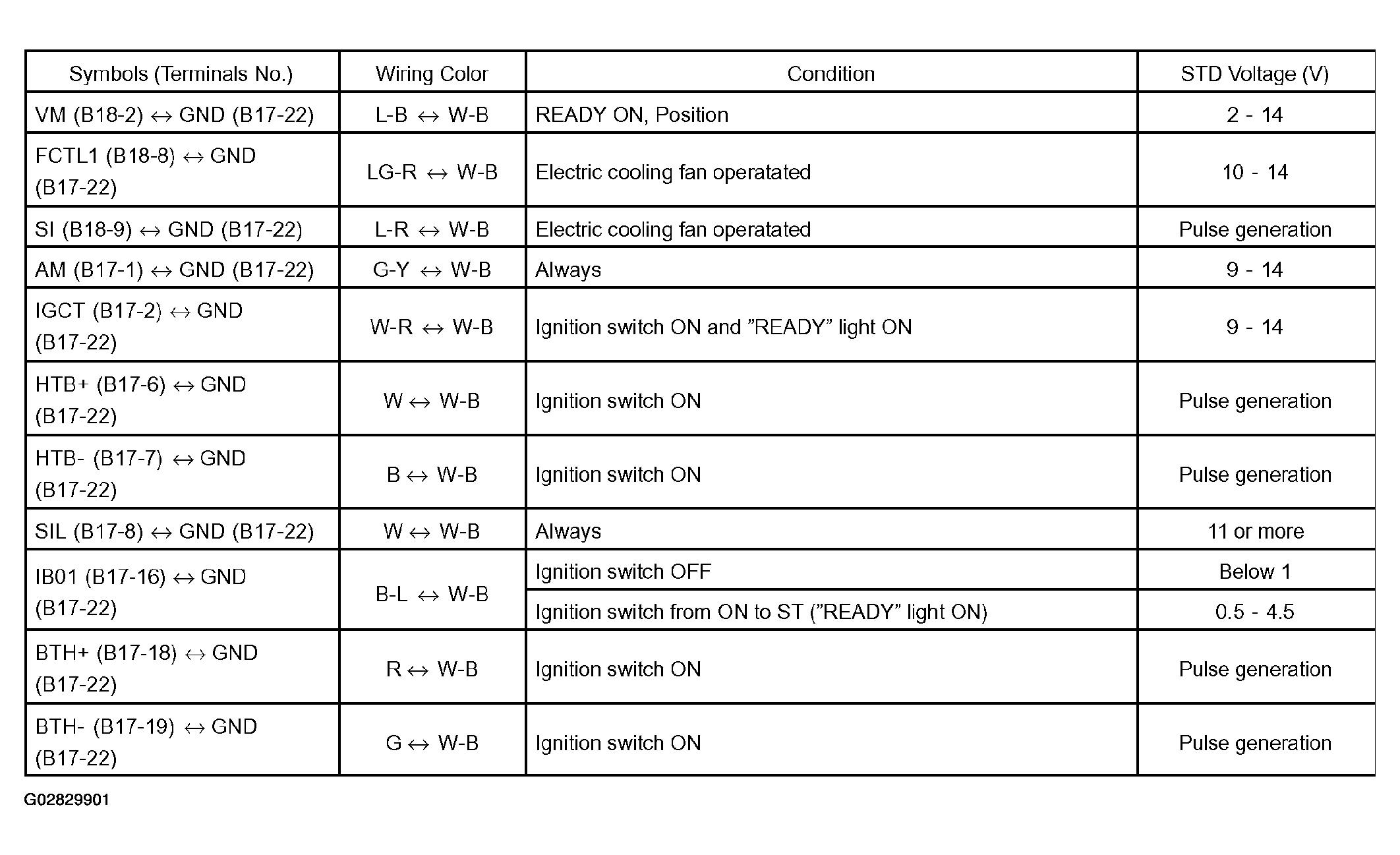

Fig 2: Battery ECU Pin Voltage Chart
G02829901Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
