Problem Symptoms Table

TROUBLESHOOTING:

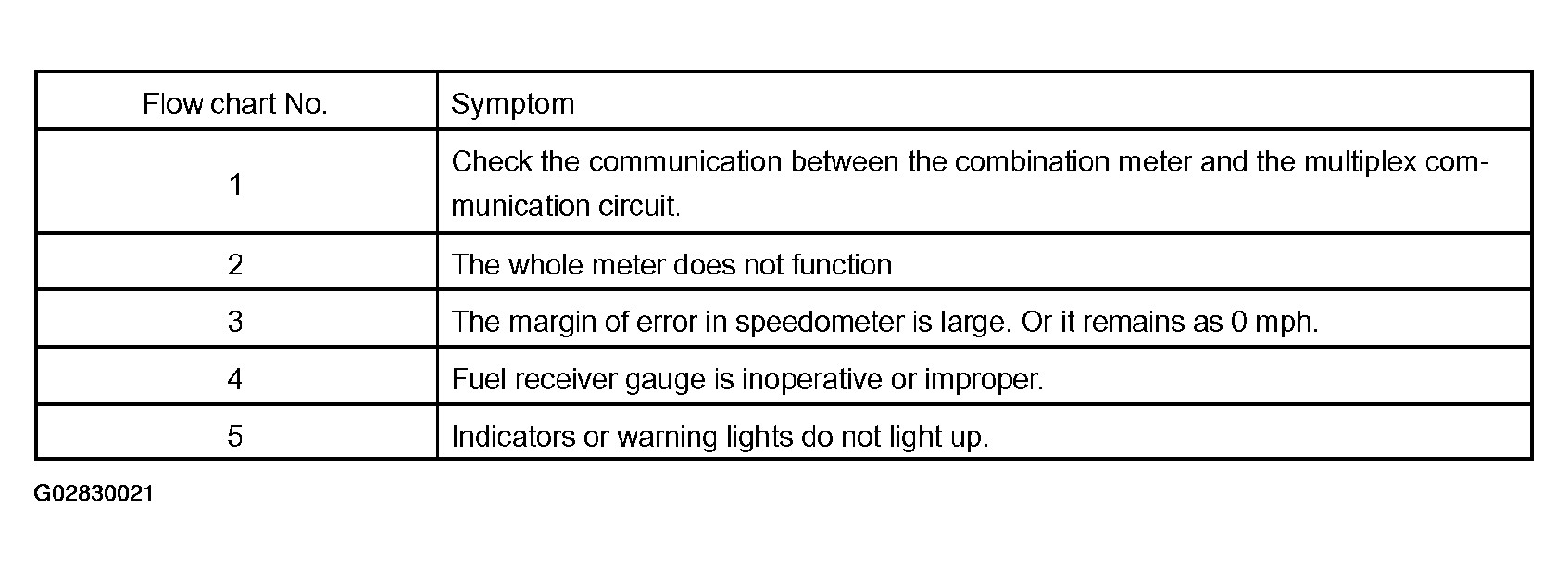

Fig 1: Problem Symptoms Table (Troubleshooting) Table
G02830021Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fuel gauge:

Fig 2: Problem Symptoms Table (Fuel Gauge) Table
G02830022Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

General:

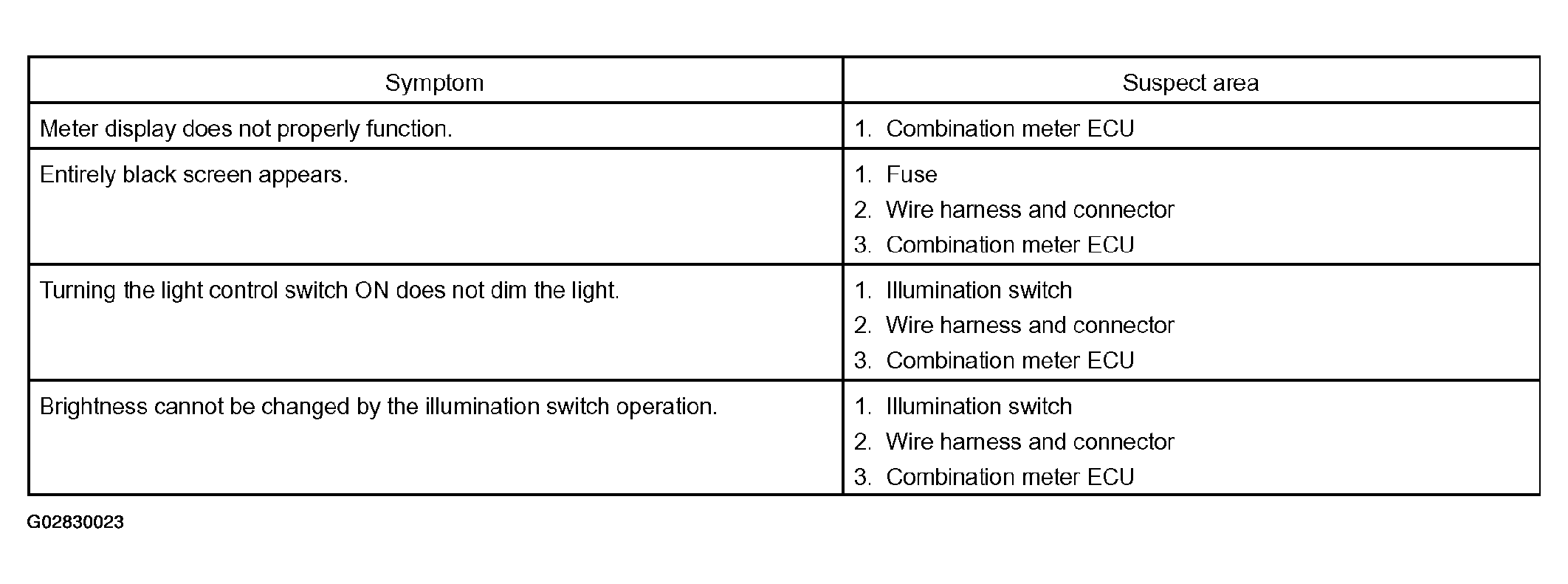

Fig 3: Problem Symptoms Table (General) Table
G02830023Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Speedometer:

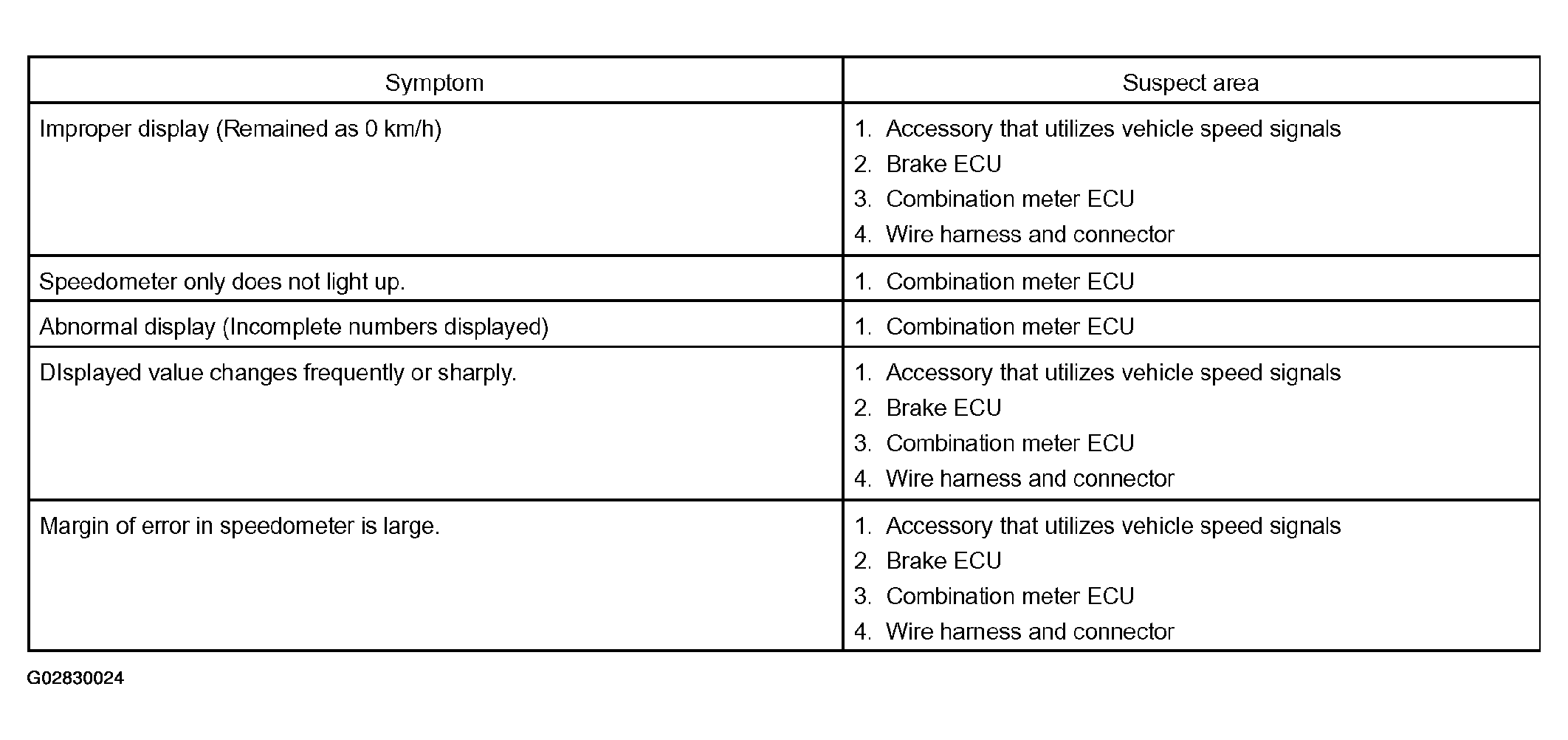

Fig 4: Problem Symptoms Table (Speedometer) Table
G02830024Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ODO/TRIP Meter:

PROBLEM SYMPTOMS TABLE - ODO/TRIP METER

Symptom Suspect area
ODO/TRIP only does not light up.
  1. Combination meter ECU
Abnormal display (Incomplete number displayed)
  1. Combination meter ECU
Both meters do not integrate values. (When speedometer is normal)
  1. Combination meter ECU
Trip meter only does not integrate values.
  1. ODO/TRIP switch
  2. Combination meter ECU
Trip meter cannot be reset.
  1. ODO/TRIP switch
  2. Combination meter ECU
Display cannot be shifted among ODO, TRIPA and TRIPB.
  1. ODO/TRIP switch
  2. Combination meter ECU
Without resetting, the display returns to 0.0 km.
  1. ODO/TRIP switch
  2. +B wire harness
  3. Combination meter ECU
Error of accumulated distance is large.
  1. Accessory that utilizes vehicle speed signals.
  2. GND wire harness
  3. Brake ECU
  4. Wire harness and connector
  5. Combination meter ECU

Others:

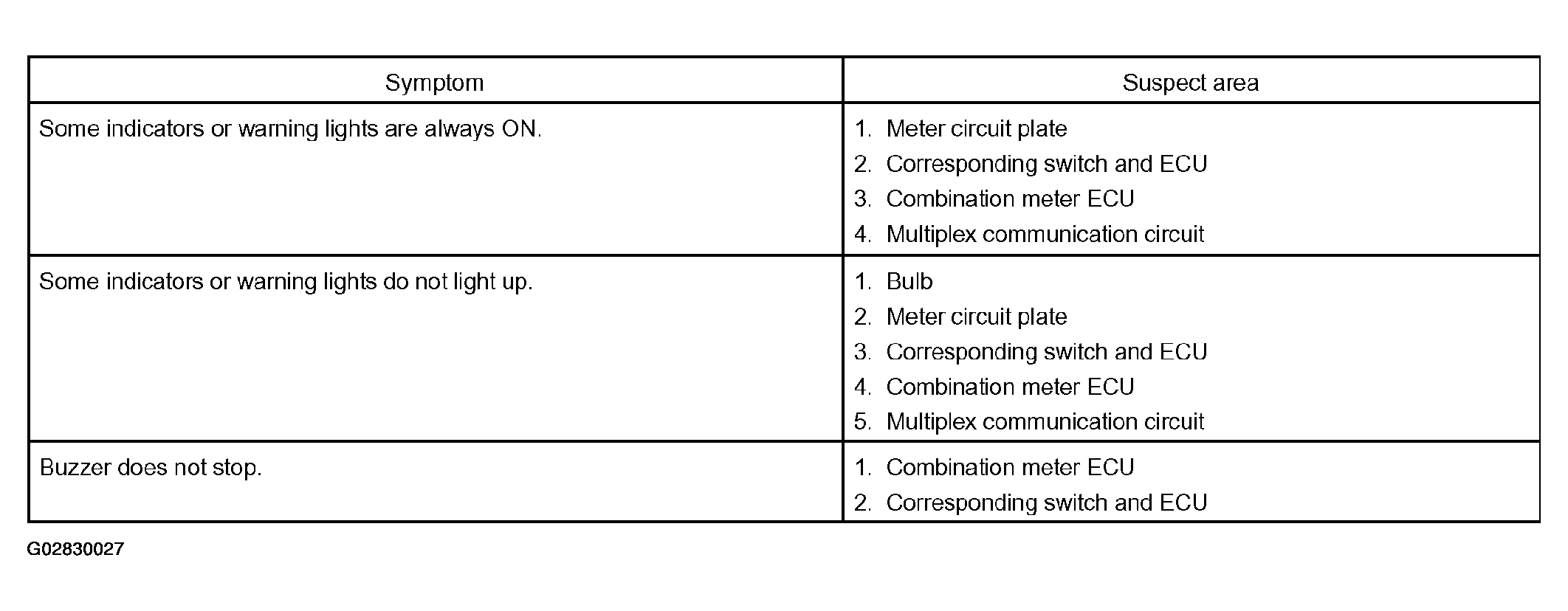

Fig 5: Problem Symptoms Table Others
G02830027Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
