Combination Meter: Circuit

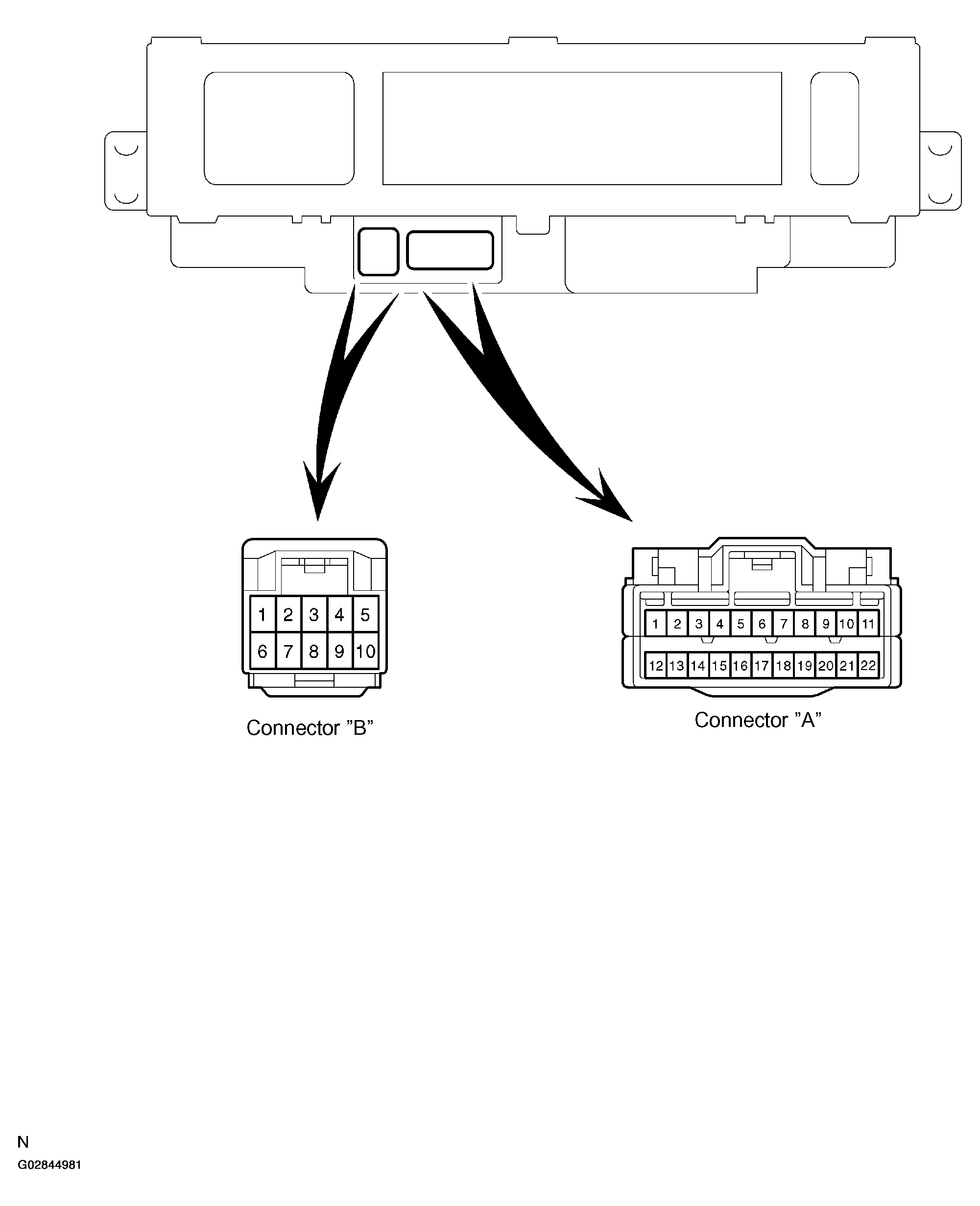

Fig 1: Identifying Combination Meter Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

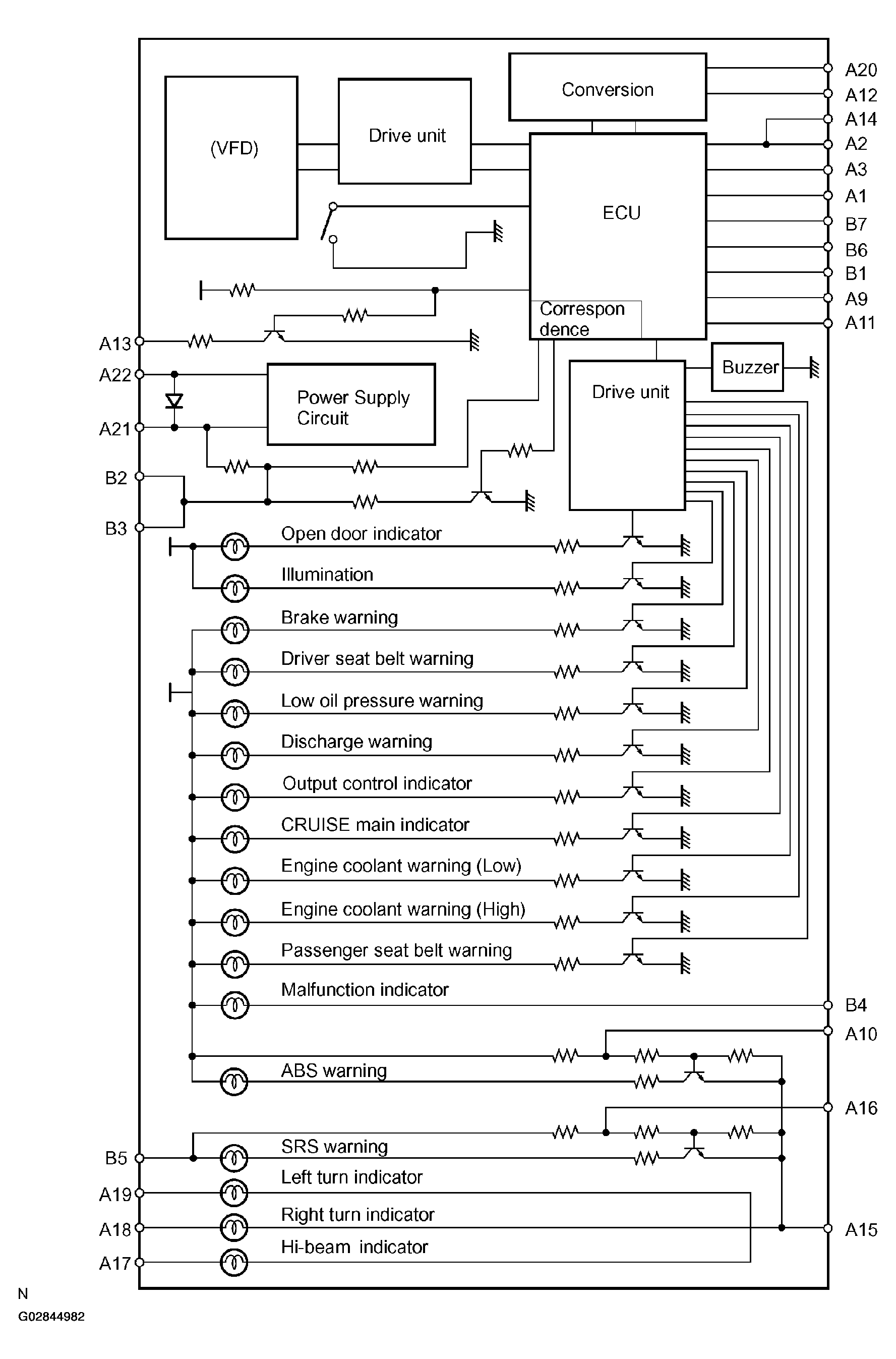

Fig 2: Combination Meter Circuit Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

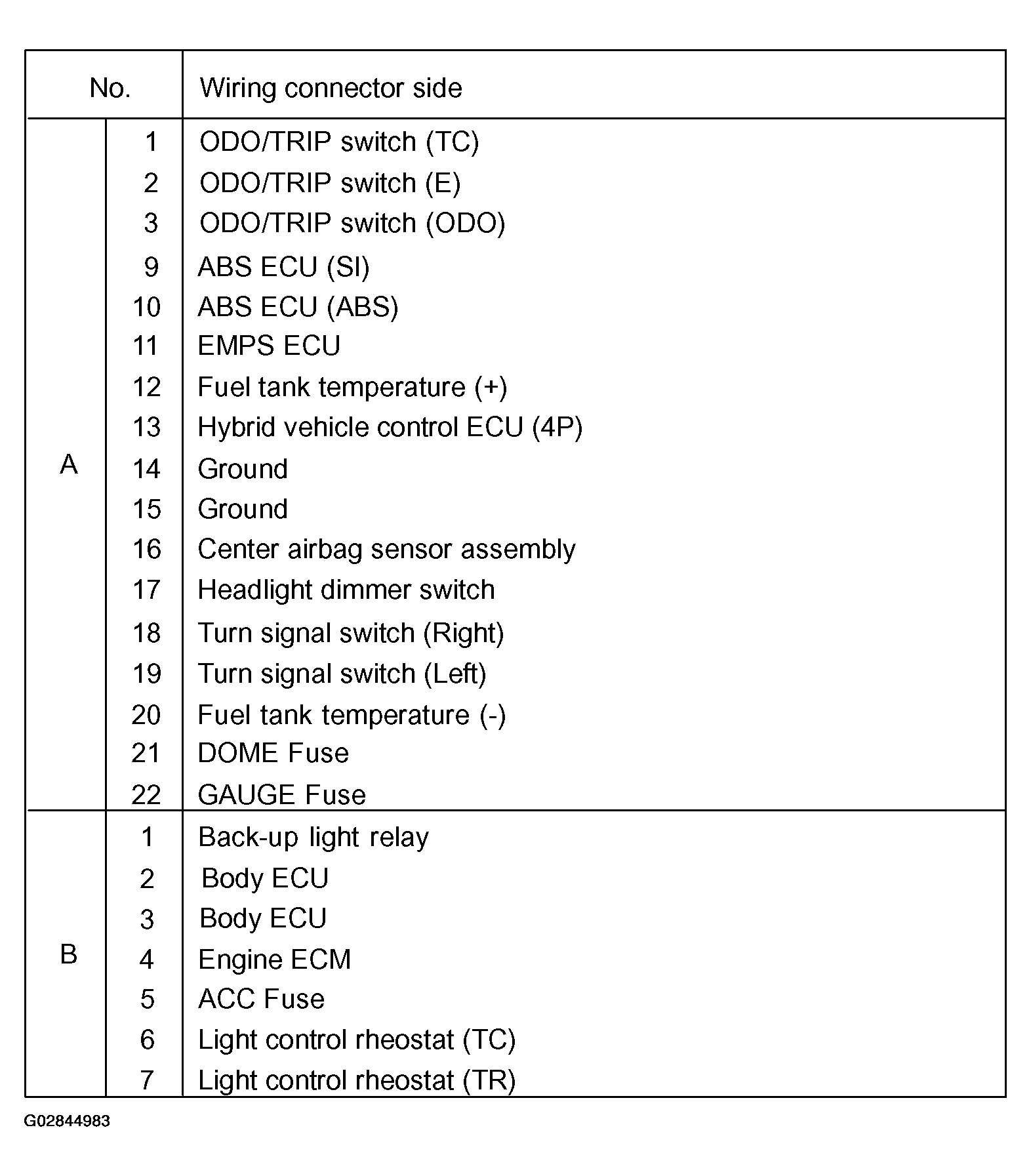

Fig 3: Combination Meter Circuit Identification

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
