Inspection Procedure

Combination meter is located top center of dashboard. To inspect combination meter circuit and speedometer (on-vehicle), see Fig 1 & Fig 2 .

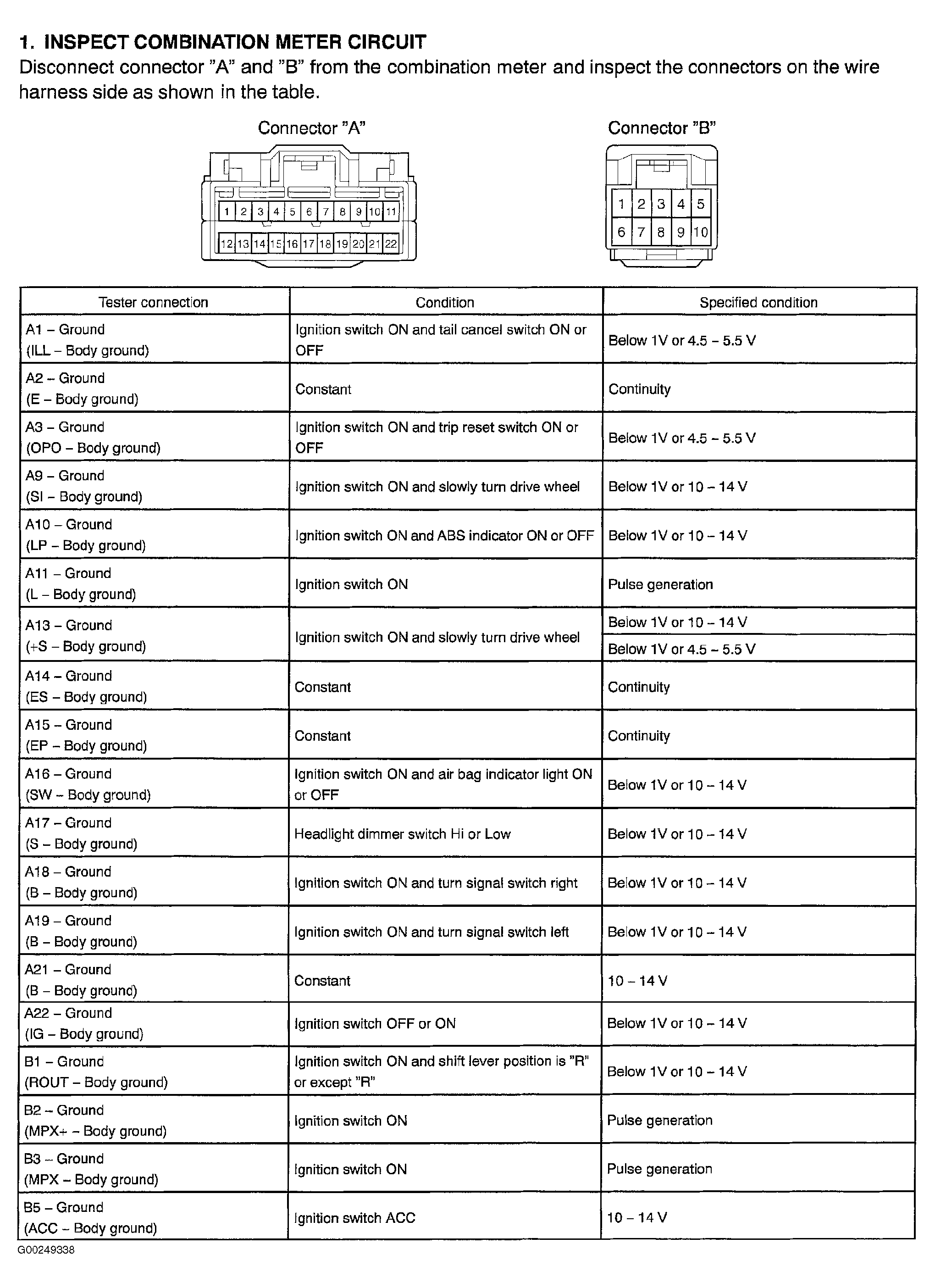

Fig 1: Combination Meter Circuit Diagnostic Procedure (Step 1)
