DTC P0420: Catalyst System Efficiency Below Threshold
›
Confirmation Driving Pattern
Confirmation Driving Pattern
For confirmation driving pattern procedure, see
Fig 1
.

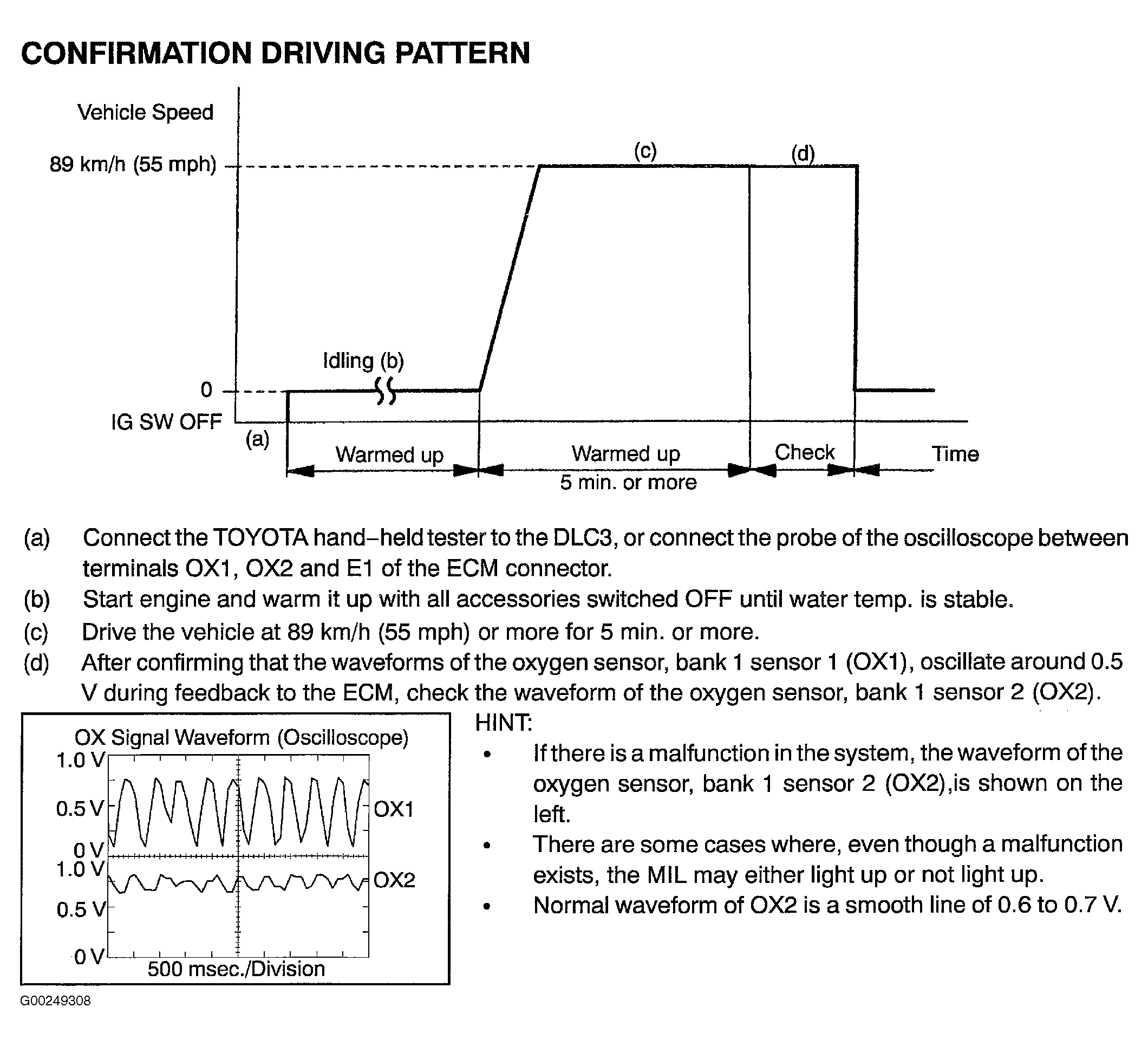

Fig 1: Confirmation Driving Pattern
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
