Circuit Description

For circuit description, see Fig 1.

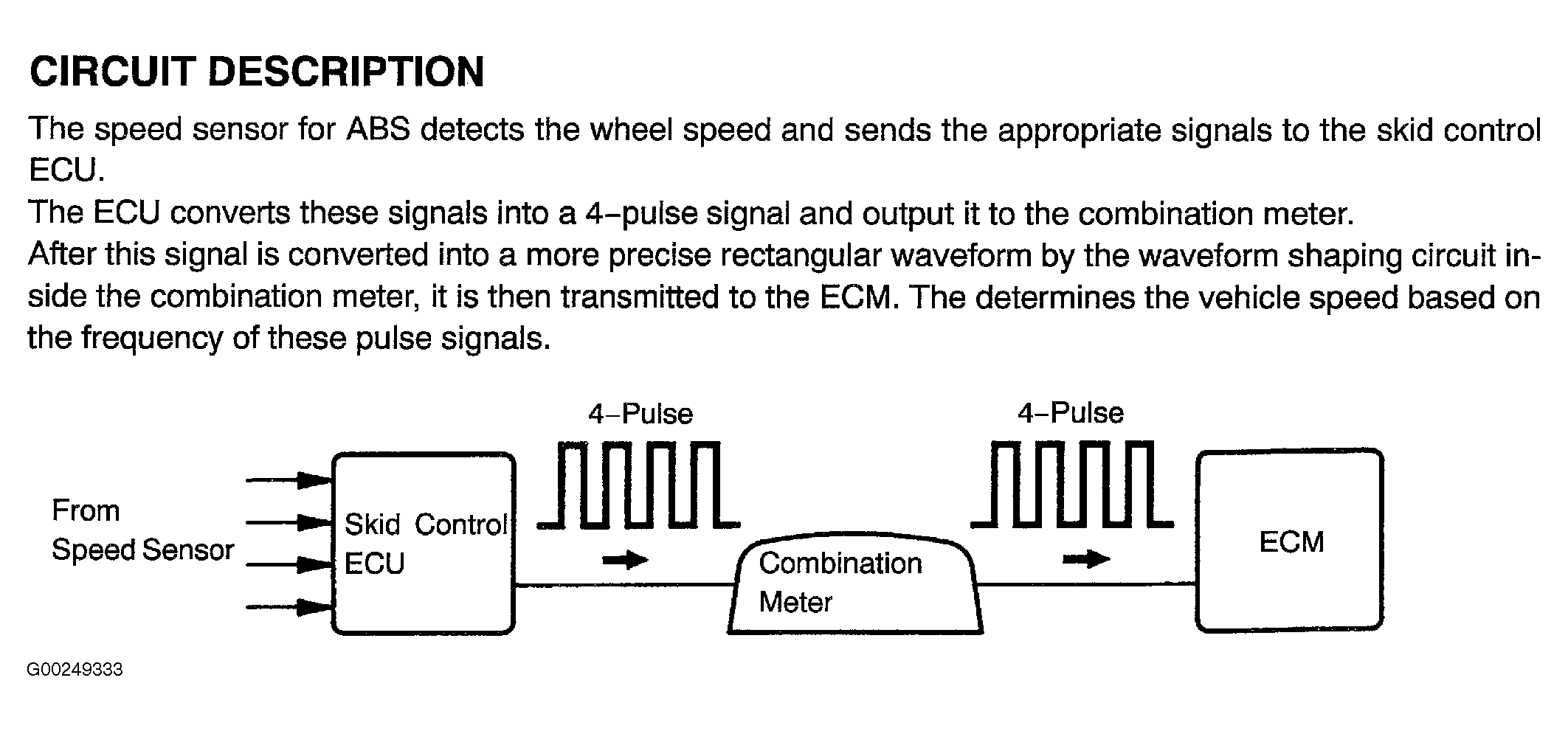

Fig 1: Circuit Description
G00249333Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
