Service Plug
›
Inspection
›
Check Continuity
Check Continuity
Using an ohmmeter, check continuity between the terminals.
SPECIFIED CONDITION
Service plug lever
Specified condition
Close
Continuity
Stand up
No continuity

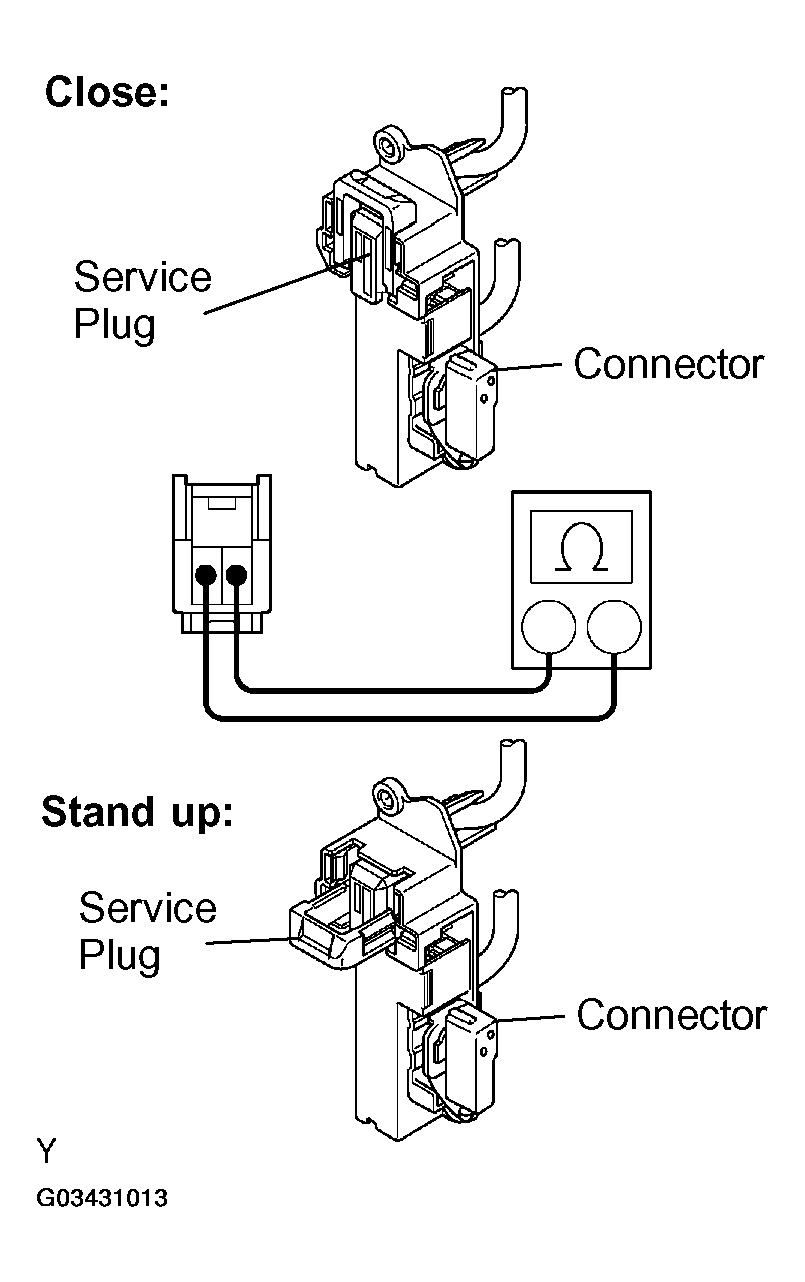

Fig 1: Checking Continuity Between Terminals Using Ohmmeter
