Engine Control System
›
HV Battery
›
Components
HV Battery: Components

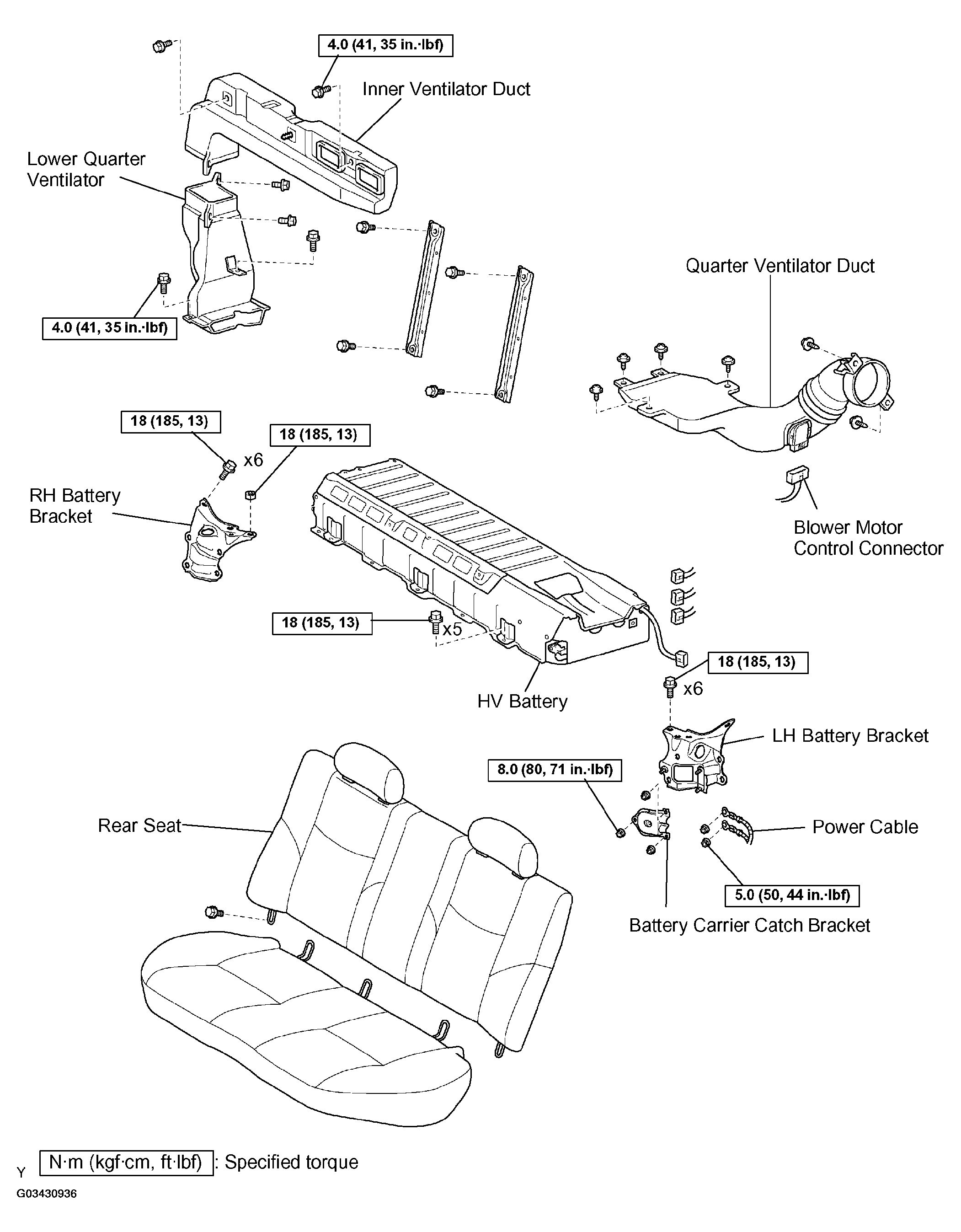

Fig 1: Identifying HV Battery Components (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

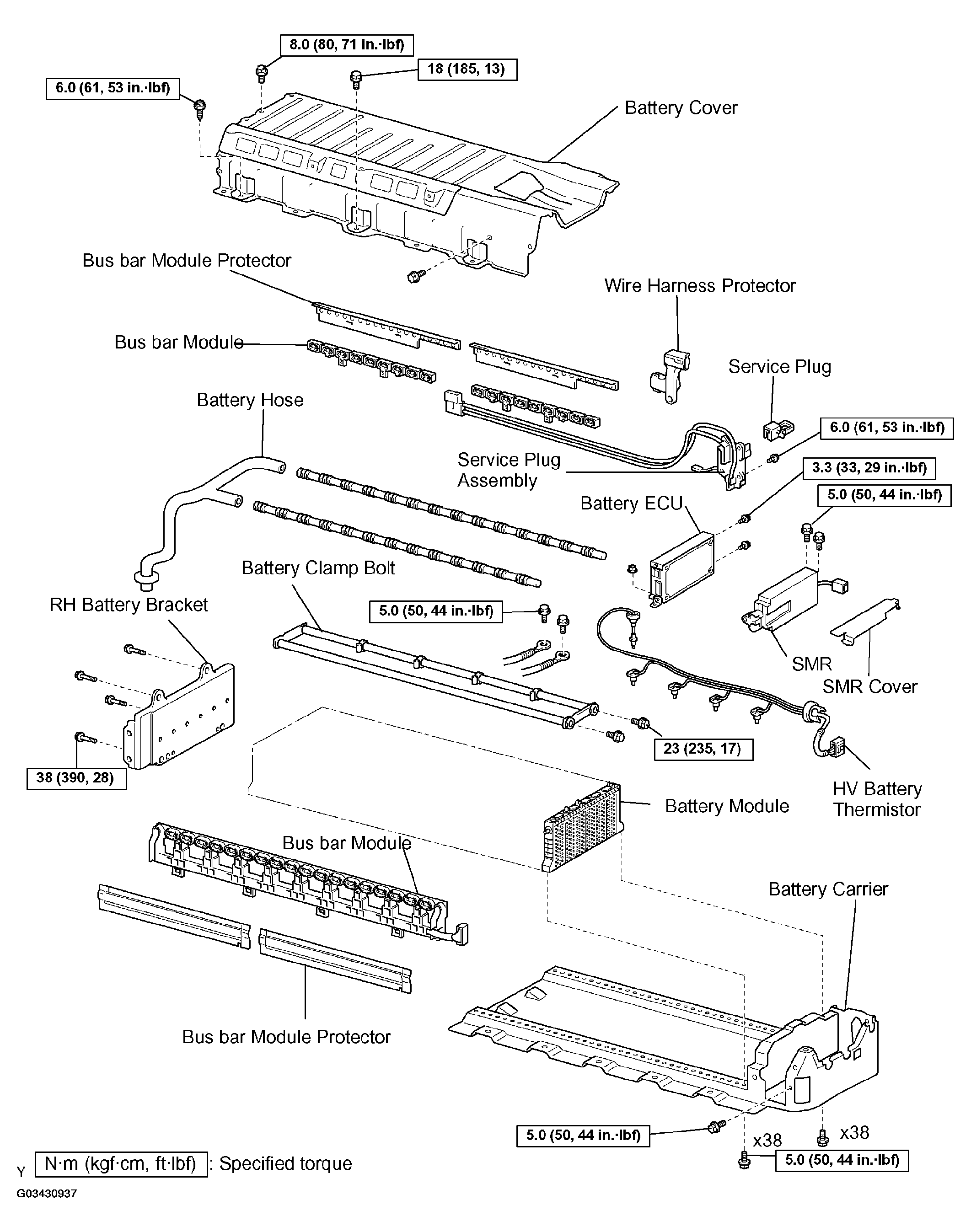

Fig 2: Identifying HV Battery Components (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
