Inspect Speedometer On-Vehicle

WARNING: This page is about a different car, the 2002 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Tire wear and tire over or under inflation will increase the indication error.

Using a speedometer tester, inspect the speedometer for allowable indication error and check the operation of the odometer.

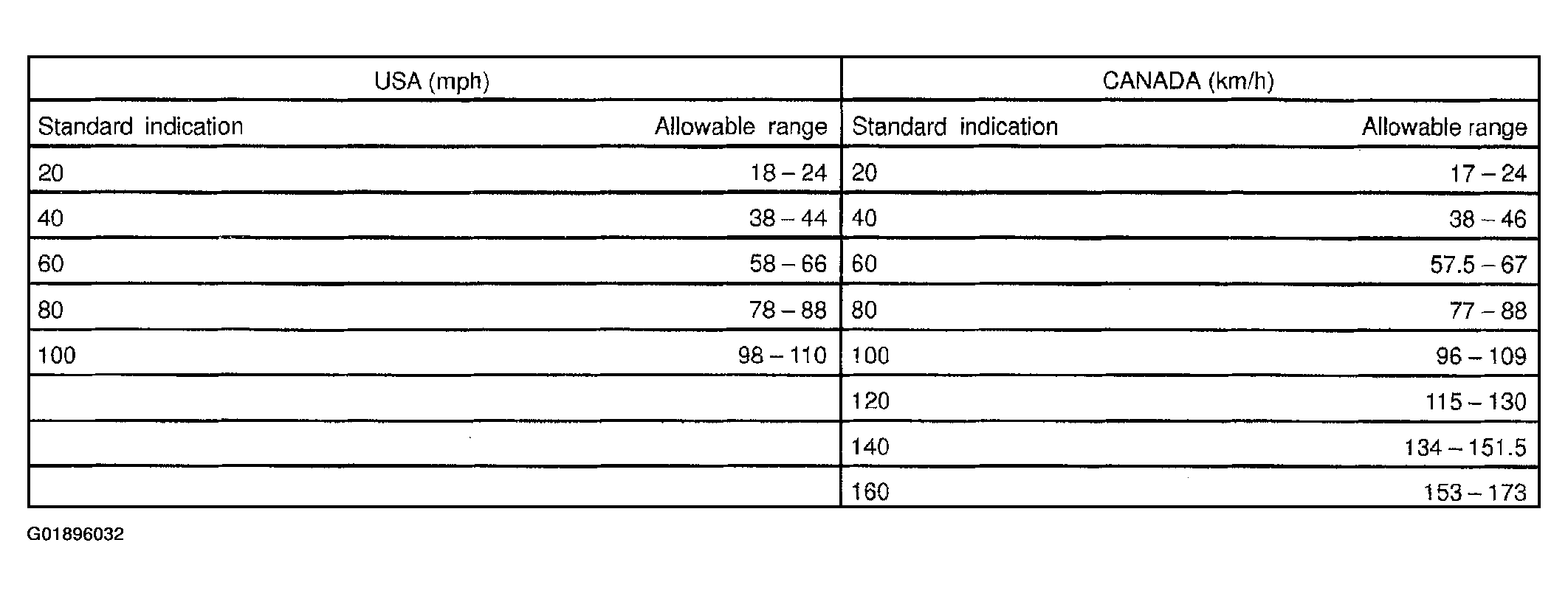

Fig 1: Speedometer Standard Indications
G01896032Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If error is excessive, replace the speedometer.
