Seat Belt: Components

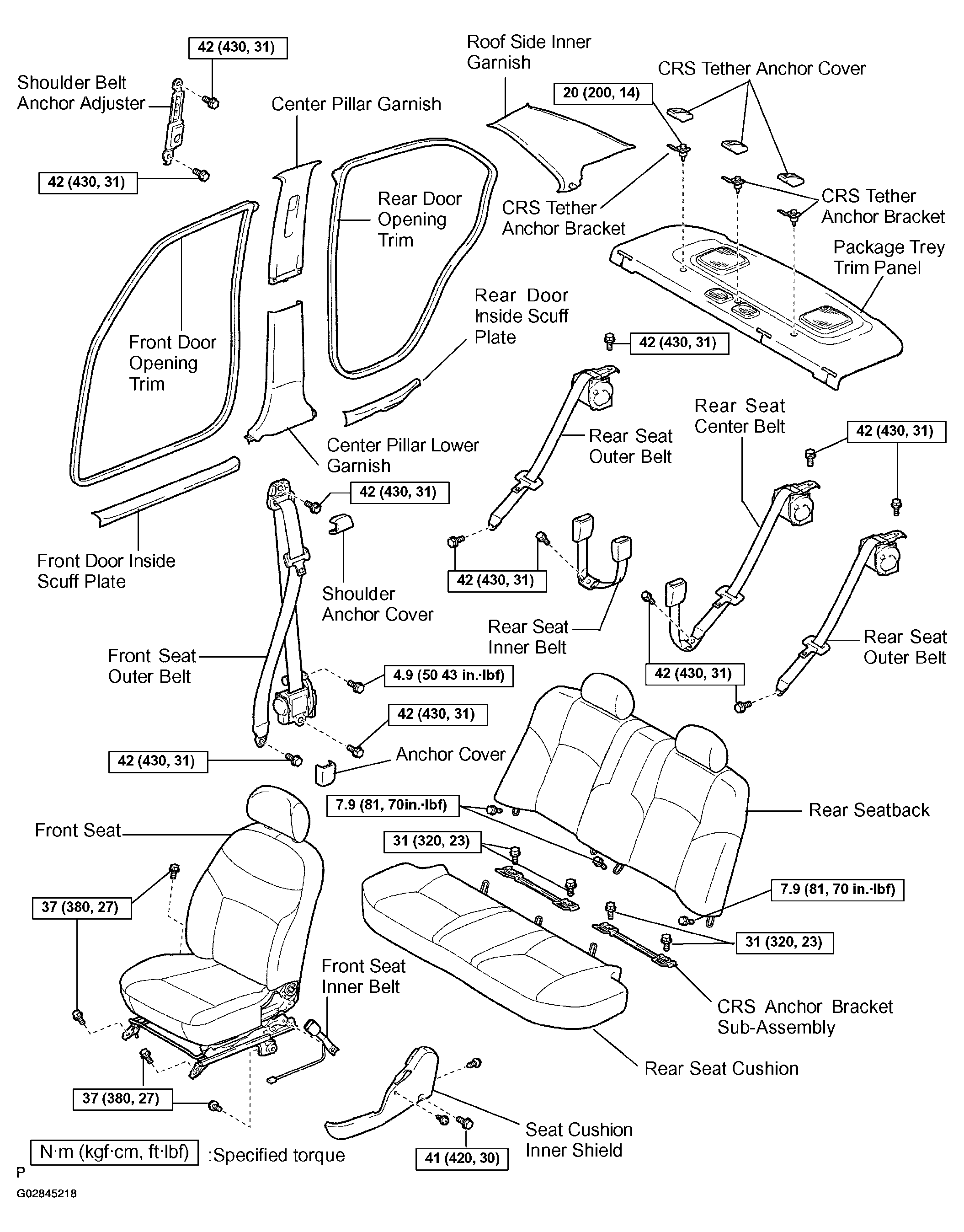

Fig 1: Exploded View Of Components For Seat Belt Removal

G02845218

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
