Quarter Window Glass: Components

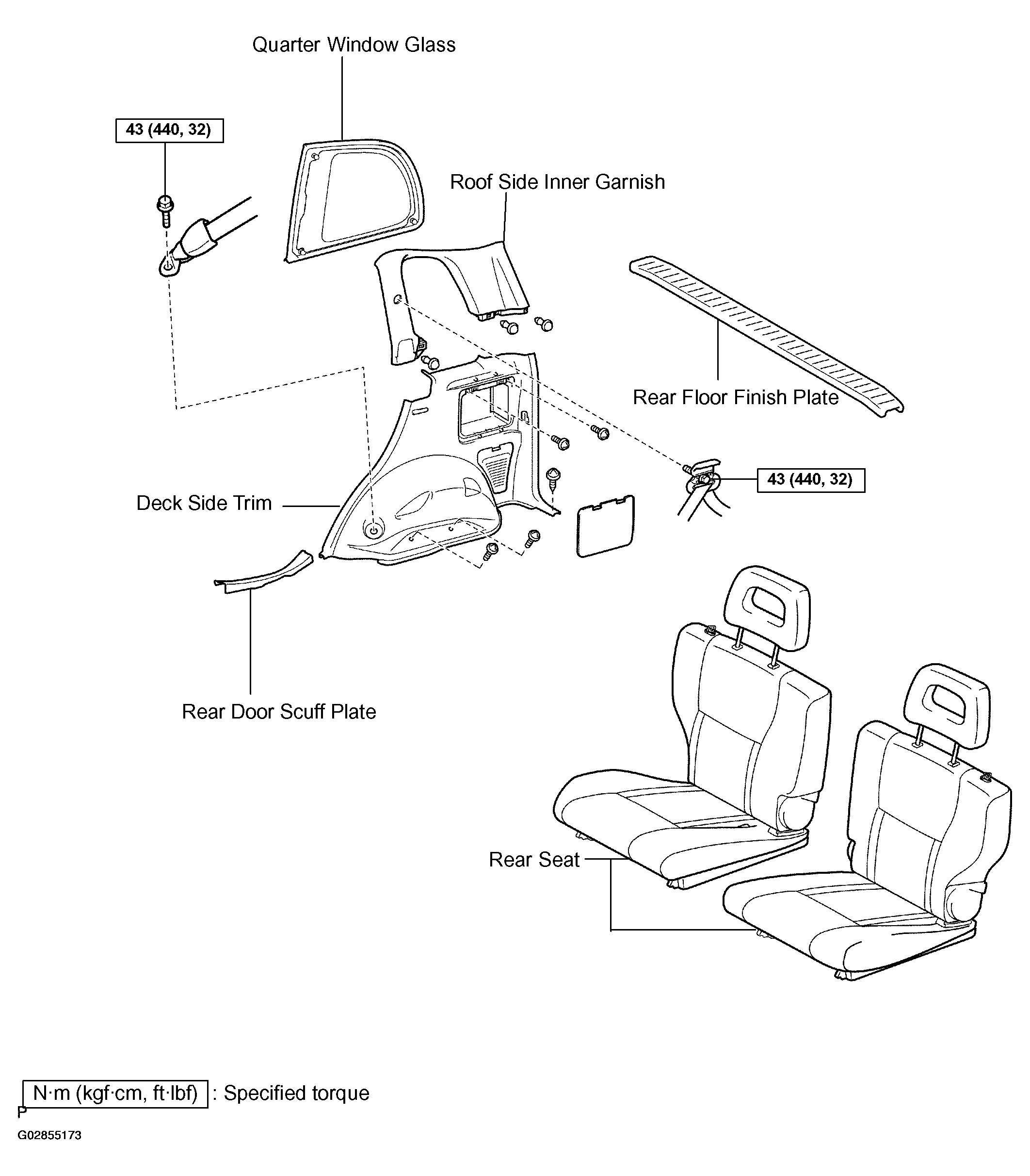

Fig 1: Exploded View Of Quarter Window Glass Components

G02855173

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
