Circuit Description

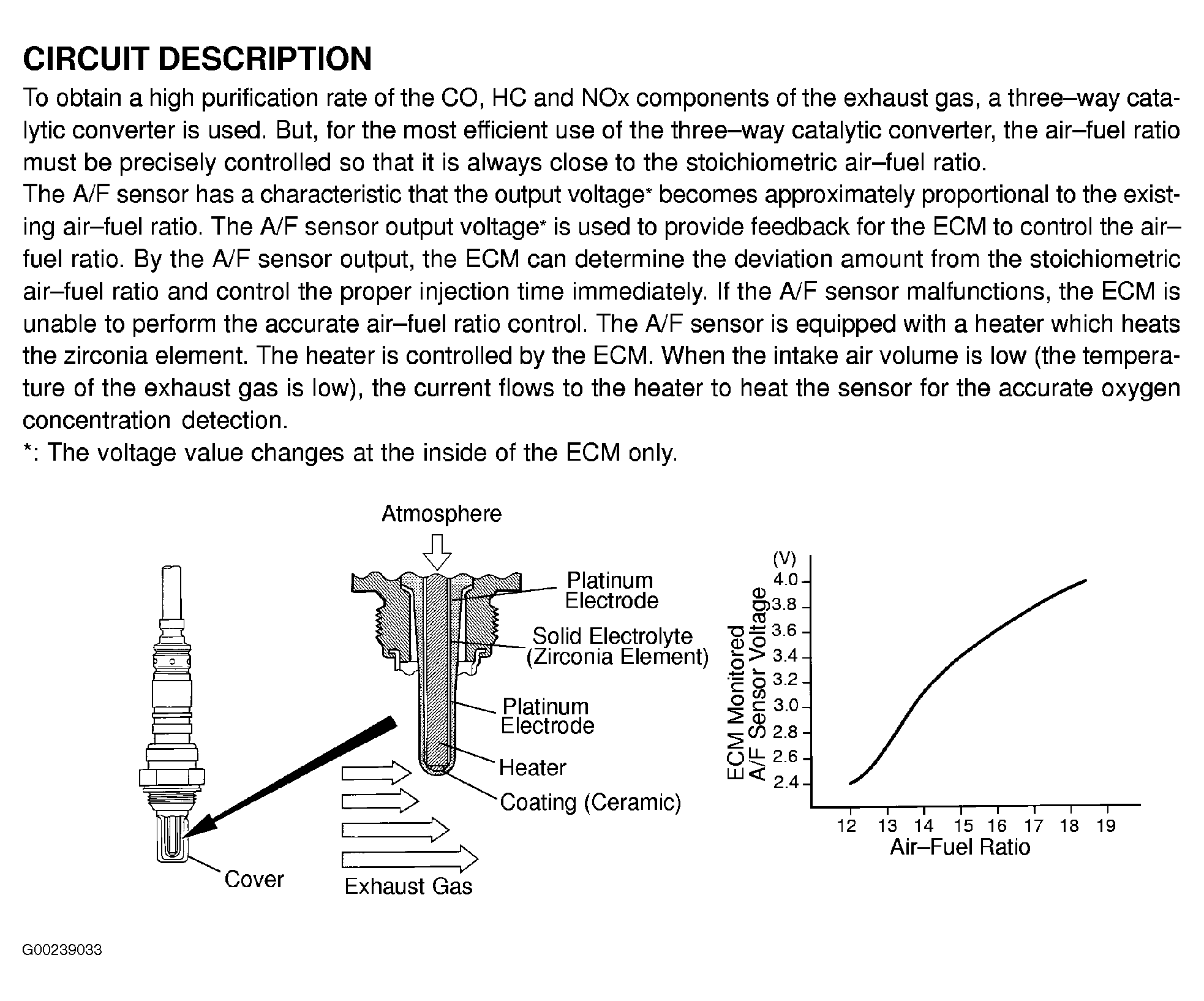

For circuit description, see Fig 1.
A/F sensors are located on exhaust manifold above catalytic converters. See Figure. A/F sensor for cylinders No. 1 and 4 is referred to as Bank 1 Sensor 1. A/F sensor for cylinders No. 2 and 3 is referred to as Bank 2 Sensor 1.
