Section 510 (Wiper System & Washer System): Inspection

WARNING: This page is about a different car, the 2003 Toyota Matrix. However, it is still accessible from the selected car via links, so may be relevant.
  1. WINDSHIELD WIPER SWITCH ASSY
    1. Continuity Check
      Fig 1: Identifying Windshield Wiper Switch Terminals
      G02866744Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Check the continuity of each terminal of the connector.

      Standard:

      Front Wiper Switch

      FRONT WIPER SWITCH CONTINUITY

      Switch Position Tester Connection Specified Condition
      MIST 7 (+1) - 8 (+B) Continuity
      OFF 6 (+S) - 7 (+1) Continuity
      INT 6 (+S) - 7 (+1) Continuity
      LO 7 (+1) - 8 (+B) Continuity
      HI 8 (+B) - 9 (+2) Continuity

      Front Washer Switch

      FRONT WASHER SWITCH CONTINUITY

      Switch Position Tester Connection Specified Condition
      OFF 4 (W) - 5 (EW) No Continuity
      ON 4 (W) - 5 (EW) Continuity
    2. w/o Intermittent time adjust:

      Intermittent Operation Check

      1. Connect the voltmeter (+) terminal to terminal 7 (+1) of the connector, the voltmeter (-) terminal to terminal 5 (EW) of the connector.
      2. Connect the battery (+) to terminal 8 (+B) of the connector, the battery (-) to terminal 5 (EW) and 6 (+S) of the connector.
      3. Turn the wiper switch to the INT position.
      4. Connect the battery (+) to terminal 6 (+S) of the connector for 5 seconds.
      5. Connect the battery (-) to terminal 6 (+S) of the connector. Operate the intermittent wiper relay and check voltage between terminal 7 (+1) and terminal 5 (EW).
        Fig 2: Intermittent Wiper Relay Time Adjustment Graph (W/O Intermittent Time Adjust)
        G02866745Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. w/ Intermittent time adjust:

      Intermittent Operation Check

      1. Connect the voltmeter (+) terminal to terminal 7 (+1) of the connector, the voltmeter (-) terminal to terminal 5 (EW) of the connector.
      2. Connect the battery (+) to terminal 8 (+B) of the connector, the battery (-) to terminal 5 (EW) and 6 (+S) of the connector.
      3. Turn the wiper switch to the INT position.
      4. Connect the battery (+) to terminal 6 (+S) of the connector for 5 seconds.
      5. Connect the battery (-) to terminal 6 (+S) of the connector. Operate the intermittent wiper relay and check voltage between terminal 7 (+1) and terminal 5 (EW).

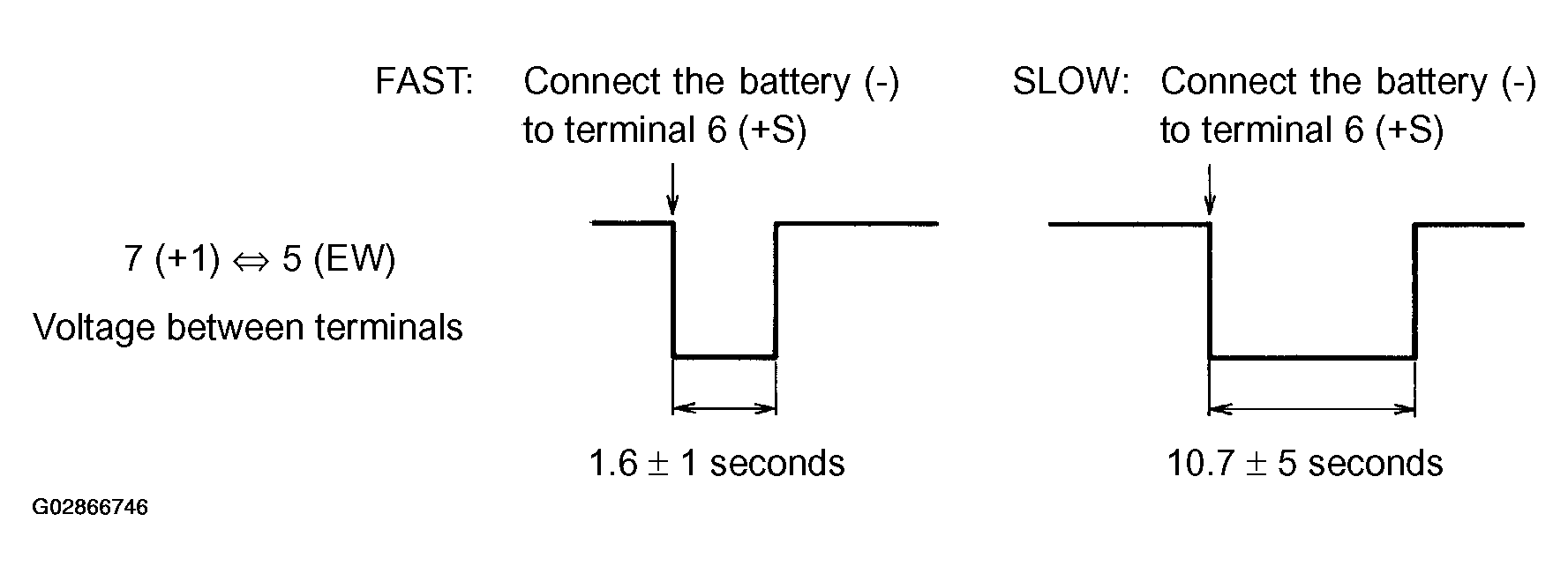

        Fig 3: Intermittent Wiper Relay Terminals Time Adjustment Graph (W/Intermittent Time Adjust)
        G02866746Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Operation Check (Front Wiper)
      Fig 4: Front Wiper Relay Terminals Time Adjustment Graph
      G02866747Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Turn the wiper switch to the OFF position.
      2. Connect the battery (+) to terminal 8 (+B) of the connector, the battery (-) to terminal 6 (+S) and 5 (EW) of the connector.
      3. Connect the voltmeter (+) terminal to terminal 7 (+1) of the connector, the voltmeter (-) terminal to terminal 5 (EW) of the connector. Turn the washer switch to ON and OFF and check voltage between terminal 7 (+1) and terminal 5 (EW).
  2. WINDSHIELD WIPER MOTOR ASSY
    Fig 5: Identifying Windshield Wiper Motor Terminals
    G02866748Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. LO Operation Check
      1. Connect the battery (+) to terminal 1 (+1) of the connector, the battery (-) to terminal 5 (E) of the connector, and check that the motor operates at low speed (LO).
    2. HI Operation Check
      1. Connect the battery (+) to terminal 4 (+2) of the connector, the battery (-) to terminal 5 (E) of the connector, and check that the motor operates at high speed (HI).
    3. Automatic Stop Operation Check
      1. Connect the battery (+) to terminal 1 (+1) of the connector, the battery (-) to terminal 5 (E) of the connector. With the motor being rotated at low speed (LO), disconnect terminal 1 (+1) to stop the wiper motor operation at any position except the automatic stop position.
      2. Using SST, connect terminal 1 (+1) and 3 (S), and the battery (+) to terminal 2 (B) to restart the motor operation at low speed (LO).

        SST 09843-18040

      3. Check the automatic stop position.

        Standard: See the illustration.

        Fig 6: Checking Automatic Stop Position
        G02866749Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REAR WIPER MOTOR ASSY
    Fig 7: Identifying Rear Wiper Motor Terminals
    G02866750Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Operation Check
      1. Connect the battery (+) to terminal 4 (+1) of the connector, the battery (-) to terminal 1 (-) of the connector, and check that the rear wiper motor operates.
    2. Automatic Stop Position Operation Check
      1. Connect the battery (+) to terminal 2 (+B) of the connector, the battery (-) to terminal 3 (S) of the connector. With the motor being rotated, disconnect terminal 4 (+1) to stop the motor operation at any position except the automatic stop position.
      2. Connect the battery (+) to terminal 2 (+B) to restart the motor operation, then check that the wiper arm blade stops automatically at a certain position. (See REPLACEMENT  )
