Power Steering Vane Pump: Components

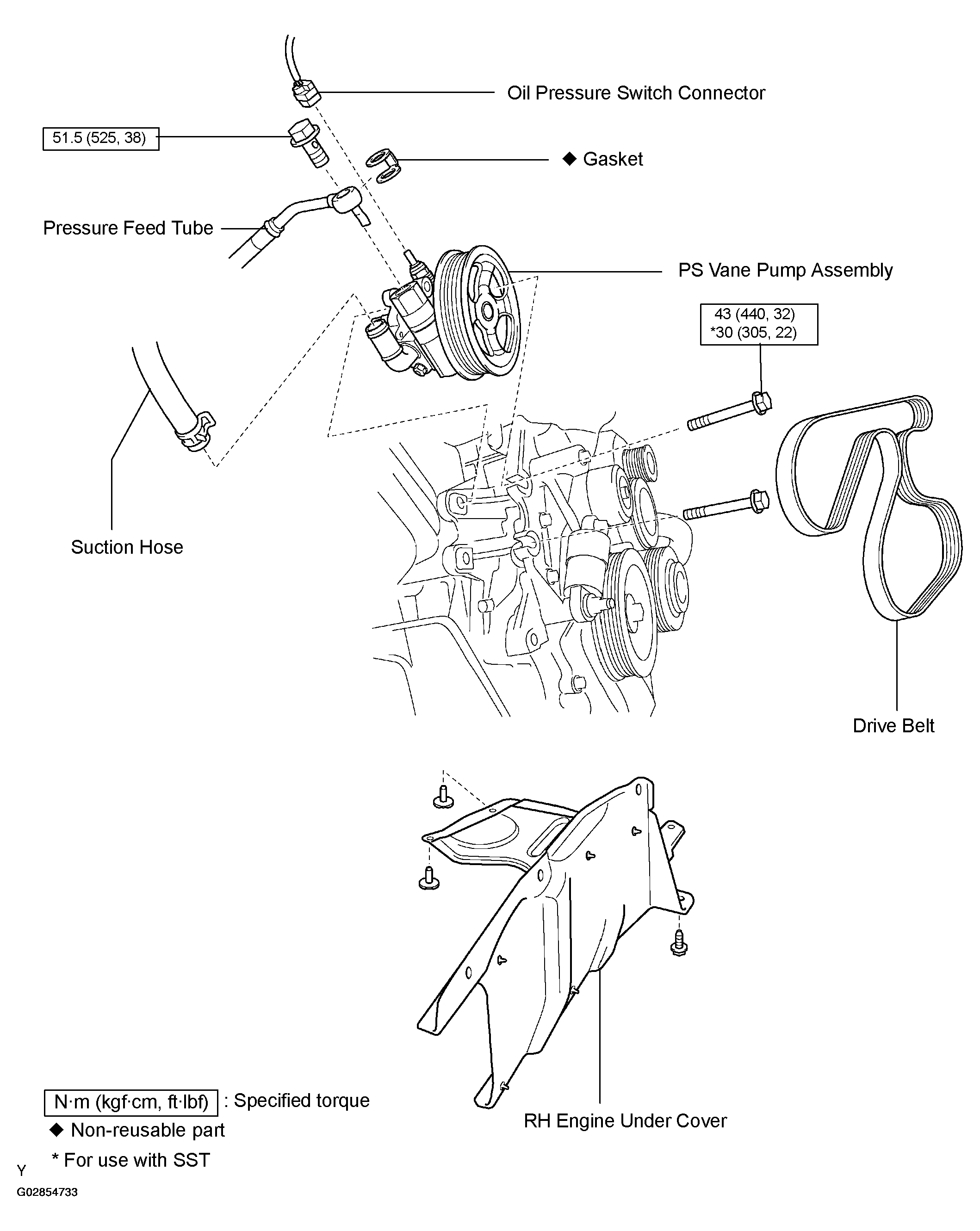

Fig 1: Exploded View Of Power Steering Vane Pump Components (1 Of 2)
G02854733Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

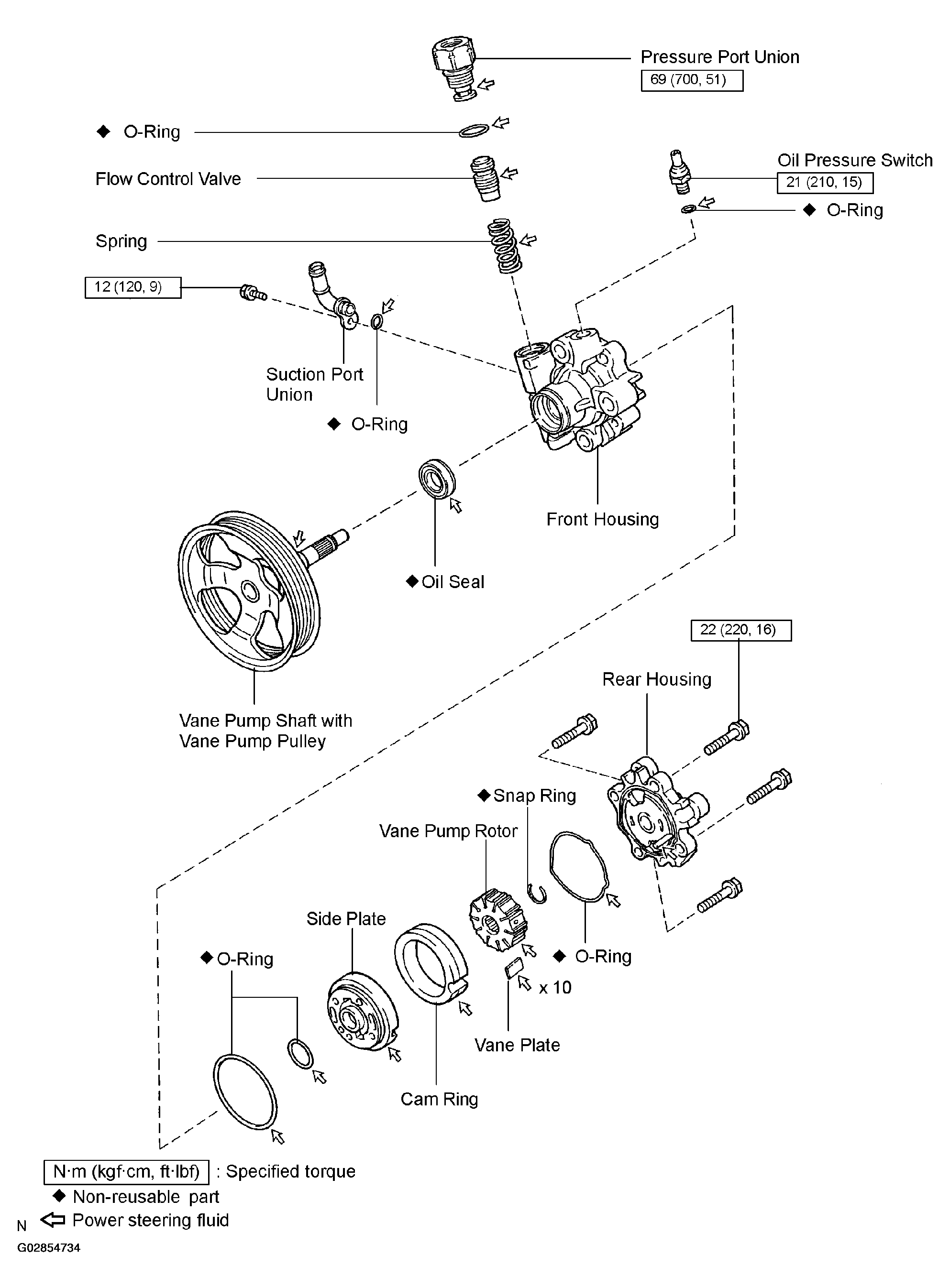

Fig 2: Exploded View Of Power Steering Vane Pump Components (2 Of 2)
G02854734Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
