Problem Symptoms Table

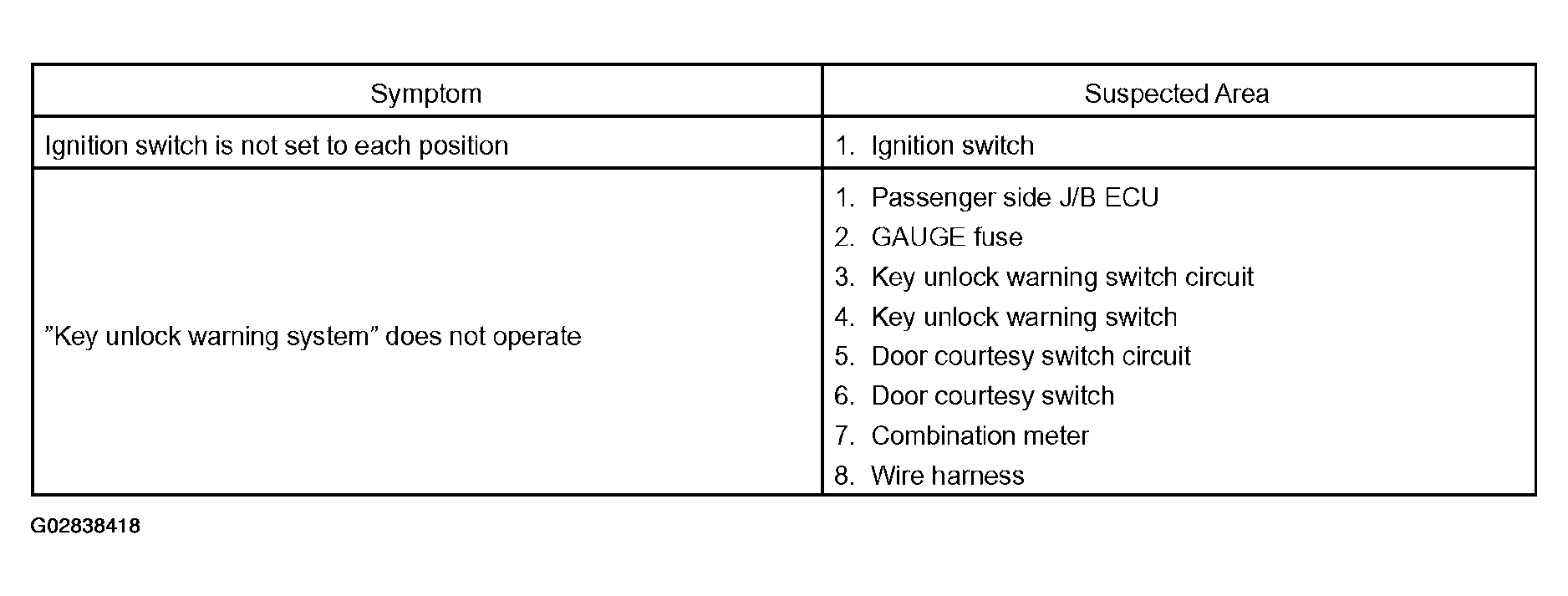

Fig 1: Ignition Switch & Key Unlock Warning Switch Problem Symptoms Table

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

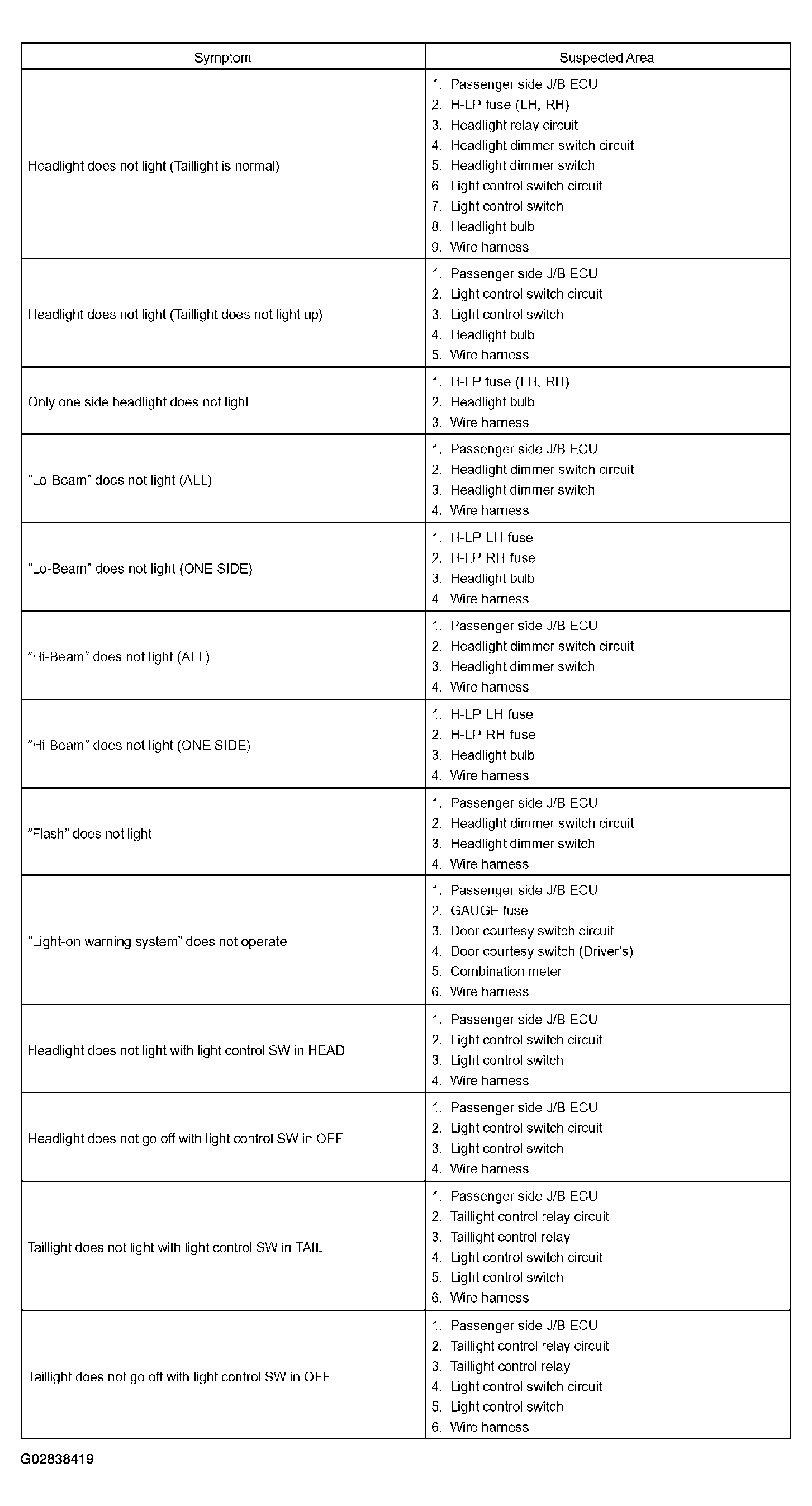

Fig 2: Headlight & Taillight System Problem Symptoms Table

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

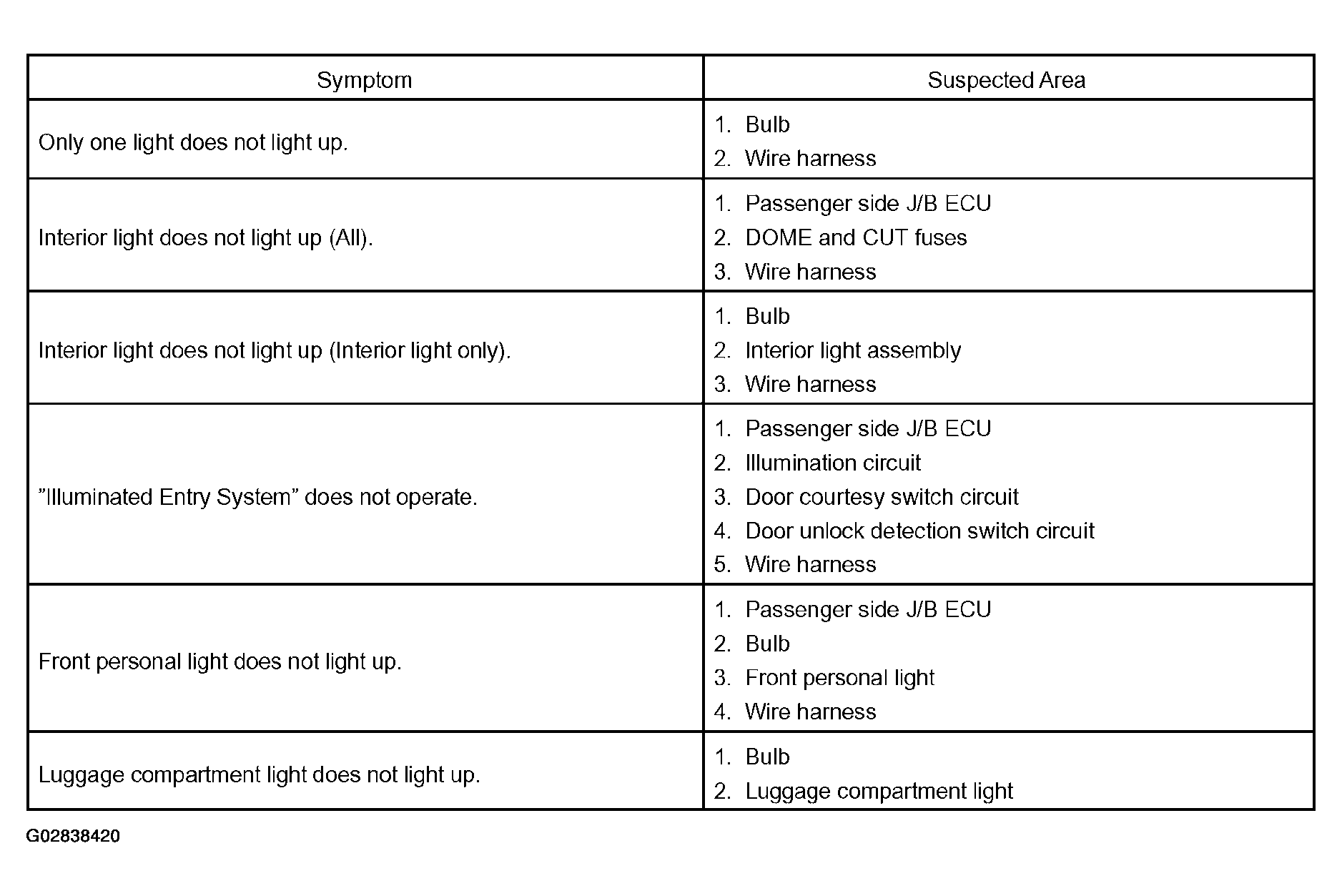

Fig 3: Interior Light System Problem Symptoms Table

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

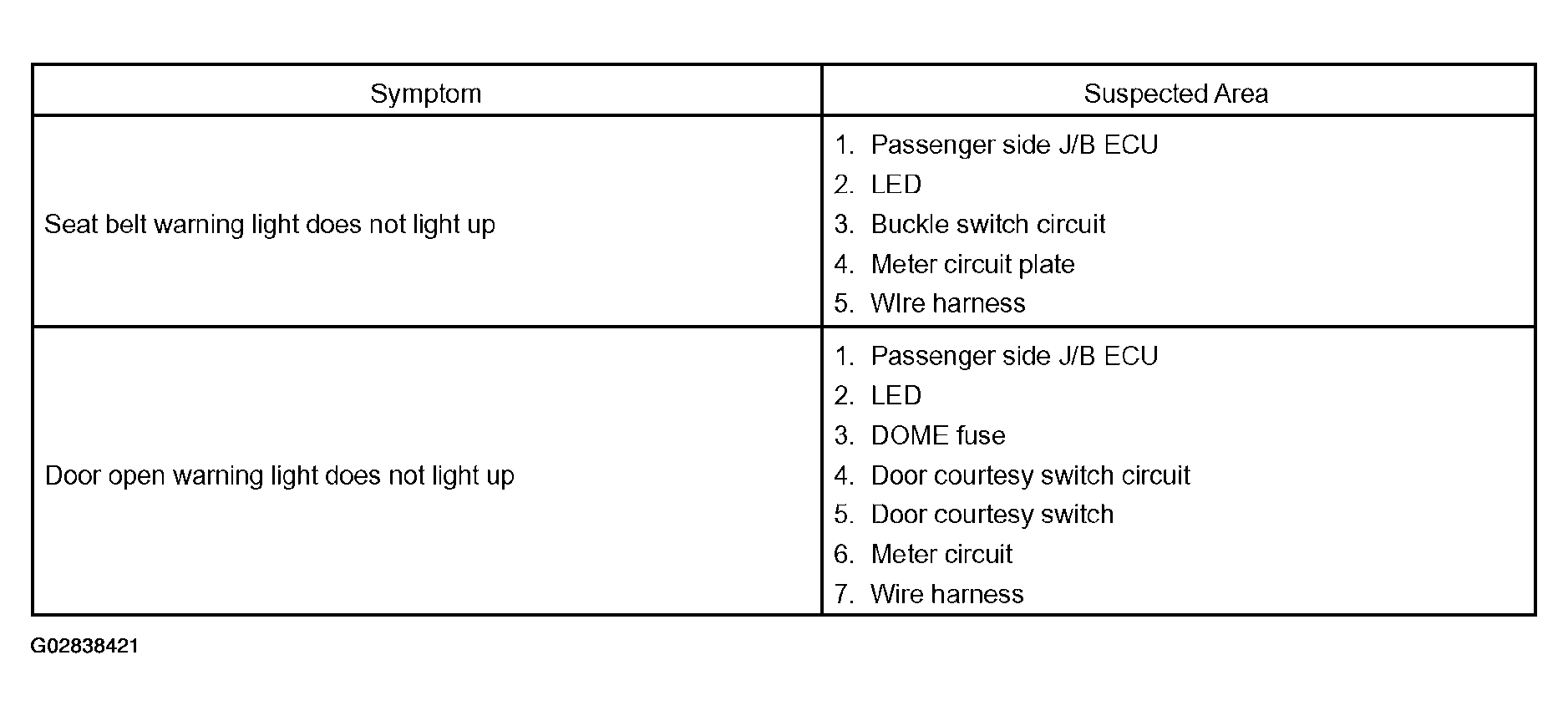

Fig 4: Combination Meter (Warning Lights) Problem Symptoms Table

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

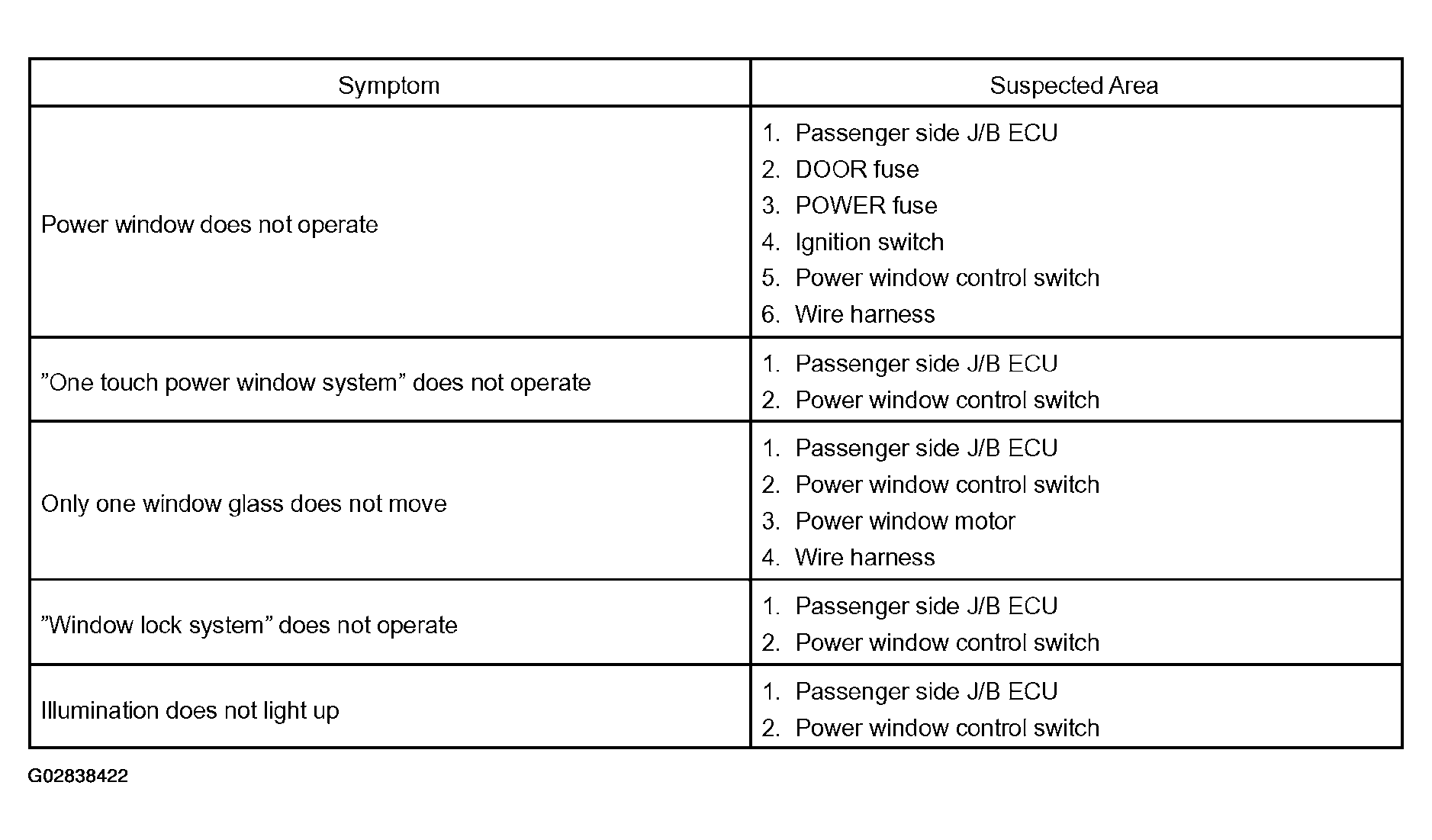

Fig 5: Power Window Control System Problem Symptoms Table

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

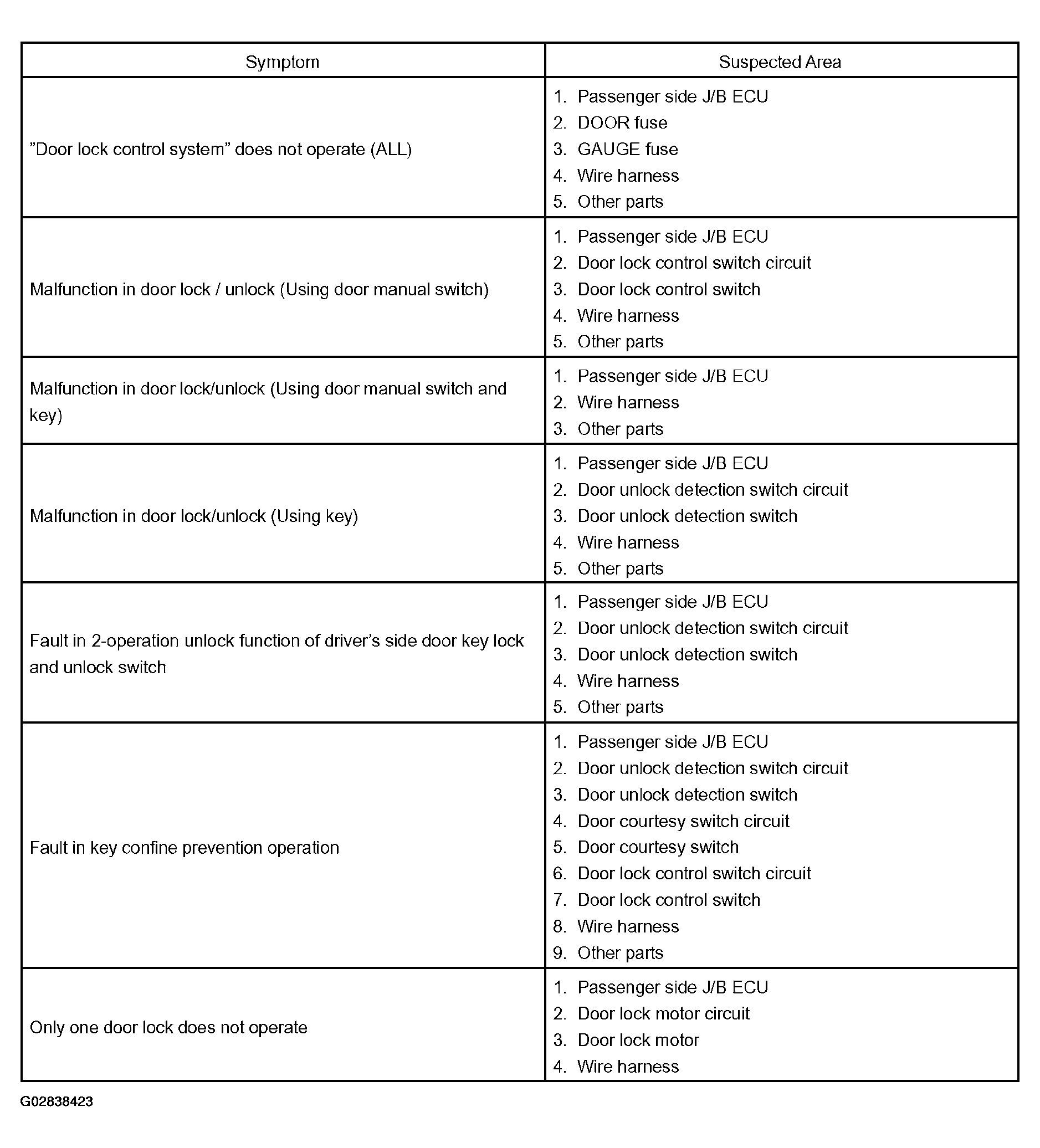

Fig 6: Power Door Lock Control System Problem Symptoms Table

WIRELESS DOOR LOCK CONTROL SYSTEM:

NOTE:

Troubleshooting the wireless door lock control system is based on the premise that the door lock control system is operating normally. Accordingly, before troubleshooting the wireless door lock control system, first make certain that the door lock control system is operating normally.
If the trouble still appears even though there are no abnormalities in any of the other circuits, check and replace the Wireless Door Lock ECU as the last step.

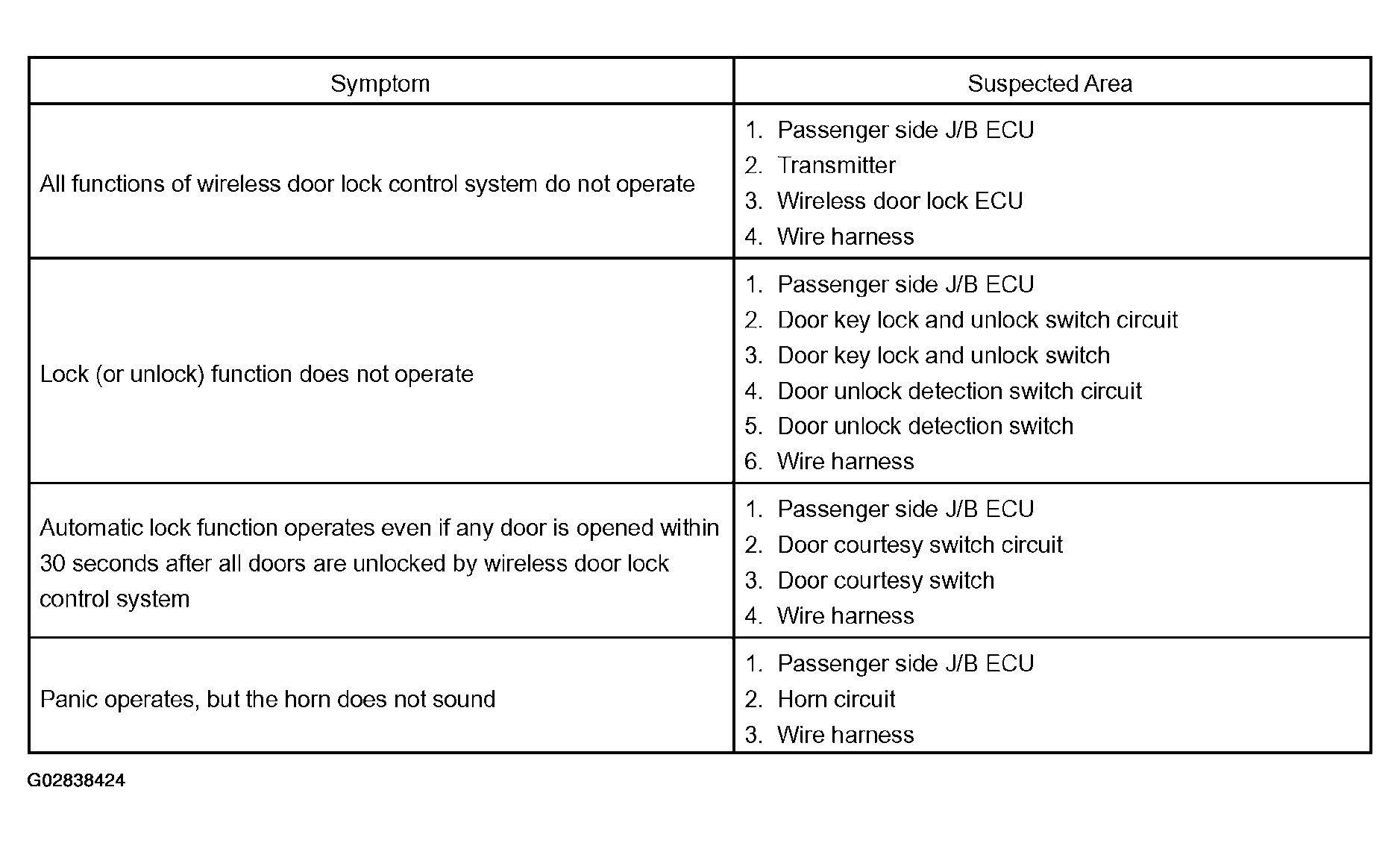

Fig 7: Wireless Door Lock Control System Problem Symptoms Table

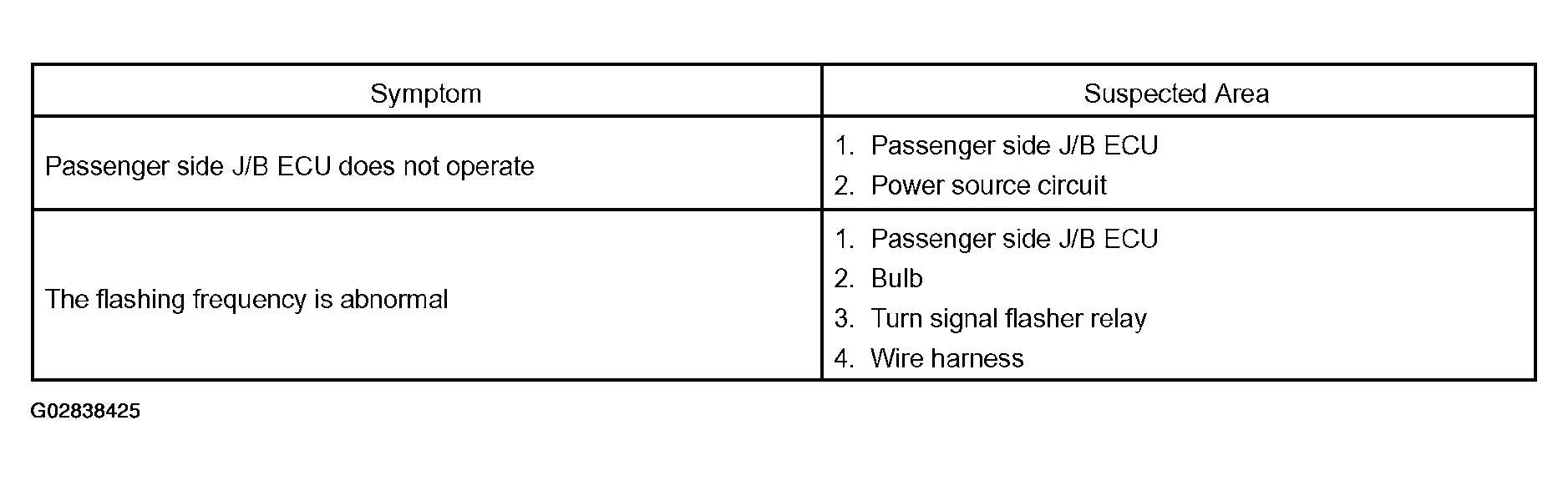

Fig 8: Others Problem Symptoms Table
