Toyota
›
2003
›
RAV4 Base, AWD, Standard
›
Repair and Diagnosis
›
Body & Frame
›
Exterior/Interior Trim
›
Body Outside Moulding
›
Components
Body Outside Moulding: Components

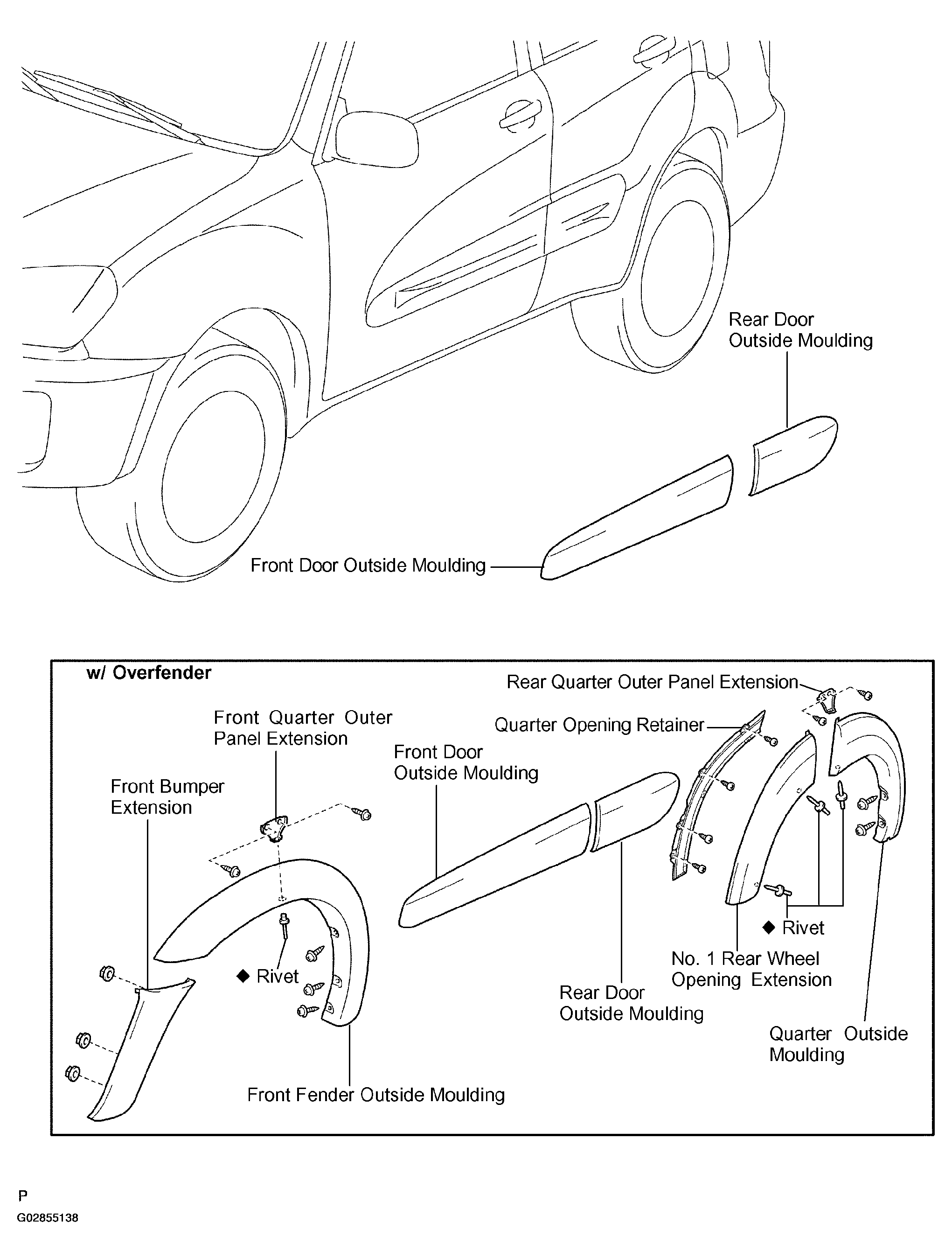

Fig 1: Exploded View Of Body Outside Moulding Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
