Front Bumper: Components

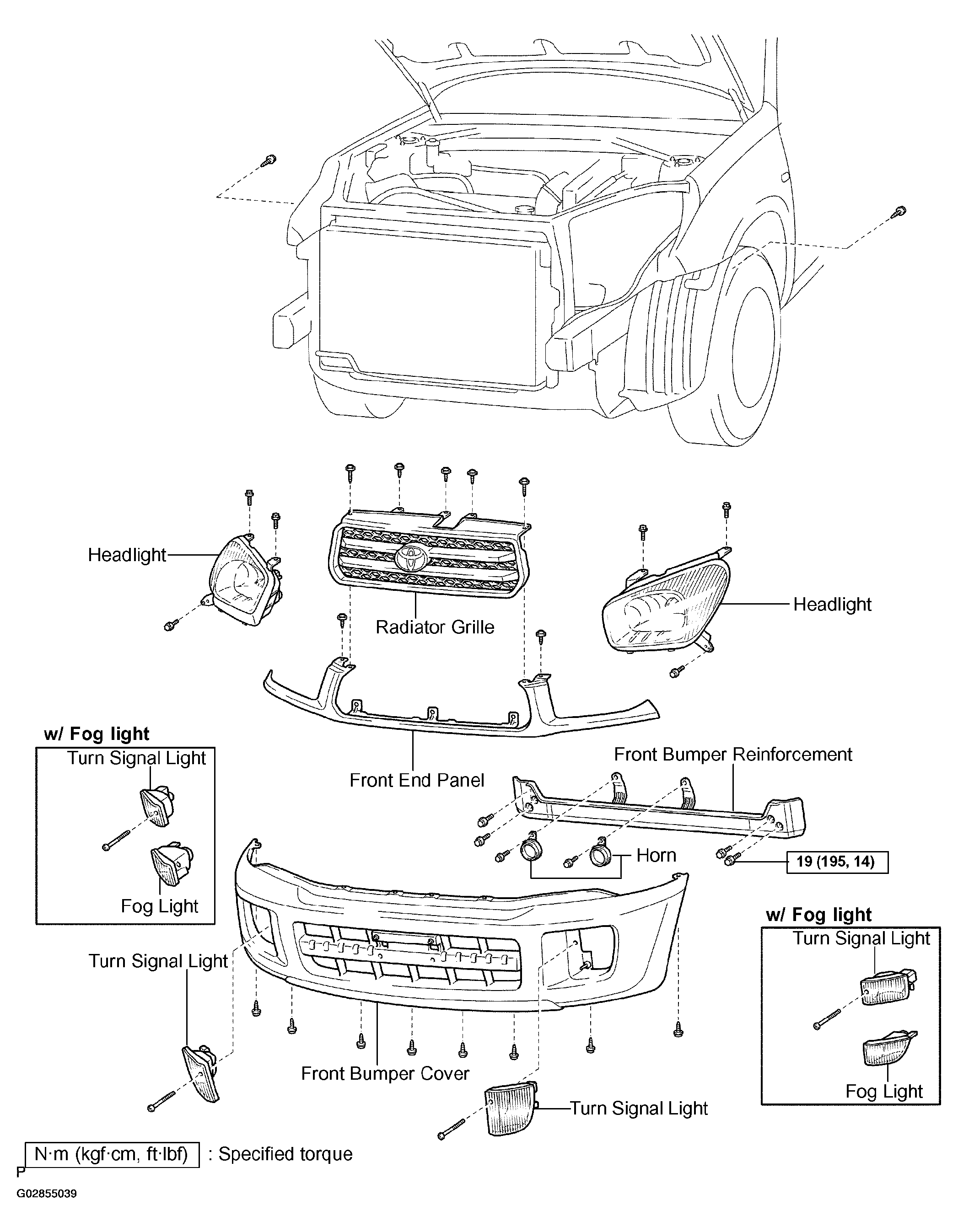

Fig 1: Exploded View Of Front Bumper Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
