Back Door Glass: Components

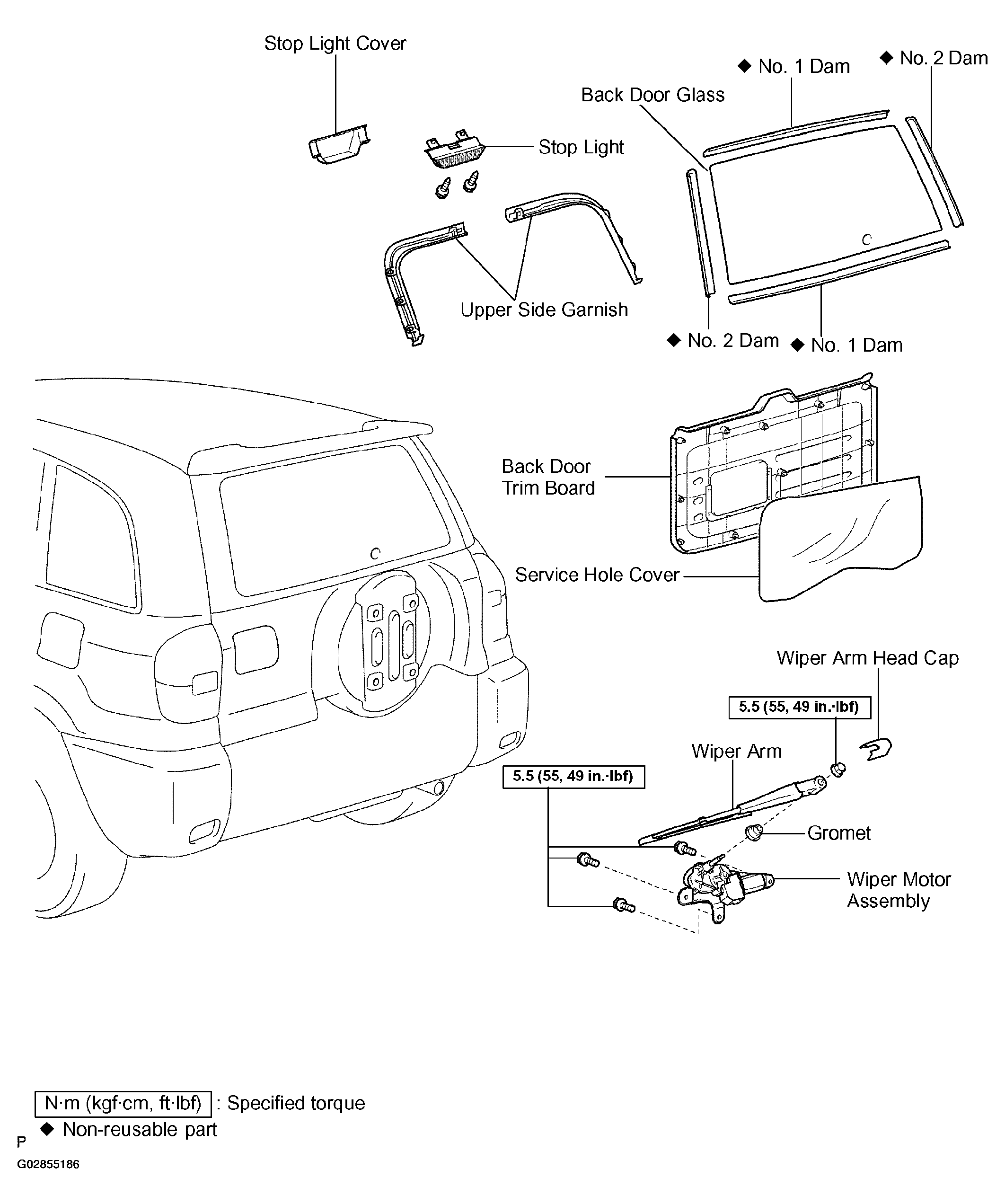

Fig 1: Exploded View Of Back Door Glass Components

G02855186

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
