Cooling System (Mechanical): Radiator: Installation

  1. INSTALL UPPER AND LOWER RADIATOR SUPPORTS TO RADIATOR
  2. INSTALL RADIATOR
  3. CONNECT LOWER RADIATOR HOSE
  4. A/T:
    1. CONNECT 2 HOSES

    Connect the 2 oil cooler hoses to the radiator.

  5. CONNECT ECT SWITCH CONNECTOR
  6. INSTALL NO. 1 AND NO. 2 COOLING FANS (See  ELECTRIC COOLING FANS  )
  7. INSTALL RADIATOR RESERVOIR
  8. INSTALL RH ENGINE UNDER COVER
  9. INSTALL UPPER RADIATOR SUPPORT

    Install the radiator upper support with the 5 bolts.

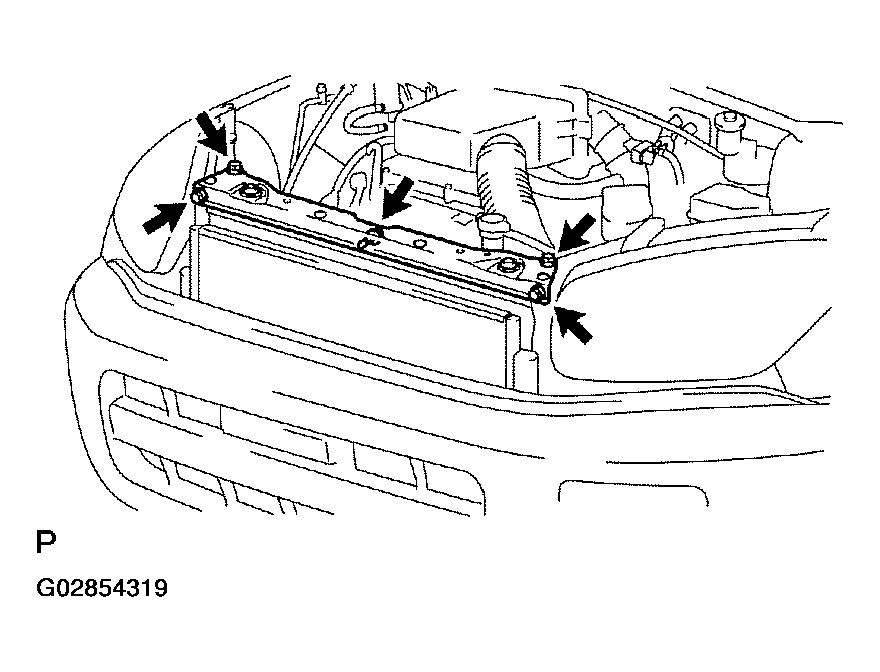

    Fig 1: Installing Upper Radiator Support
    G02854319Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. CONNECT UPPER RADIATOR HOSE
  11. CONNECT HOOD LOCK
    1. Install the hood lock with the 3 bolts.

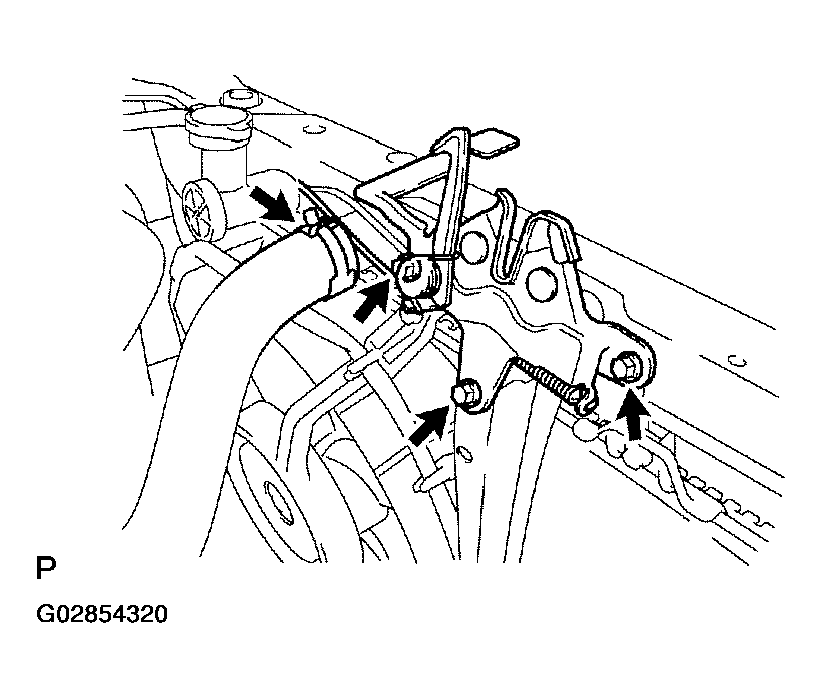

      Fig 2: Connecting Hood Lock
      G02854320Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the wire from the clamps.
  12. INSTALL FRONT END PANEL

    Install the front end panel with the 4 screws.

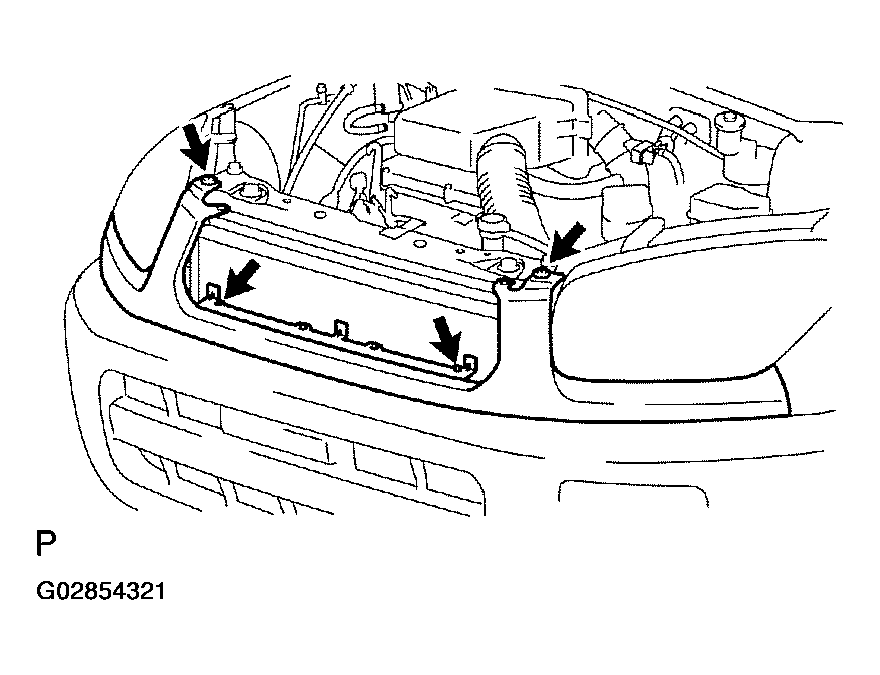

    Fig 3: Installing Front End Panel
    G02854321Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. INSTALL RADIATOR GRILLE

    Install the radiator grille with the 4 screws and 2 clips.

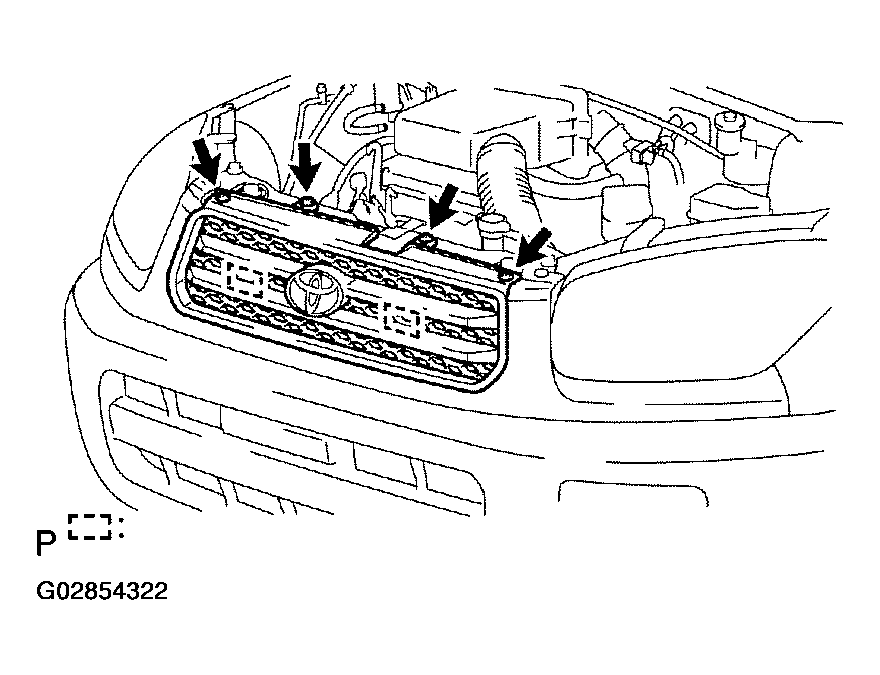

    Fig 4: Installing Radiator Grille
    G02854322Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. FILL WITH ENGINE COOLANT
  15. START ENGINE AND CHECK FOR COOLANT LEAKS
