Possible Causes

For DTC detection conditions and possible causes, see Fig 1.

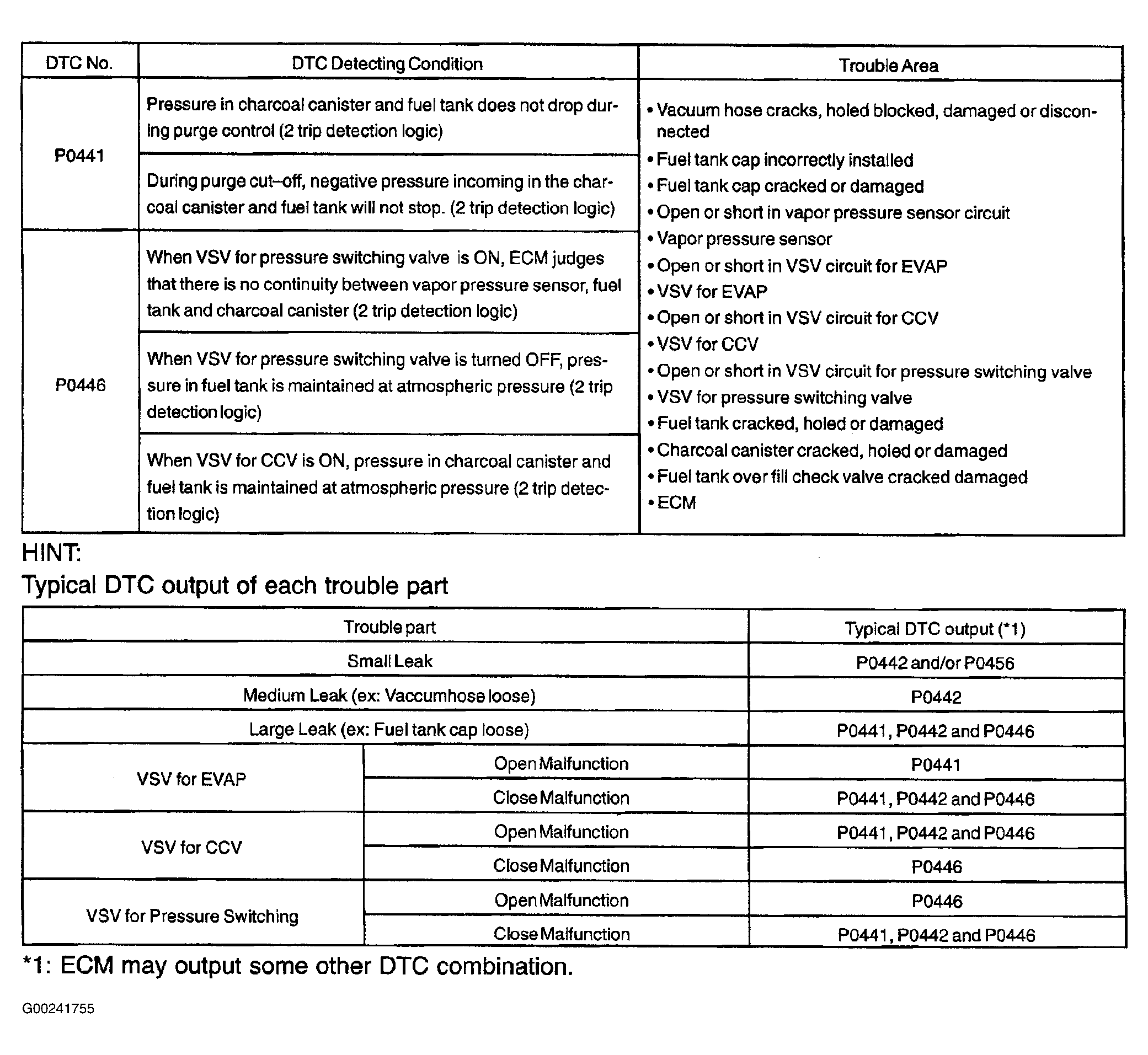

Fig 1: DTC Detection Conditions & Possible Causes

G00241755

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
