Catalyst Monitor & Drive Cycle Pattern

See Fig 1.

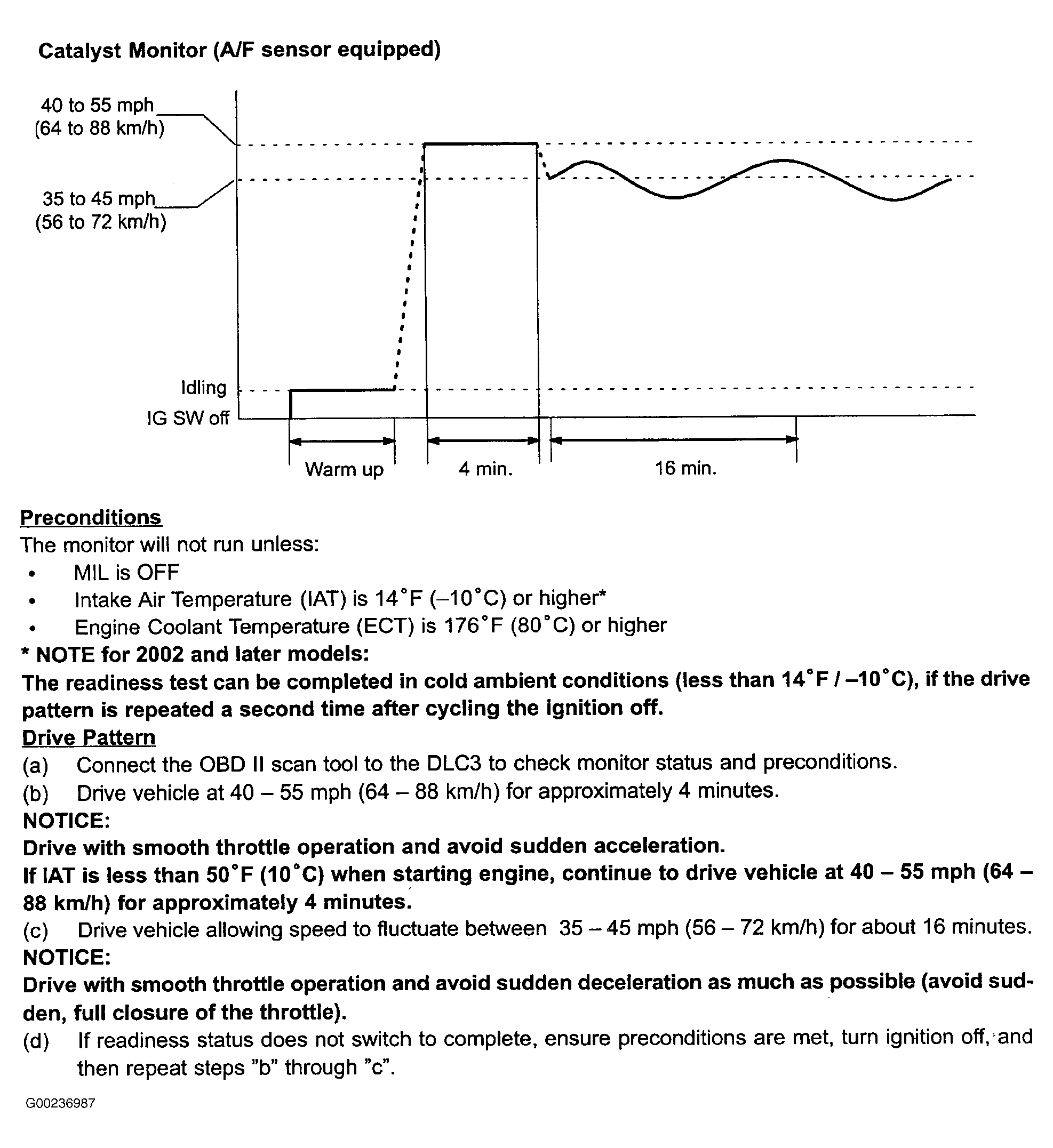

Fig 1: Catalyst Monitor & Drive Cycle Pattern

G00236987

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
