Removal & Installation

Remove rear console box and upper console plate. Disconnect sensor connector. Remove the 2 nuts and deceleration sensor. See Fig 1. Torque sensor mounting bolts to specification. See TORQUE SPECIFICATIONS .

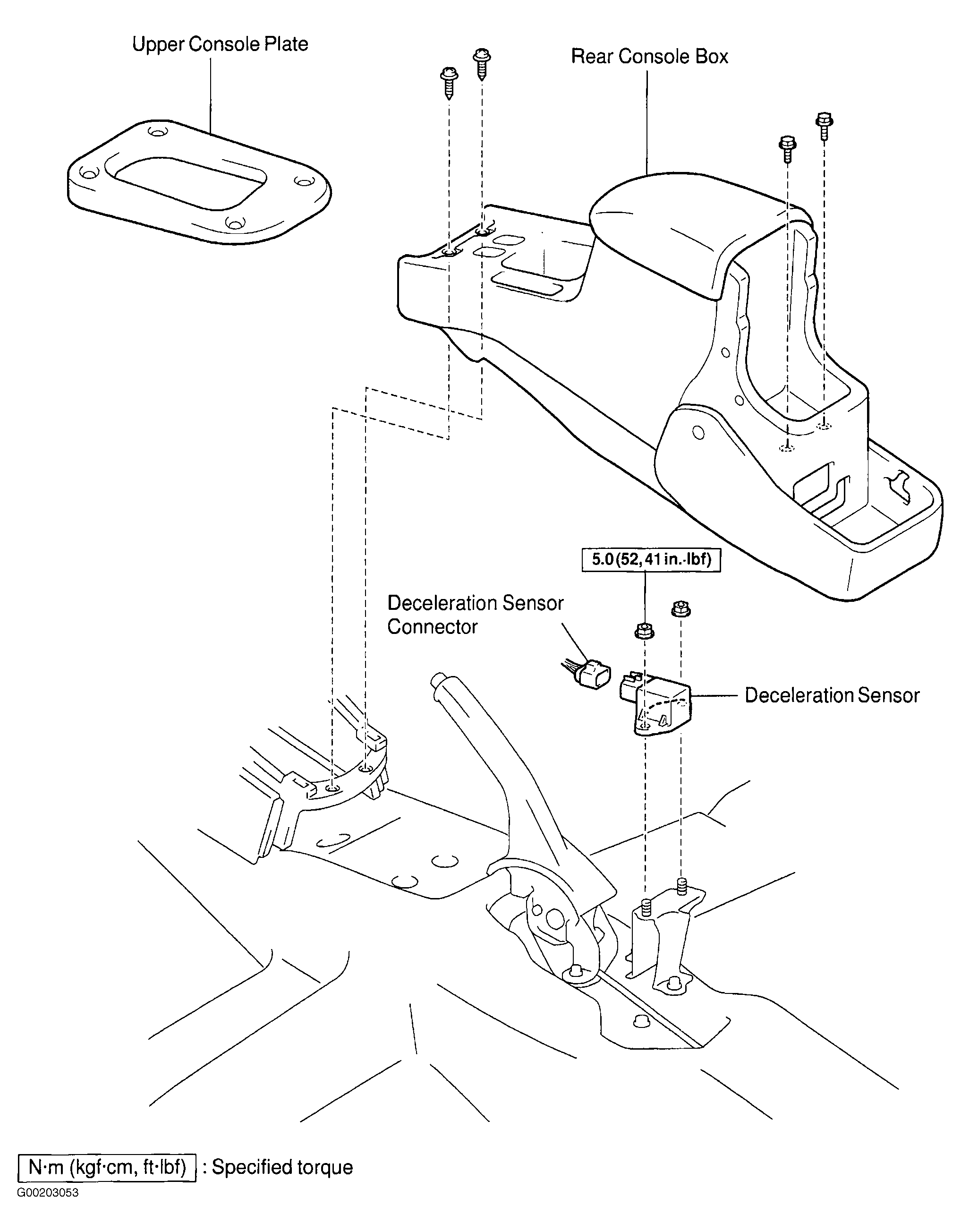

Fig 1: Removing & Installing Deceleration Sensor

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
