Instrument Panel: Components

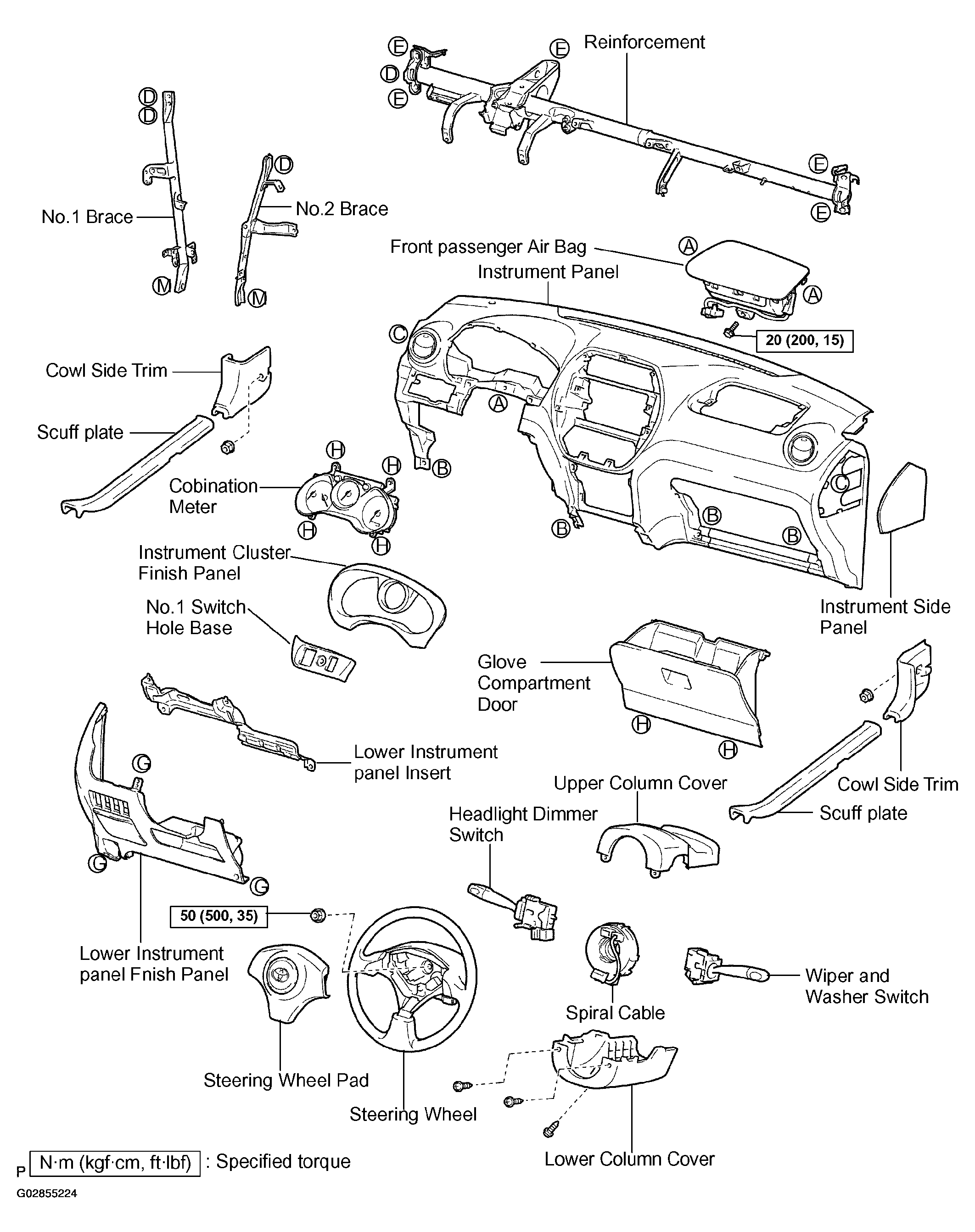

Fig 1: Exploded View Of Instrument Panel Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

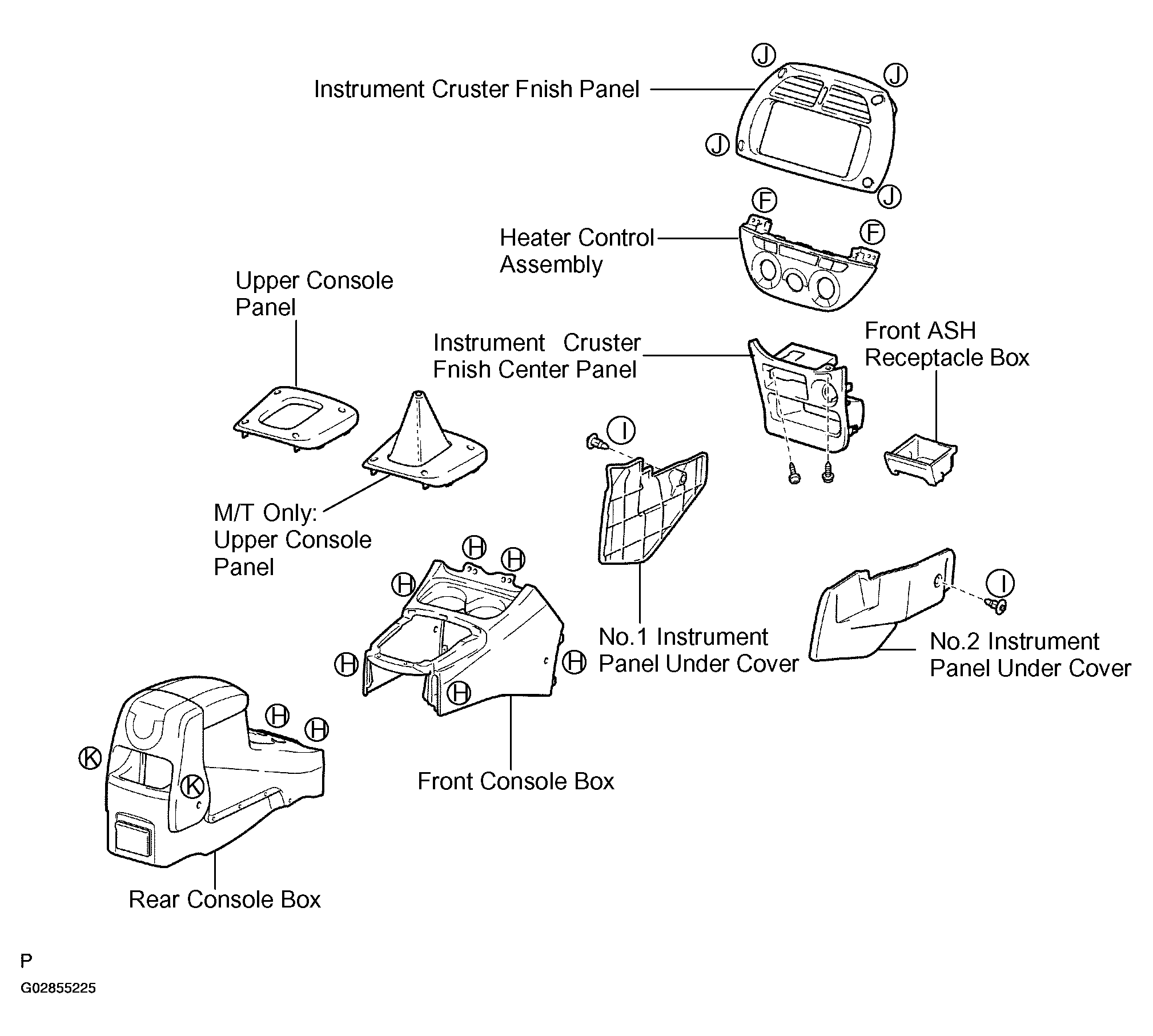

Fig 2: Exploded View Of Instrument Panel Components (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

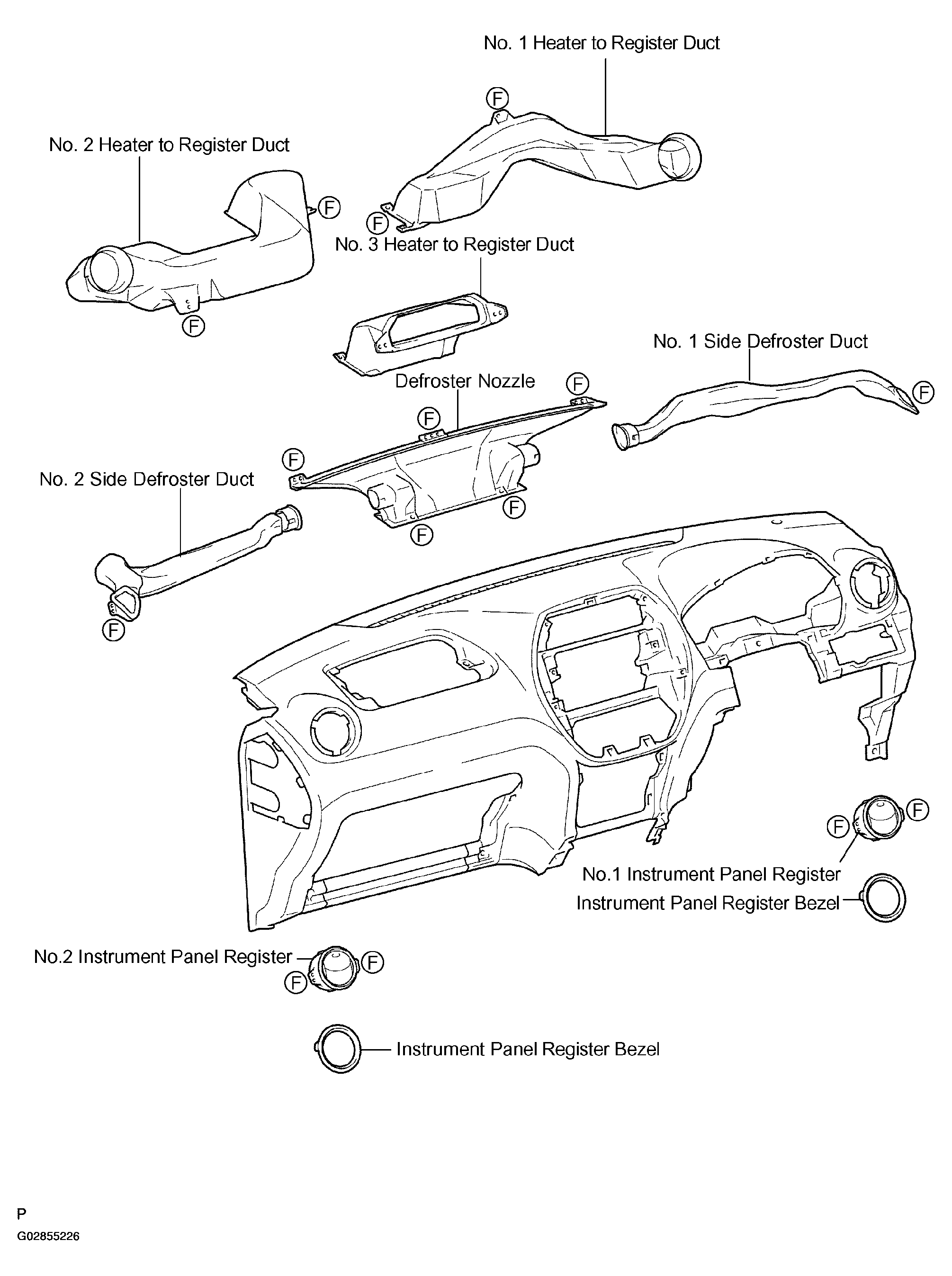

Fig 3: Exploded View Of Instrument Panel Components (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE: Screw shapes and sizes are indicated in the table below. The codes ("A" - "M") correspond to those indicate on the previous pages.

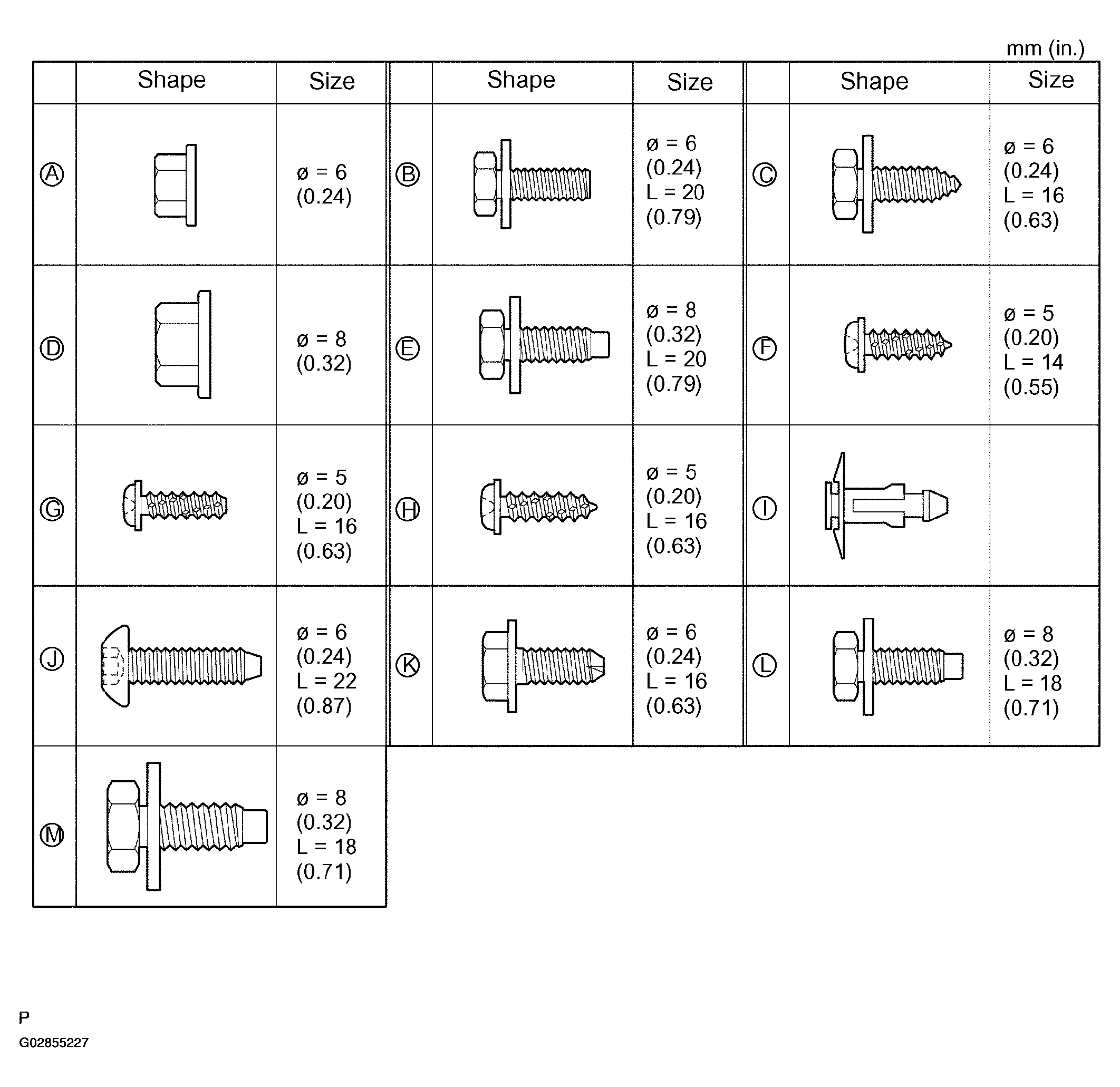

Fig 4: Identifying Screw Shapes & Sizes

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
