Power Seat Control System: Location

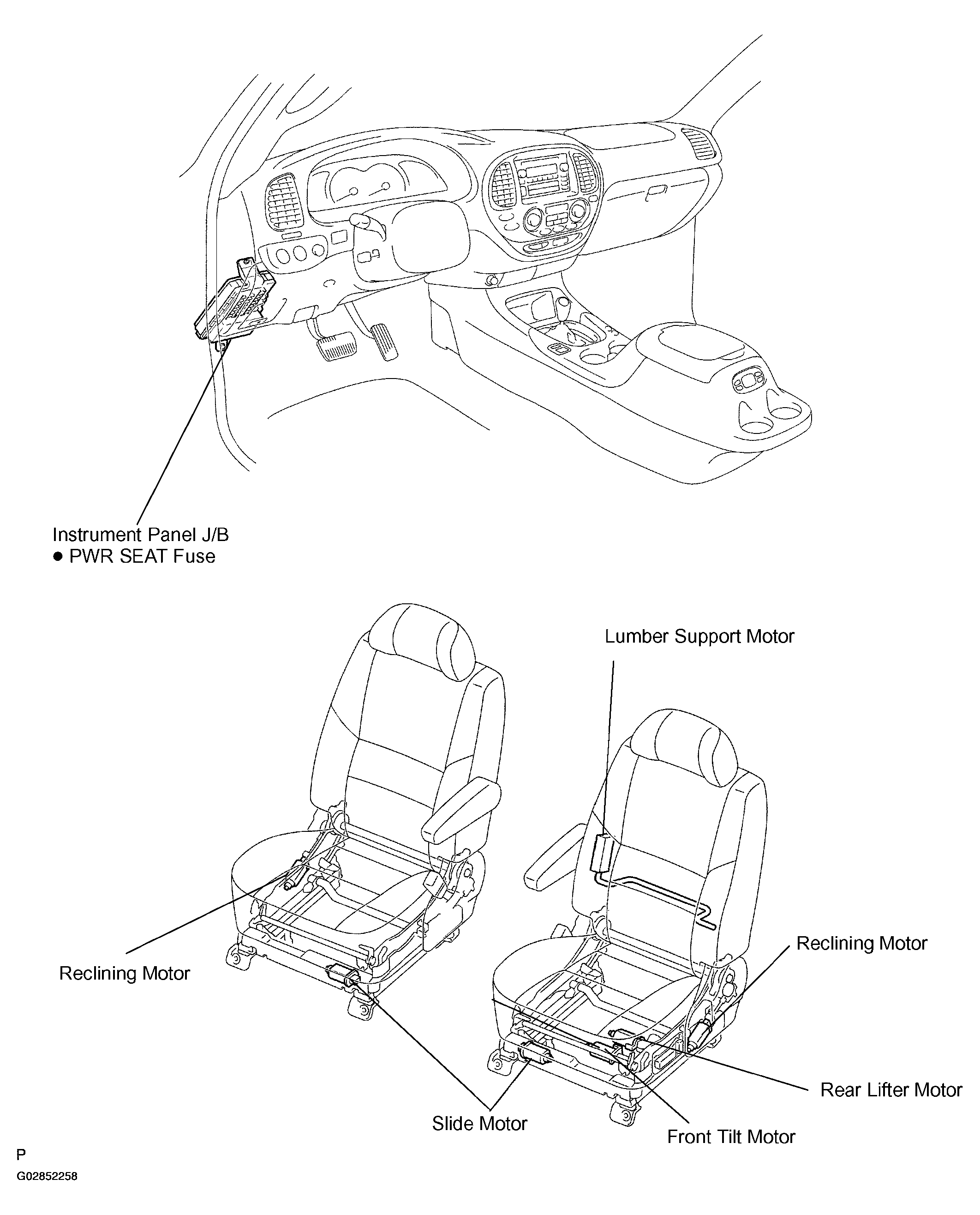

Fig 1: Locating Power Seat Control System Components

G02852258

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
