Engine Exhaust Assembly: Components

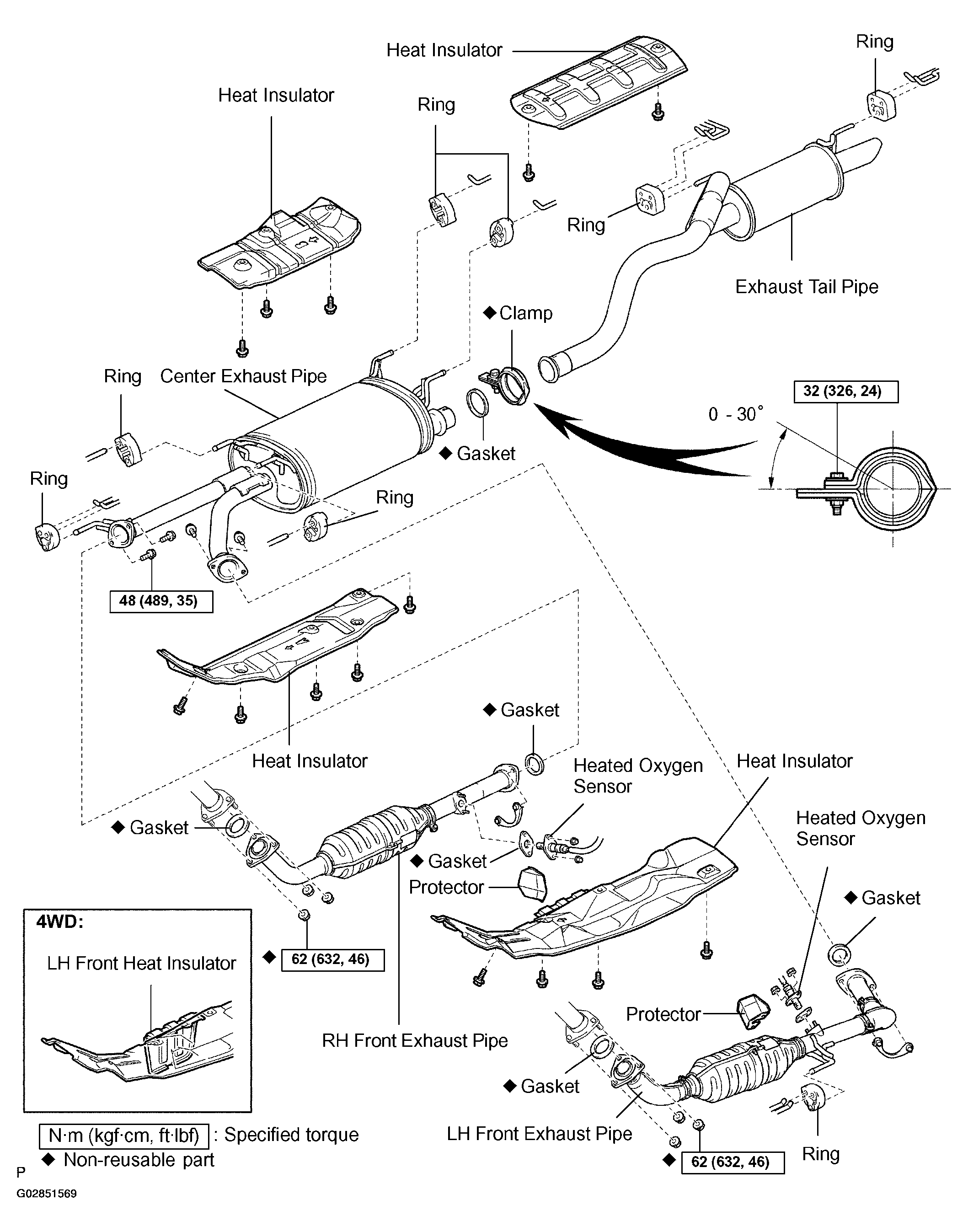

Fig 1: Identifying Exhaust System Components
G02851569Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
