Ignition Switch & Key Unlock Warning System
›
Location
Ignition Switch & Key Unlock Warning System: Location

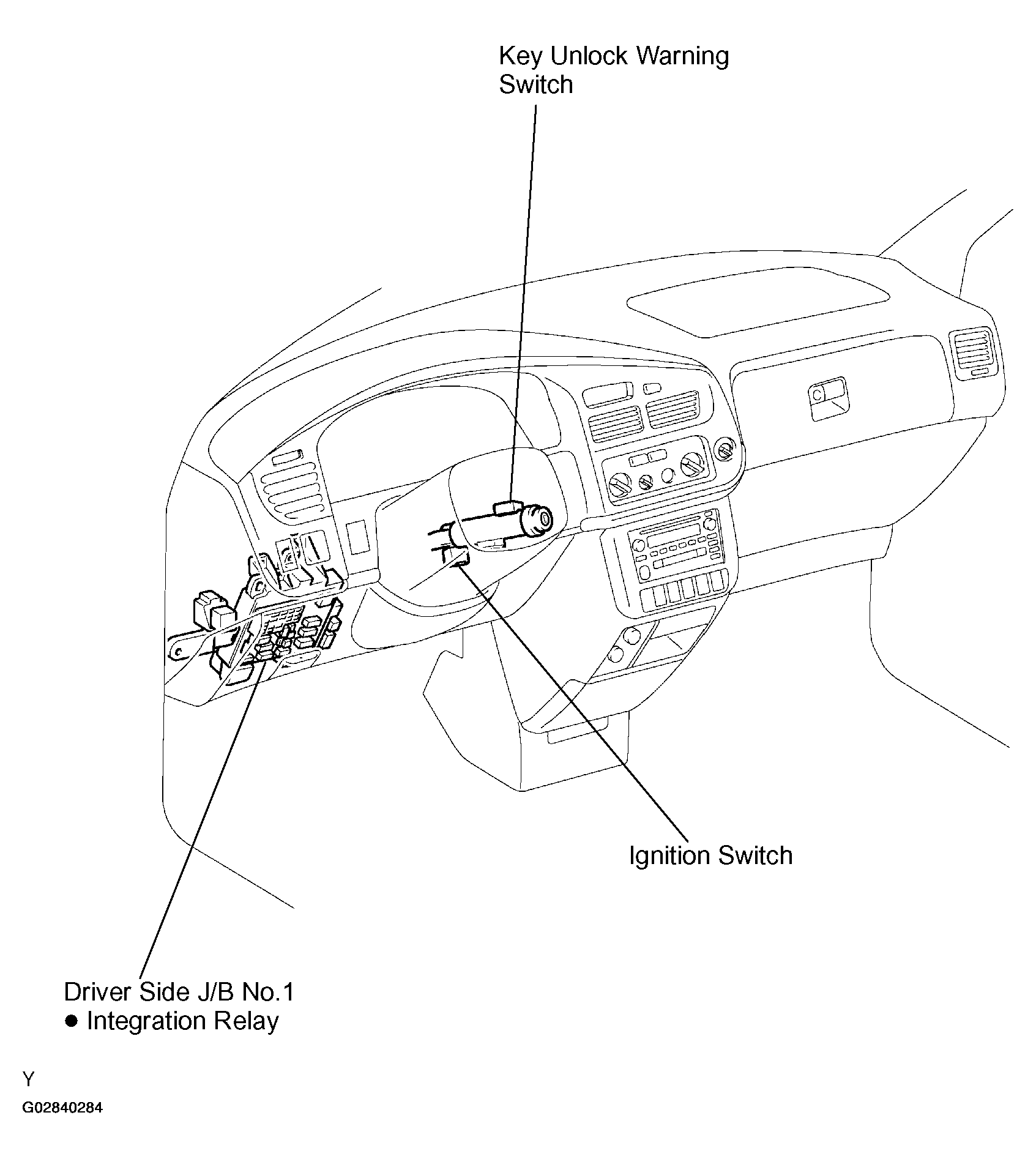

Fig 1: Identifying Ignition Switch & Key Unlock Warning Switch
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
