Power Slide Door Control System: Inspection

  1. INSPECT POWER SLIDE DOOR MAIN SWITCH CONTINUITY
    Fig 1: Identifying Power Slide Door Main Switch Terminals
    G02840441Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    POWER SLIDE DOOR MAIN SWITCH CONTINUITY REFERENCE

    Switch Position Tester Connection Specified Condition
    Switch ON 1 - 3 Continuity
    Switch OFF 1 - 3 No Continuity
    Illumination Circuit 4 - 5 Continuity

    If continuity is not as specified, replace the switch.

  2. INSPECT POWER SLIDE DOOR RH SIDE CONTROL FRONT SWITCH CONTINUITY
    Fig 2: Identifying Power Slide Door RH Side Control Front Switch Terminals
    G02840442Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    POWER SLIDE DOOR RH SIDE CONTROL FRONT SWITCH CONTINUITY REFERENCE

    Switch Position Tester Connection Specified Condition
    Switch ON 5 - 8 Continuity
    Switch OFF 5 - 8 No Continuity
    Illumination Circuit 2 - 6 Continuity

    If continuity is not as specified, replace the switch.

  3. INSPECT POWER SLIDE DOOR LH SIDE CONTROL FRONT SWITCH CONTINUITY
    Fig 3: Identifying Power Slide Door LH Side Control Front Switch Terminals
    G02840443Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    POWER SLIDE DOOR LH SIDE CONTROL FRONT SWITCH CONTINUITY REFERENCE

    Switch Position Tester Connection Specified Condition
    Switch ON 3 - 6 Continuity
    Switch OFF 3 - 6 No Continuity
    Illumination Circuit 1 - 4 Continuity

    If continuity is not as specified, replace the switch.

  4. INSPECT POWER SLIDE DOOR CONTROL SWITCH CONTINUITY
    Fig 4: Identifying Power Slide Door Control Switch Terminals
    G02840444Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    POWER SLIDE DOOR CONTROL SWITCH CONTINUITY REFERENCE

    Switch Position Tester Connection Specified Condition
    Switch ON 1 - 5 Continuity
    Switch OFF 1 - 5 No Continuity
    Illumination Circuit 2 - 4 Continuity

    If continuity is not as specified, replace the switch.

  5. INSPECT SLIDE DOOR LOCK RELEASE ACTUATOR OPERATION
    Fig 5: Inspecting Slide Door Lock Release Actuator Operation
    G02840445Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Connect the positive (+) lead from the battery to terminal 2 and the negative (-) lead to terminal 1, and check the door lock release link moves to release position.

  6. INSPECT LATCH SWITCH CONTINUITY

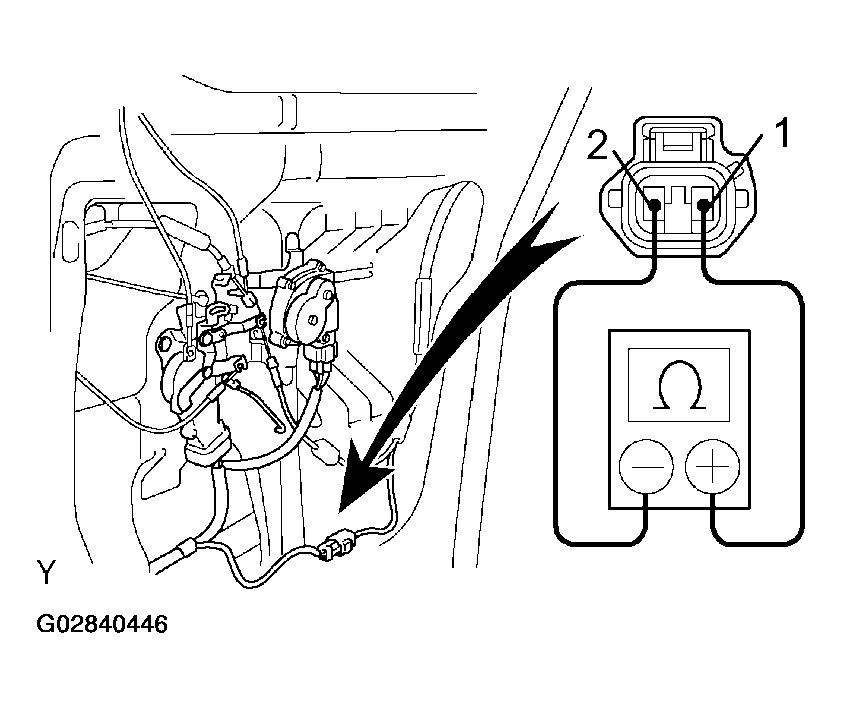

    Fig 6: Inspecting Latch Switch Continuity
    G02840446Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    LATCH SWITCH CONTINUITY REFERENCE

    Slide Door Position Tester Connection Specified Condition
    Open 1 - 2 No Continuity
    Closed 1 - 2 Continuity

    If continuity is not as specified, replace the switch.

  7. INSPECT FUEL LID COURTESY SWITCH CONTINUITY
    Fig 7: Inspecting Fuel Lid Courtesy Switch Continuity
    G02840447Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Check that continuity exists between terminal 1 and terminal 2 with the switch ON (switch pin pushed).
    2. Check that no continuity exists between terminal and terminal 2 with the switch OFF (switch pin released).

      If continuity is not as specified, replace the switch.
