Abs Actuator: Removal

Remove Air Cleaner Assembly
Disconnect Brake Lines
Using SST, disconnect the 6 brake lines from the ABS actuator.

SST 09023-00100, 09023-38200

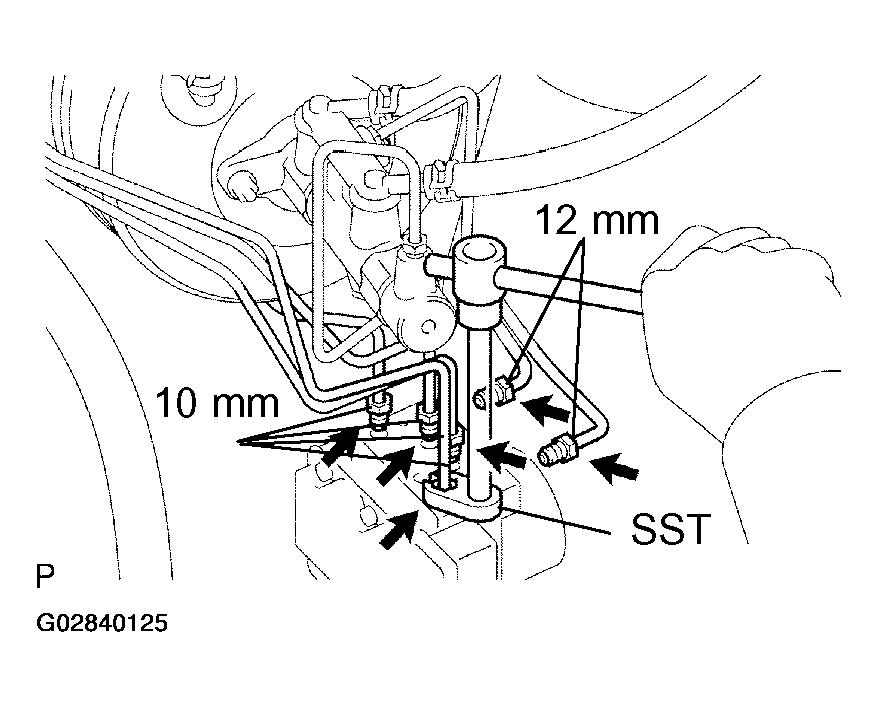

Fig 1: Disconnecting Brake Lines From ABS Actuator
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torque: 10 mm nut: 15.2 N.m (155 kgf.cm, 11 ft.lbf)

12 mm nut: 19.6 N.m (200 kgf.cm, 14.5 ft.lbf)
Remove ABS Actuator
1. Disconnect the connector.
2. Remove the 3 nuts and ABS actuator assembly.
3. Remove the 4 nuts and bracket.
  Torque: 12.7 N.m (130 kgf.cm, 9 ft.lbf)
  NOTE:
  - Do not drop an actuator.
  - If you drop an actuator, do not assemble it into a vehicle
